CSVT50 - 2"
UKAS
Certificate type
Shallow Sump Cast Iron Floor Gully To Suit Harmer 4" NPSM Gratings

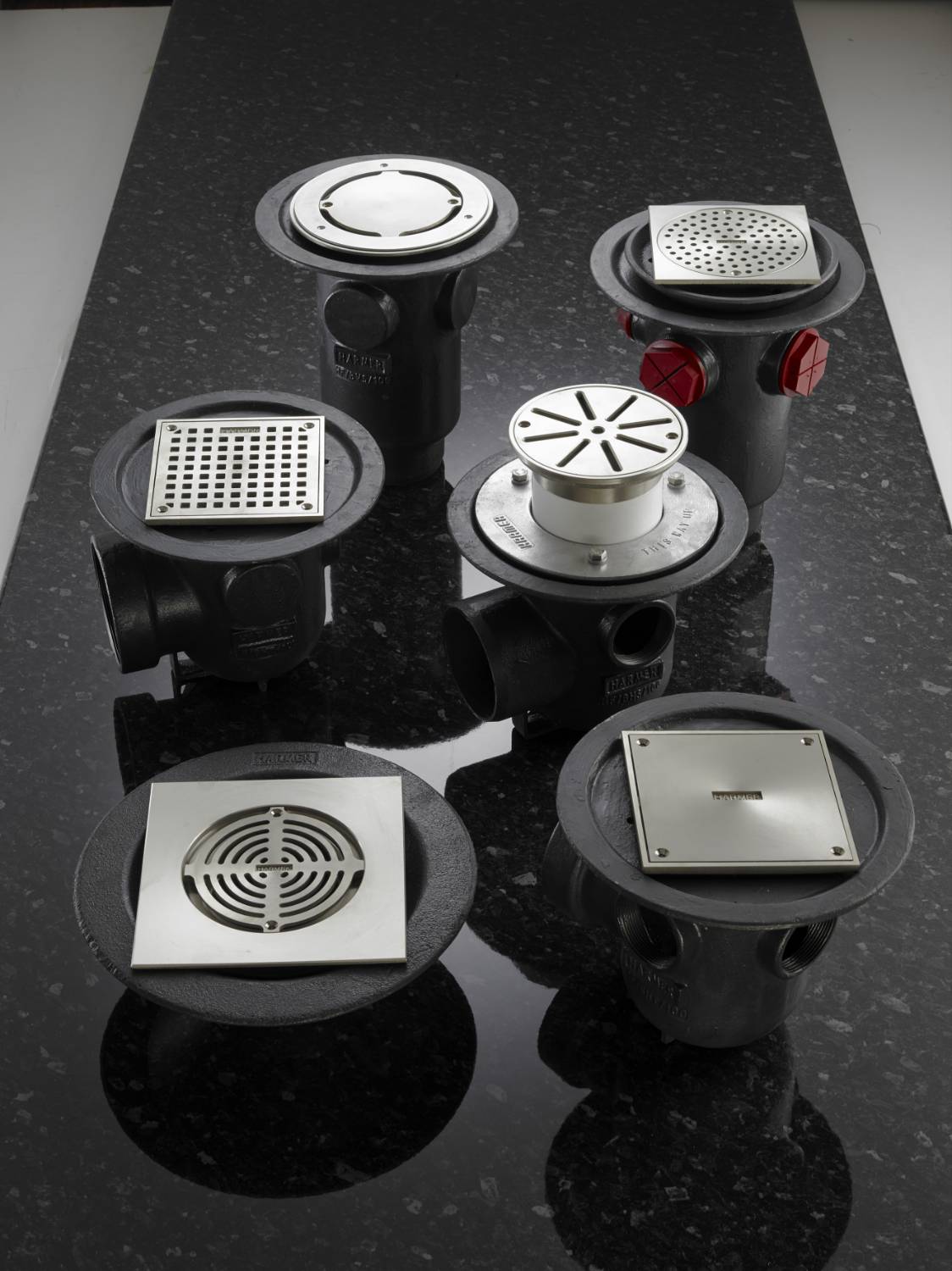

The high quality cast iron, trapped or untrapped floor outlet range, featuring shallow, medium and deep sump bodies with vertical or horizontal outlets, and a vast range of grate and bezel options for all many floor applications
A cast iron, shallow sump floor outlet. Harmer Cast Iron Shallow Sump Floor Drain bodies are available with either a BSP threaded or spigot outlet for direct connection to pipework.
Harmer Cast Iron gullies are coated internally and externally with a dark grey 2-part epoxy coating. This is in compliance to Class 1 fire classification BS 476: Part 7:1997, Surface spread of flame. Smoke and Toxicity test to Part 2, Annex 1 & Annex 2 of fire test procedure code, IMO Resolution MSC61(67)
Features and Benefits:
Material | Cast iron |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Product range |
Standard | To BS EN 1253-1. |
Body | |
Configuration | Bell-trapped, with grating. |
Material | Cast iron. |
Cover or grating | |
Cover or grating type | Manufacturer guidanceConsult manufacturer and insert requirements. |
Outlet | Vertical. |
Load class (minimum) | K 3.L 15.M 125. |
Integral accessories | Threaded spigot adaptor.Coupling. |
NominalSize | 2" BSP. |
Contains Red List materials | No |
Material | Cast iron |
Recyclability | 100% |
Expected Life | 60 year |
Platform | Compatible | Version |
---|---|---|
- | 1 |
