Harmer Two Way Cast Iron Roof Outlet

Verified by manufacturer 19 days ago

CTW2/RC - 2" BSP Threaded

Alumasc Water Management Solutions Variant:
Third party certifications:
  • UKAS

    UKAS

    Certificate type

Cast Iron Two Way Roof Outlet

Jump to:
+44 (0)1536 383810 Website

Application

For use in a parapet wall construction. Suitable for use in balcony installations

Description

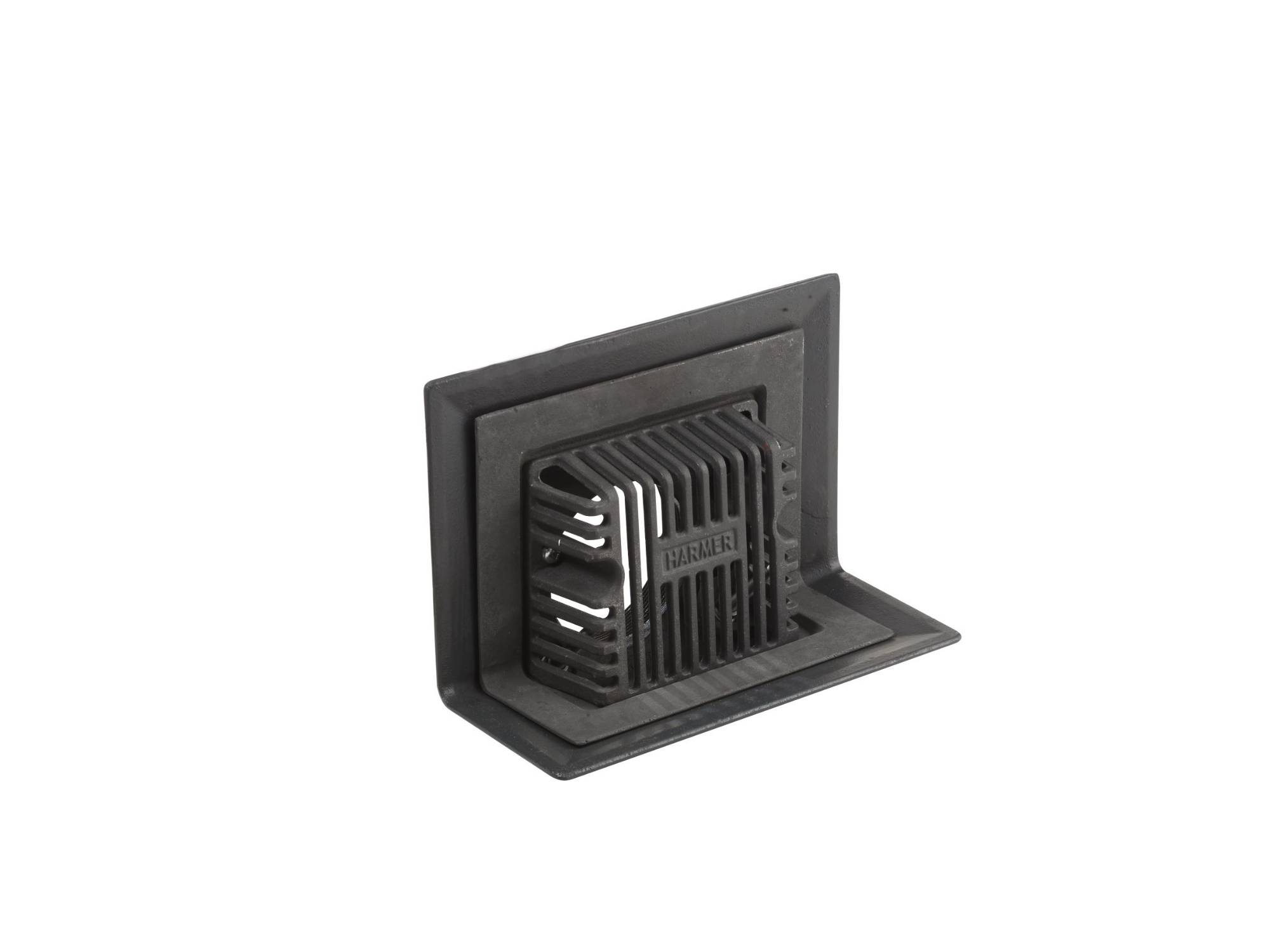

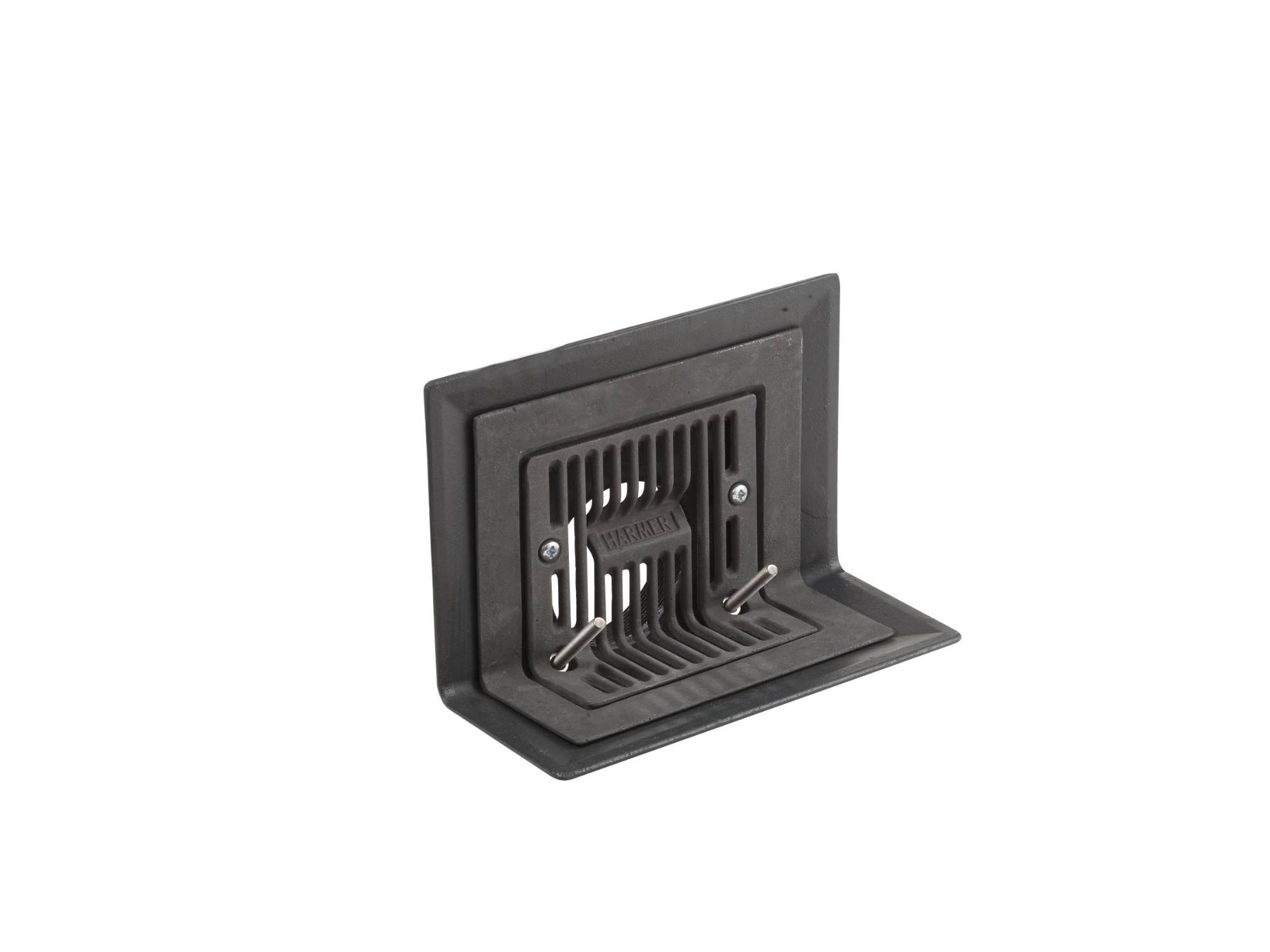

A range of unobtrusive two-way cast iron roof outlets.


Features and Benefits:


  • Expected life in excess of 60 years
  • Can be used vertically or horizontally for connecting to 50, 75 and 100 mm pipework
  • Available with parapet downspouts

General information

Color

Black

Grey

Finish

Zinc plated

Material

Cast iron

Uniclass

Pr_65_50_35_37 Gravity rainwater outletsPrimary

CAWS

R10/26 Proprietary rainwater outlets

R10/365 Proprietary rainwater outlets

Product range

Harmer Building Drainage / Cast Iron Roof Outlets

Specification data - Gravity rainwater outlets

Roof construction

-

Form

Timber, cast and metal deck.

Material

Cast iron.

Grating

Flat.

Spigots

Threaded.

Integral accessories

Clamping ring and nut/bolt.

Standards

To BS EN 12056:2000.

Flowrate

0.7 L/s.

Fire rating (to BS EN 13501)

A2.

Finish and colour

Sherardized zinc coating, black/ grey.

Outlet

Two-way.

NominalSize

2".

Accessories

None.

Parapet downspout.

Sustainability data

Contains Red List materials

No

Material

Cast iron

Recyclability

100%

Expected Life

60 year

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

UKAS

UKAS

ISO 14001 - Burton Latimer site

UKAS

UKAS

ISO 9001 - Burton Latimer site

Literature

Harmer Roof Drainage

Harmer Roof Drainage
