Head Restraints - Slip Ties

Verified by manufacturer 6 days ago

VIR Internal head restraints, slotted

Vista Engineering Ltd Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Range of slip ties generally used to restrain the tops of freestanding walls by tying them securely to an overhead structure, thus preventing sideways movement.

Jump to:
+44 (0)1663 736700 Website

Application

Generally used to restrain the tops of freestanding walls by tying them securely to an overhead structure, thus preventing sideways movement.

Description

Range of slip ties generally used to restrain the tops of freestanding walls by tying them securely to an overhead structure, thus preventing sideways movement.


Features and benefits:

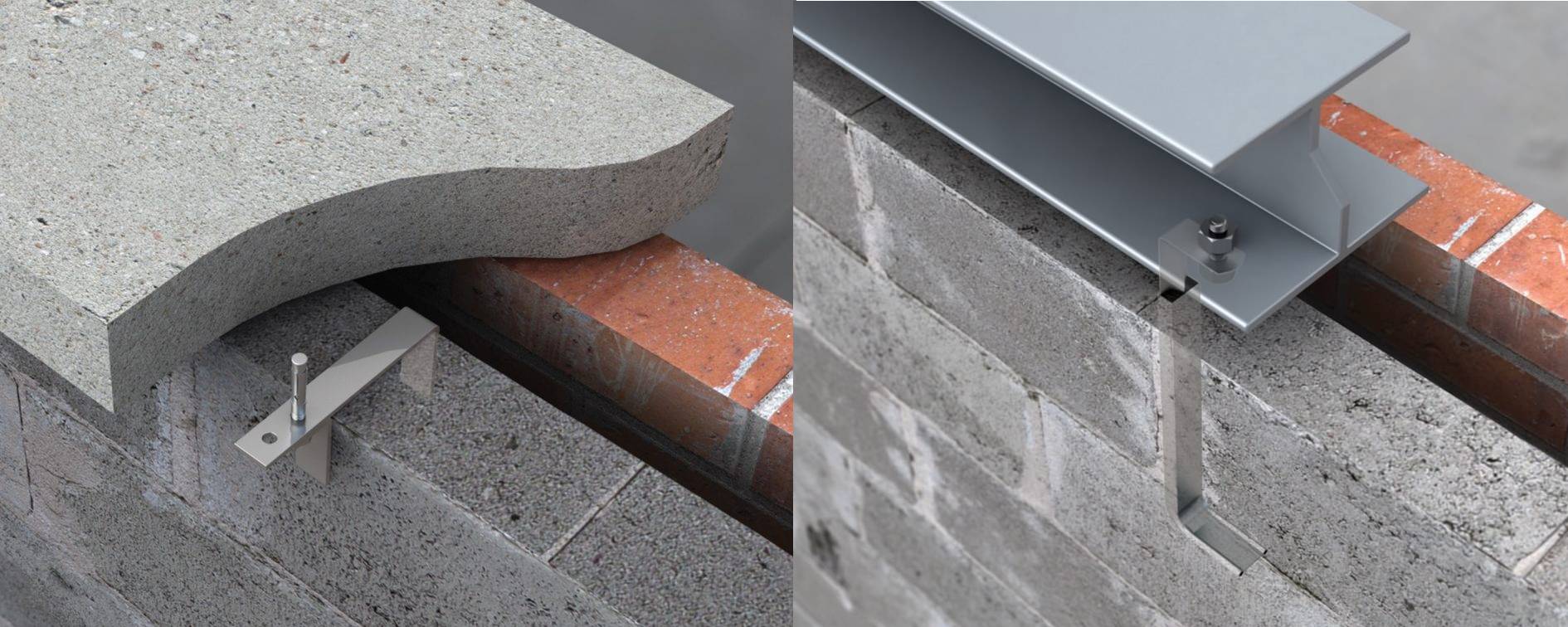

  • The VIR / VIRH head restraint is designed to resist lateral movement in wall heads, restraining them to structural soffits whilst allowing vertical movement (for instance, to accommodate beam deflection).
  • The VHR is a very simple, economical head restraint product. Twice holed to accommodate 100 or 140 mm walls. Vertical movement can be accommodated only by allowing clearance between the top of the blockwork panel and the underside of the restraint angle. Can also be manufactured to fit 215 mm blockwork.
  • Manufactured from grade 304 stainless steel.
  • Non combustible (as defined in the national Building Regulations).
  • Excellent corrosion resistance and a service life of not less than 60 years.


General information

Color

Silver

Material

Stainless steel

Guidance for specification option:

Grade 304.

Uniclass

Pr_20_85_84_36 Head restraint slip tiesPrimary

CAWS

F30/26 Wall ties

F30/251 Wall head restraint slip ties

Specification data - Head restraint slip ties

Material

Grade 304 stainless steel.

Length

215 mm.

End types

Asymmetrical flat plate for mortar bedding, slotted.

Design embedment length (minimum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Additional requirements

-

Mortar joint thickness (minimum)

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Shear load capacity

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer for details.

Type

Internal head restraint.

Guidance for specification option:

Designed to resist lateral movement in wall heads, restraining them to structural soffits whilst allowing vertical movement (for instance, to accommodate beam deflection).

Supplied in boxes of 50.

Fixing

6 mm set screws.

8 mm set screws.

Through bolts.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Wall Ties Brochure

Wall Ties Brochure

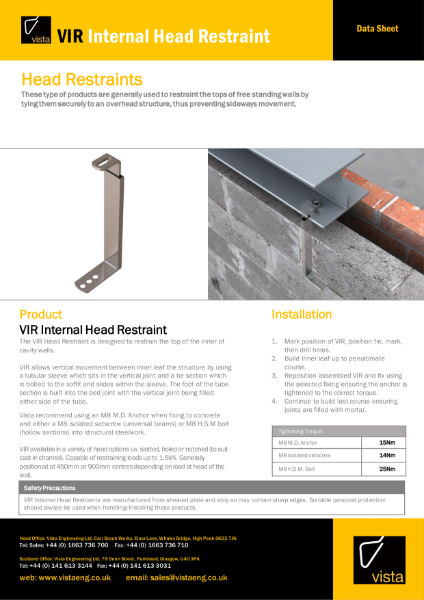

VIR Internal Head Restraint Data Sheet

VIR Internal Head Restraint Data Sheet

VHR Head Restraint Data Sheet

VHR Head Restraint Data Sheet
