Healthcare Sink Double Bowl Single Drainer

Verified by manufacturer 2 months ago

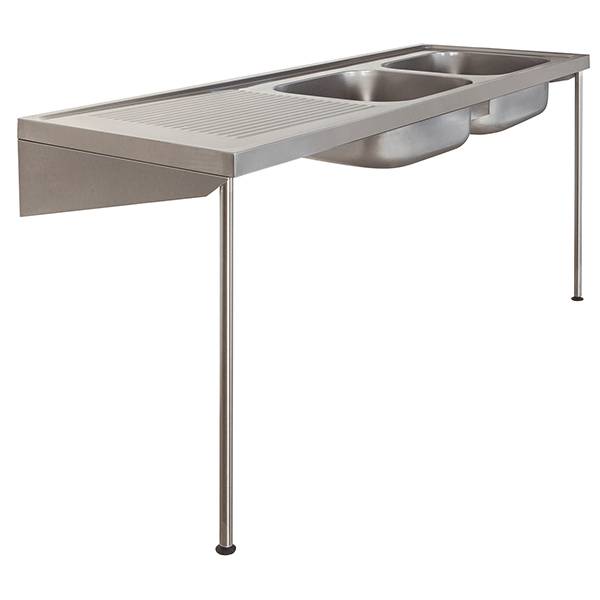

VPHS18DBLH double bowl, left hand drainer

Vantage Products Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Healthcare double bowl/ single drainer sink. Complies with HBN00-10 Part C (previously HTM64).

Jump to:
BOS
+44 (0)1327313130 Website

Application

Hospitals and healthcare.

Description

Healthcare double bowl/ single drainer sink.


Features and benefits:

  • Complies with HBN00-10 Part C (previously HTM64).
  • No overflow or tap holes, supplied with a 38 mm (1½") BSP flush grated waste fitting.
  • Edges are rimmed and turned down all around.
  • Wall mounted, supplied with a cantilever bracket as standard with optional front support legs.

General information

Color

Silver

Material

Stainless steel

Shape

Rectangle

Length

1800 mm

Width

600 mm

Height

397 mm

Uniclass

Pr_40_20_96_36 Healthcare domestic service sinksPrimary

CAWS

N13/25 Sinks

N13/331 Sinks

Product range

Healthcare Equipment

Specification data - Healthcare domestic service sinks

Standards

Complies with HBN00-10 Part C (previously HTM64).

Accessories

None.

Front leg set.

VPPT38 'P' trap.

Guidance for specification option:

38 mm (1½").

VPBT38 bottle trap.

Guidance for specification option:

38 mm (1½").

Dimensions

1800 x 600 mm.

Guidance for specification option:

Bowl size: 500 x 400 mm.

Material

1.2 mm-thick 1.4301 (304) stainless steel.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Quality Management System Certificate of Registration

Literature

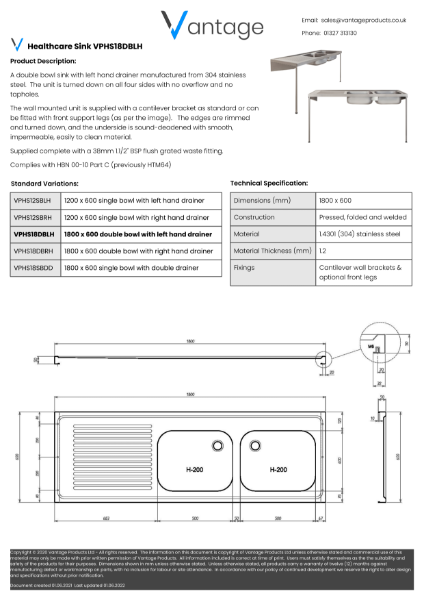

Product Data Sheet - VPHS18DBLH

Product Data Sheet - VPHS18DBLH

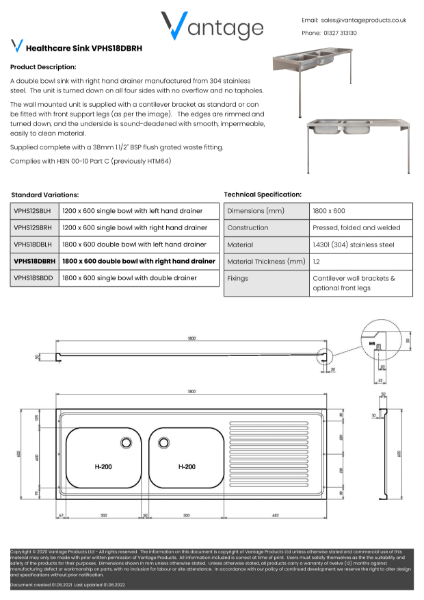

Product Data Sheet - VPHS18DBRH

Product Data Sheet - VPHS18DBRH

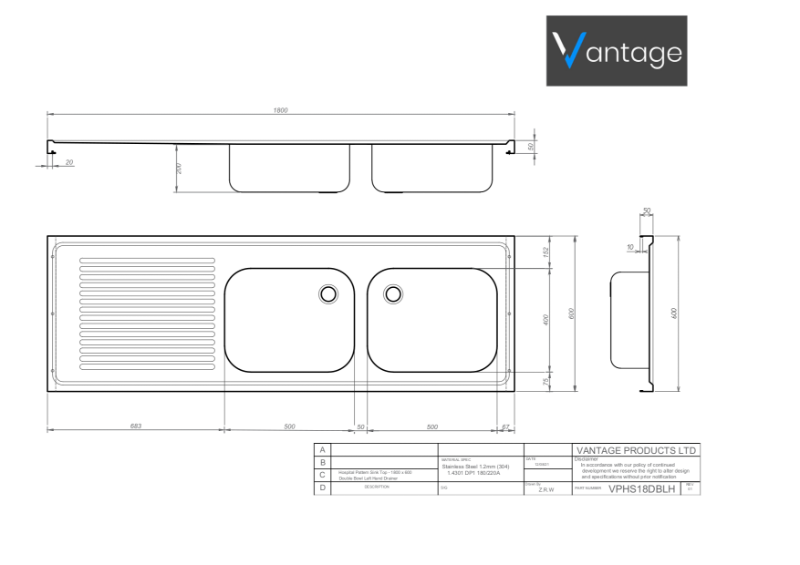

Drawing - VPHS18DBLH

Drawing - VPHS18DBLH

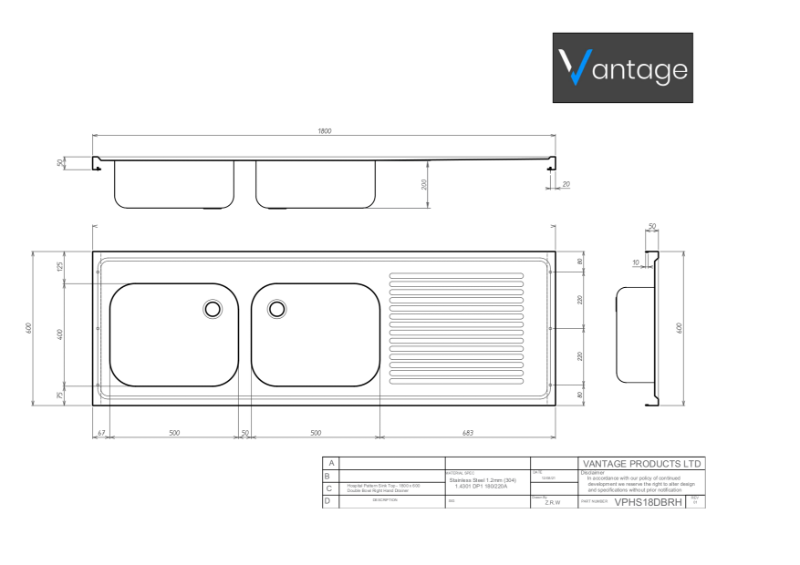

Drawing - VPHS18DBRH

Drawing - VPHS18DBRH
