Verified by manufacturer 1 month ago
QA1- 90 degree square nosing
Made in Britain
Certificate type
Alcumus SafeSupplier
Certificate type
ISO 14001 Environmental Management Systems
Certificate type

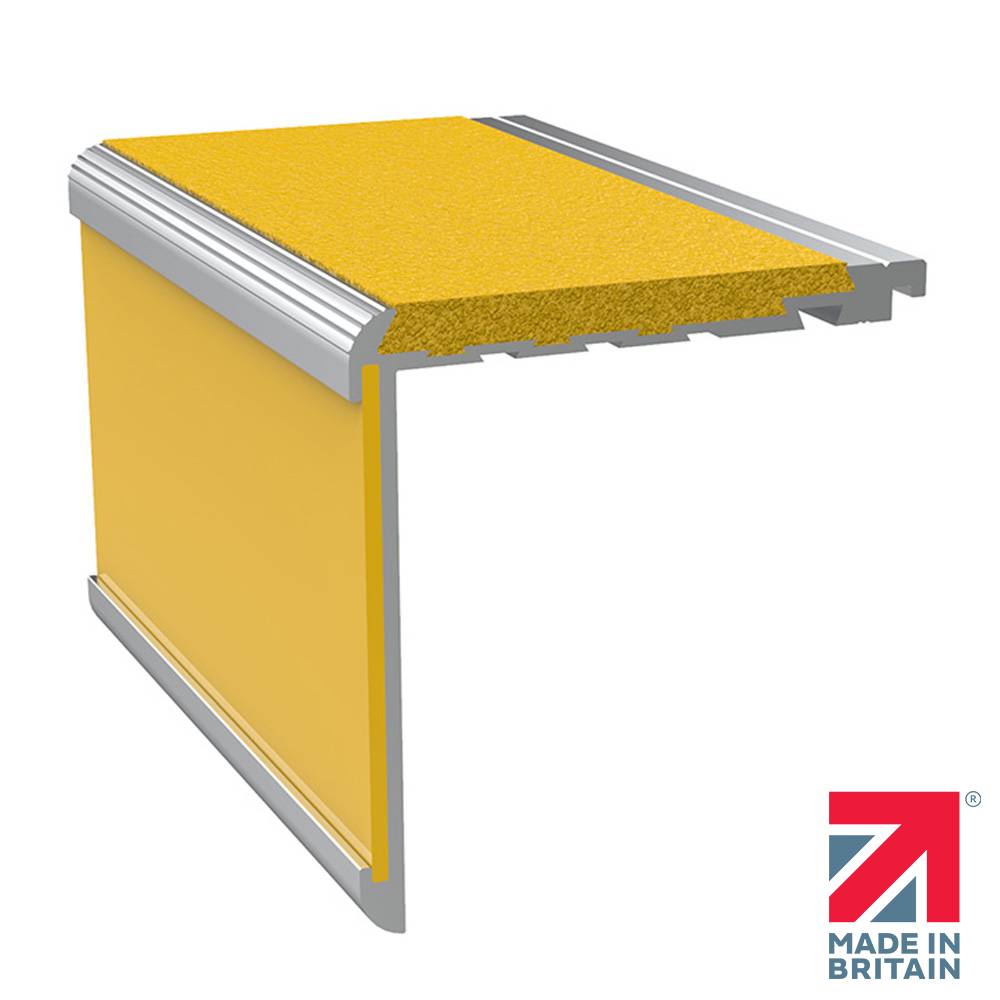

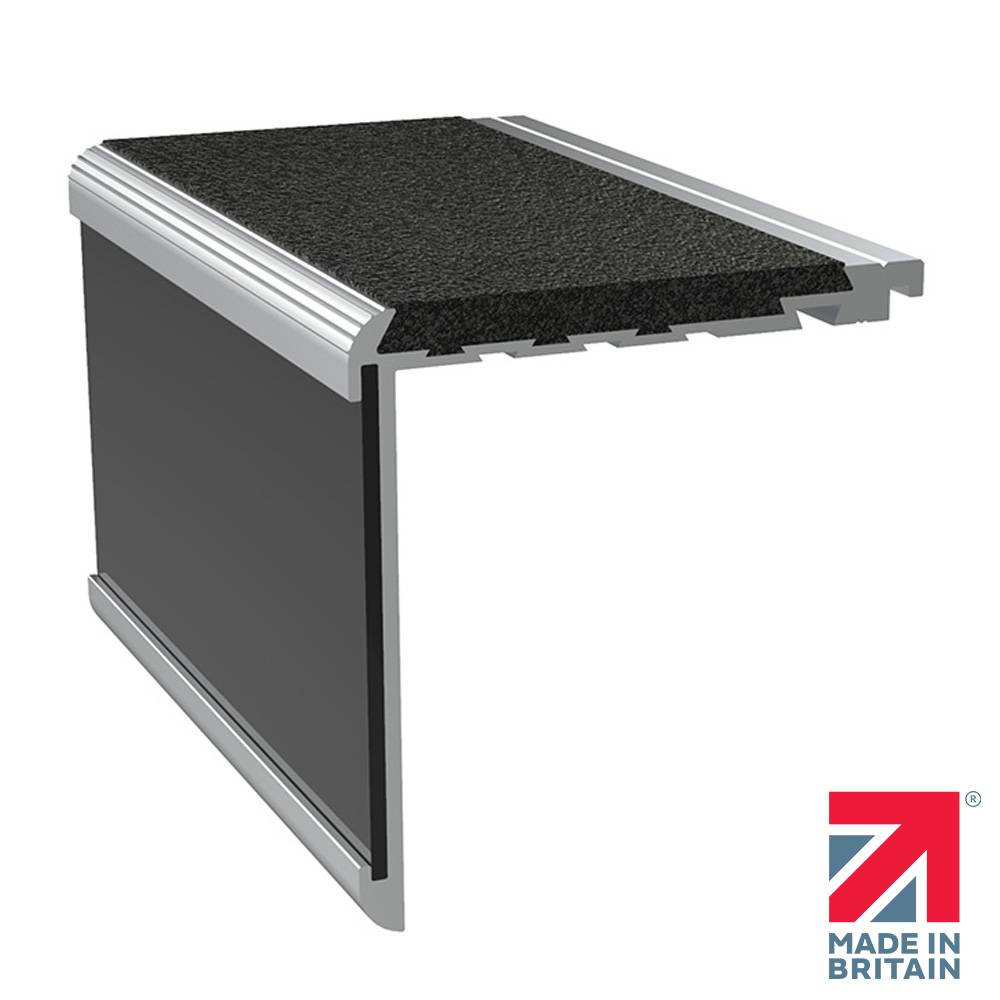

Carborundum filled heavy duty stair nosing with a 55 x 55 mm coloured riser and tread surface to help with Building Regulations and British Standards compliance.
Q1 and QA2 Heavy Duty Carborundum Stair nosings are designed to help with Building Regulations (Document M & K) and British Standards requirements by providing a high contrast 55 mm riser and 55 mm tread surface with a heavy duty anti-slip finish.
Manufactured in the UK from aluminium with a coloured PVC riser strip and Carbigrip carborundum anti-slip tread infill, which consists of a resin and abrasive mineral mixture.
QA1 and QA2 can be recessed into a step edge or combined with QA5 – Modular Profile Ramp for a stand-alone Building Regulations compliant nosing. QA1 or QA2 can also be combined with the QA4 tread extender, in order to create a full heavy duty ant-slip stair tread cover.
Features and benefits:
Color | Yellow Black White Other Guidance for specification option: Bespoke colours also available. |
Finish | Anti-slip Mill Satin |
Material | Aluminium PVC Carborundum |
Shape | Other |
Length | Bespoke 3000 mm Guidance for specification option: Maximum length. Longer lengths possible on request. |

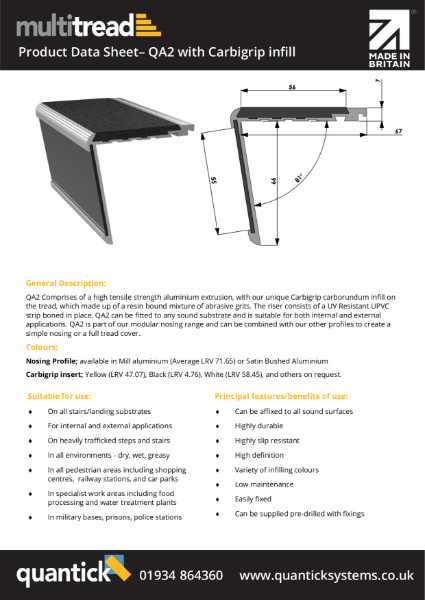

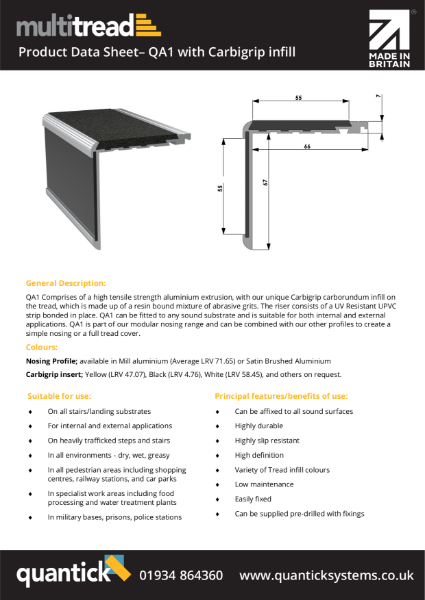

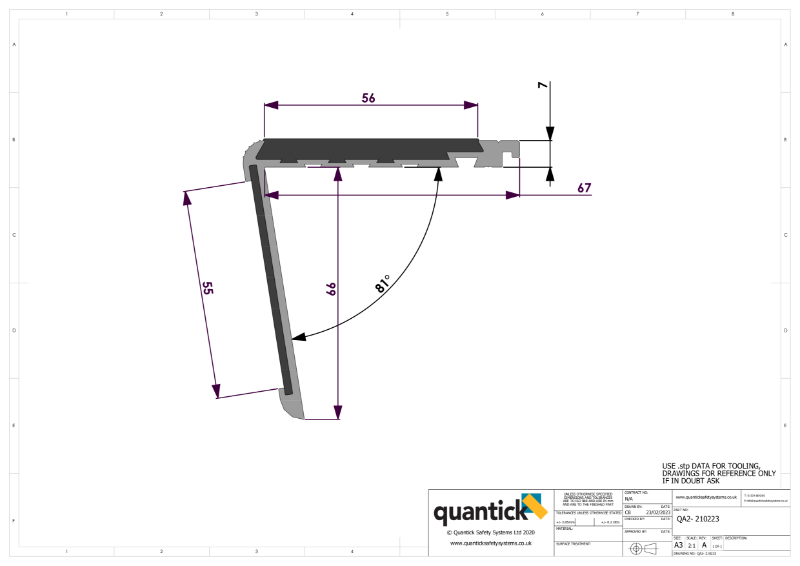

Width | 72 mm Guidance for specification option: QA1- 90 degree square nosing. 72.7 mm Guidance for specification option: QA2- Rake back nosing. 82.5 mm Guidance for specification option: QA4- Tread Extender. 37.8 mm Guidance for specification option: QA5- Ramped edge. |
Height | 74 mm Guidance for specification option: QA1- 90 degree square nosing. 73.2 mm Guidance for specification option: QA2- Rake back nosing. 7 mm Guidance for specification option: QA4- Tread Extender and QA5- Ramped edge. |

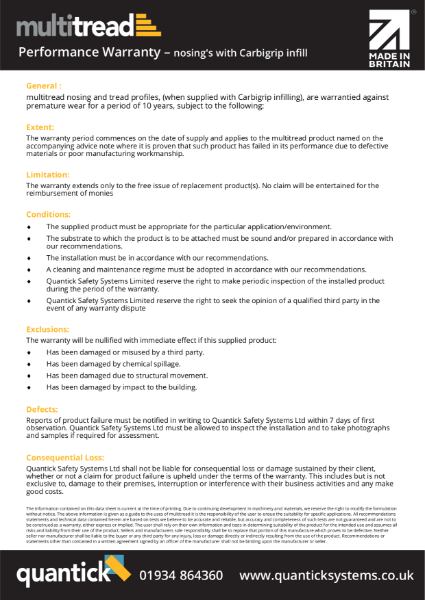

Warranty description | Ten year Guidance for specification option: Guarantee: 10 years against premature wear. |
Uniclass | |
CAWS | M51/550 Stair nosings and trims M50/750 Stair nosings and trims M50/75 Stair nosings and trims L30/590 Applied stair nosings L30/30 Proprietary stairs L30/310 Proprietary stairs |
Profile | Square. |
Base section | |
Material | Aluminium. |
Finish | Mill.Satin. |
Size | |

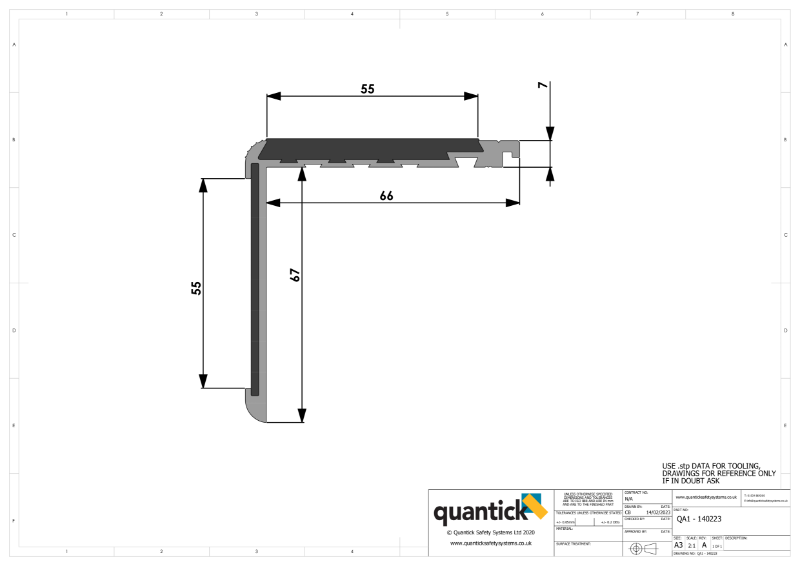

Rise x going | 74 x 72 mm. |
Gauge | 7 mm. |
Inserts | |
Material | PVC and carborundum. |
Colour | Yellow.Black.White.Bespoke.Guidance for specification option: Consult manufacturer and insert requirements. |

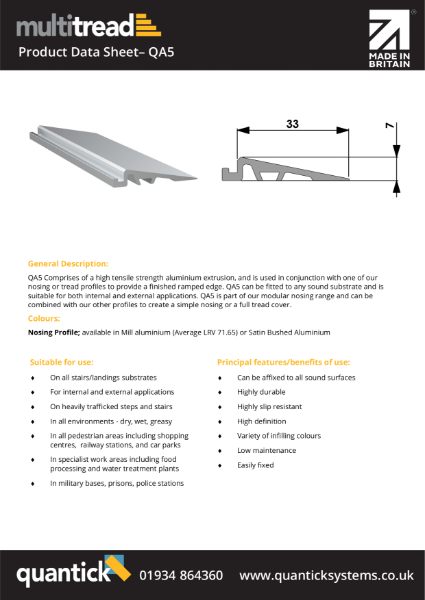

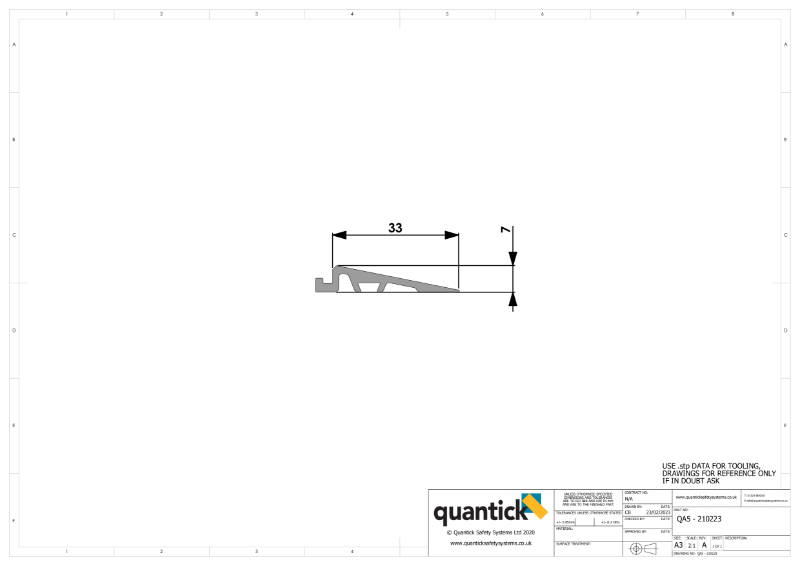

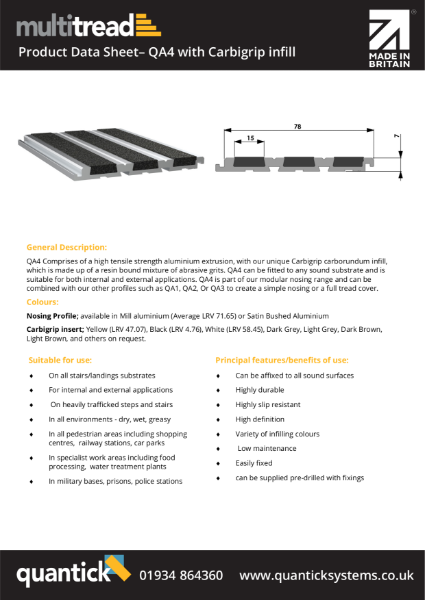

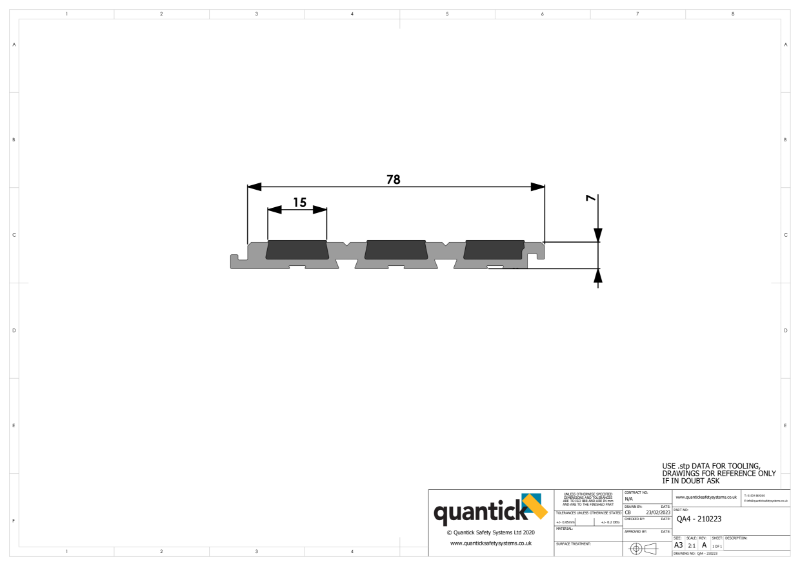

Accessories | Not required.QA4- Tread Extender.Guidance for specification option: 82.5 x 7 mm (W x H). Pair with QA1/QA2 to create a heavy-duty full tread cover. QA5- Ramped edge.Guidance for specification option: 7 mm thick down to 0.5 mm with a cover of 35 mm. Combine with QA1/ QA2 to create a nosing or tread cover to match your dimensions. Provides a smooth tapered back edge in order to reduce the risk of tripping. |
Slip resistance | PTV test value: 86 wet. |

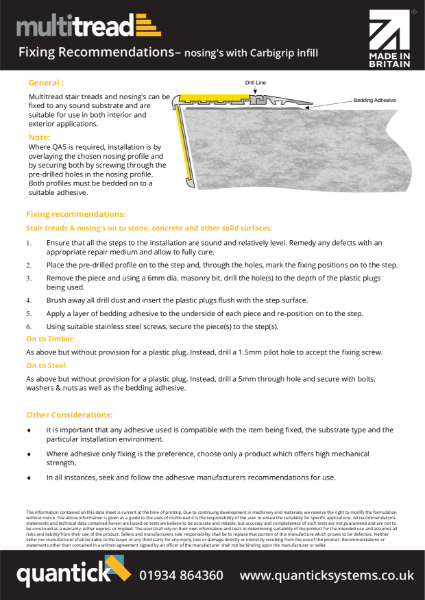

Options | Pre-drilled for fixing. Undrilled. |
Length | Manufacturer guidanceBespoke lengths up to 3000 mm. Longer lengths available on request. Insert requirements or refer to a drawing. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | PVC riser strip and aluminium carrier recyclable |
