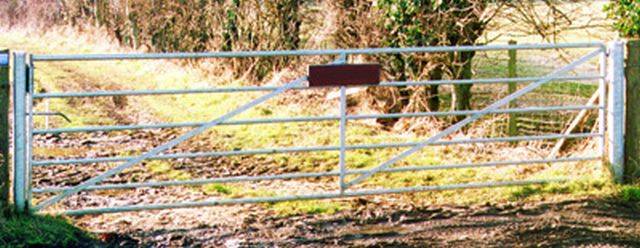

Heavy Metal Field Gates - Metal Agriculture Gates

Verified by manufacturer 5 months ago

Heavy gate, 1200 mm wide (440800)

Jacksons Fencing Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Metal gates for use in agricultural sites and demarcation.

Jump to:
0800 408 4757 Website

Application

For agricultural purposes, fields, farms and rural properties.

Description

Metal gates for use in agricultural sites and demarcation, manufactured from high quality materials for long lasting use.


Features and benefits:

  • Hot-dip galvanized finish as standard to BS EN 1461 and can also be powder coated to BS EN 13438.
  • 25-year guarantee.
  • Pad-lockable sliding latch.
  • Adjustable bottom hinge.
  • Box section hang and slam stiles.
  • Six-bar gate with extra strong tubular rails.

General information

Color

Silver

Other

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Length

3300 mm

3600 mm

4200 mm

4600 mm

1200 mm

Show more

Height

1150 mm

Warranty description

25 year

Uniclass

Pr_30_59_33_12 Carbon steel field gate leavesPrimary

CAWS

Q40/40 Steel

Q40/45 Gates

Q40/570 Gates

Specification data - Carbon steel field gate leaves

Standard

BS EN 1461, BS EN 13438.

Dimensions

1150 x 1200 mm.

Guidance for specification option:

Height x width.

Pattern

Six bar.

Steel sections

-

Frame

Box section hang and slam stiles of 50 x 25 mm.

Infill

Standard.

With welded mesh cladding to lower part.

Guidance for specification option:

Welded mesh specification is heavy 600 mm high 50 x 50 x 4 mm galvanized, fitted to lower part of gate.

Braces

Bracing on front of gate.

Finish as delivered

-

Applied finish

Hot-dip galvanized.

Guidance for specification option:

To BS EN 1461. Standard.

Powder coated, black.

Guidance for specification option:

To BS EN 13438.

Powder coated, green.

Guidance for specification option:

To BS EN 13438.

Powder coated, other.

Guidance for specification option:

To BS EN 13438. Insert requirements.

Post

Hanging post, 453200.

Guidance for specification option:

89 mm-diameter, 1875 mm-long hanging post for heavy field gates.

Slam post, 453600.

Guidance for specification option:

89 mm-diameter, 1900 mm-long slam post for heavy field gates.

Accessories

None.

Drop bolt (453880).

Guidance for specification option:

Drop bolt.

Loop over catch for pairs of gates (453700).

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
