Helifix CemenTie
Verified by manufacturer 1 month ago

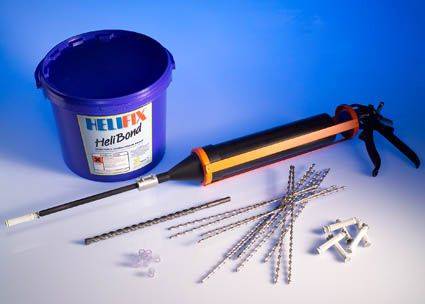

A remedial wall tie system using stainless steel helical ties secured into a grout filled expanding sock in the far leaf.
Application
- Suitable for hollow and/ or thin wall masonry leaves that might not be able to provide a adequate connection, and for buildings over four storeys high.
- Suitable for all environments including coastal.
Description
A remedial wall tie system using stainless steel helical ties secured into a grout filled expanding sock in the far leaf.
Features and benefits:
- Provides a solution to fix into many difficult substrates, e.g. Hollow Clinker Block.
- Uses grade 304 or 316 stainless steel helical ties.
- May be used with a fabric sleeve to accommodate hollow near and far hollow leaves.
- Supplied in packs of 100.
General information
Material | Stainless steel |
Uniclass | |
CAWS | C46/10 Inserting cavity wall ties C46/110 Inserting cavity wall ties |
Product range |
Specification data - Stainless steel expansion ties
Designation | Grade 304 stainless steel. Grade 316 stainless steel. |
Diameter | 6 mm. |
Length | 170 mm. 195 mm. 220 mm. 245 mm. 270 mm. 295 mm. |
Product Reference | CemenTie Helifix CemenTie |
Grout | HeliBond cementitious grout. |
Sustainability data
Material | Stainless steel |
