Helios - Half Height IPS - Integrated Plumbing System

Name: Helios - Half Height IPS - Integrated Plumbing System
Brand: Brookhouse
SKU: mK3fQbZ5XGtktr7eeD7T7V

Verified by manufacturer 4 days ago

MFC

Brookhouse

Third party certifications:

Acclaim Accreditation
Certificate type
Constructionline Gold
Certificate type
CHAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type

A half height integrated plumbing system (IPS) for washrooms.

Jump to:

+44 (0)345 383 0050 Website

Application

IPS solution for:

Education.
Further education.
Higher education.
Unisex washrooms.
Commercial.
Public environments.
Sports and leisure facilities.
Healthcare.

Description

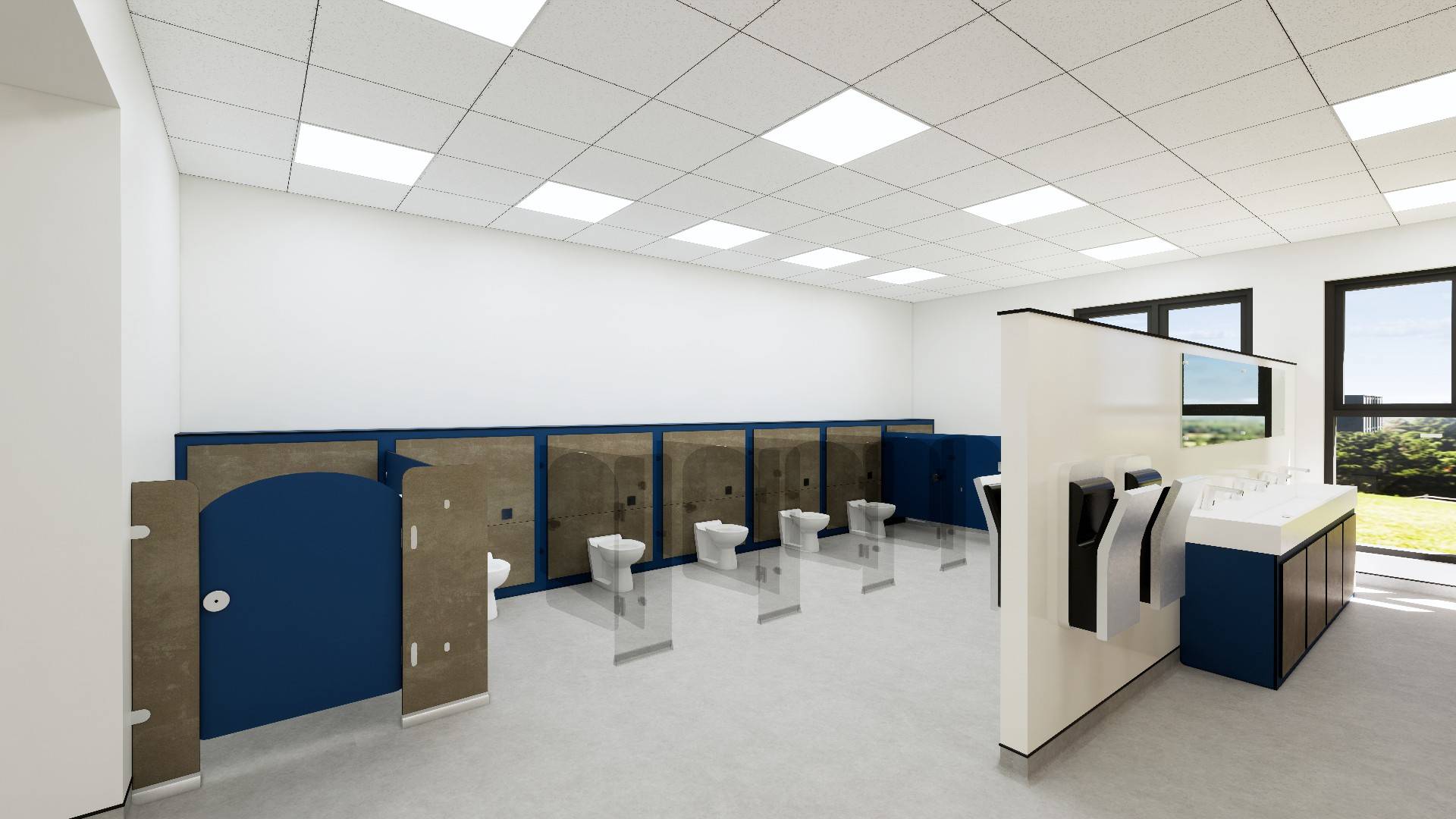

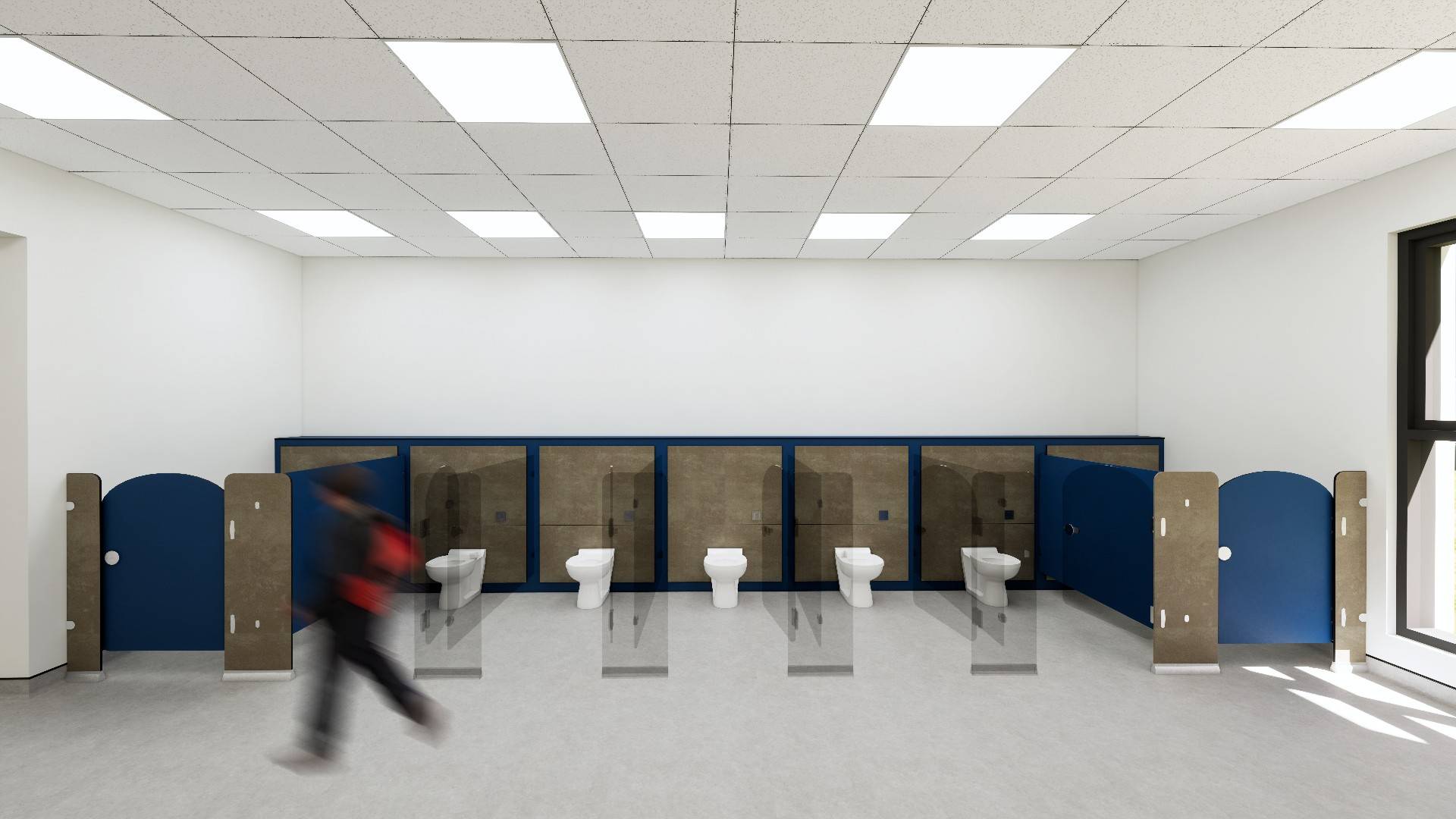

Helios is a half-height integrated plumbing system (IPS) for high-traffic spaces. Brookhouse's washroom-integrated plumbing systems are available in a range of colours and finishes.

Helios is offered in three material choices:

MFC for low-risk vandalism environments in dry settings.
HPL for washrooms with higher usage, these panels offer heat, scratch, and impact resistance.
SGL Solid-grade laminate exhibits exceptional resistance to impact and its surfaces are impermeable to water.

Features and benefits:

Made to measure.
Half-height IPS.
Hygienic, easy to clean and antibacterial.
Longevity.
Durable construction.

General information

Color	White Cream Black Grey Yellow Purple Red Pink Green Blue Brown Show more
Finish	Smooth Wood grain
Material	MFC High pressure laminate (HPL) Solid grade laminate (SGL)
Shape	Rectangle
Length	Bespoke
Width	Bespoke 1000 mm Guidance for specification option: Maximum.
Height	Bespoke 1200 mm Guidance for specification option: Maximum height.
Warranty description	Ten year

Uniclass	Ss_25_25_45_25 Duct and wall panel lining systemsPrimary
CAWS	K32/120 Panel cubicles K32/10 Panel cubicles

Product range	Brookhouse \| Integrated Plumbing System (IPS)

Specification data - Duct and wall panel lining systems

Panels	19 mm Melamine faced chipboard (MFC) boards.
Non-integral finishes	ABS edgings.
Fasteners	Nylon fittings.
Supporting frame	-
Duct panels	Class 3 plywood. Guidance for specification option: Designed for exposure to wet conditions over sustained periods.
Flash gap panels	19 mm Melamine faced chipboard (MFC) boards.
System accessories	Not required. Lift off access panels. Guidance for specification option: As standard. Locking access panels. Side opening hinged and locking access panel. Top opening hinged and locking access panel.

Colour/ Finish	0606 FH Arctic White. 0085 FH White. 0733 FH Hygienic White. 0851 FH Winter White. 0080 FH Black. 0762 FH Neutral Medium Grey. 0007 Dark Grey. 0008 Warm Dark Grey. 0077 FH Charcoal. 0010 FHMango. 2274 FH Lilas Rouge. 0210 FH Intensive Red. 0020 FH Ballerina. 0725 FH Yellowish Green. 0024 FH Vivo 0041 FH Tortuga. 0630 FH Sea Green. 0718 FH Arctic. 0717 FH Atlantic. 0237 FH Gentian Blue. 0023 FH Lamar. 0558 FH White Punto. 0559 FH Punto Pastel Grey. 0328 FH Brushed Aluminium. 0551 FH Whitney. 0419 FH Pinero. 0252 FH Madera. 0538 FH Charles. 0260 FH Arezzo. 0607 FH Loen. 0026 FH Prado Alu Grey. 0027 FH Prado Agate Grey. Show more

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Manufacturing plant location	unit 2, 7 Sheepcotes, Springfield, Chelmsford CM2 5AS, UK
Material	MFC High pressure laminate (HPL) Solid grade laminate (SGL)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	20.9 kg CO₂ eq/unit Self declared Manufacturer guidance of the SGL Panels
Recyclability	100% Manufacturer guidance of the SGL Panels
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 % Manufacturer guidance of the SGL Panels
Expected Life	Ten year
