Heritage Blend - Clay Facing Brick
Verified by manufacturer 17 days ago

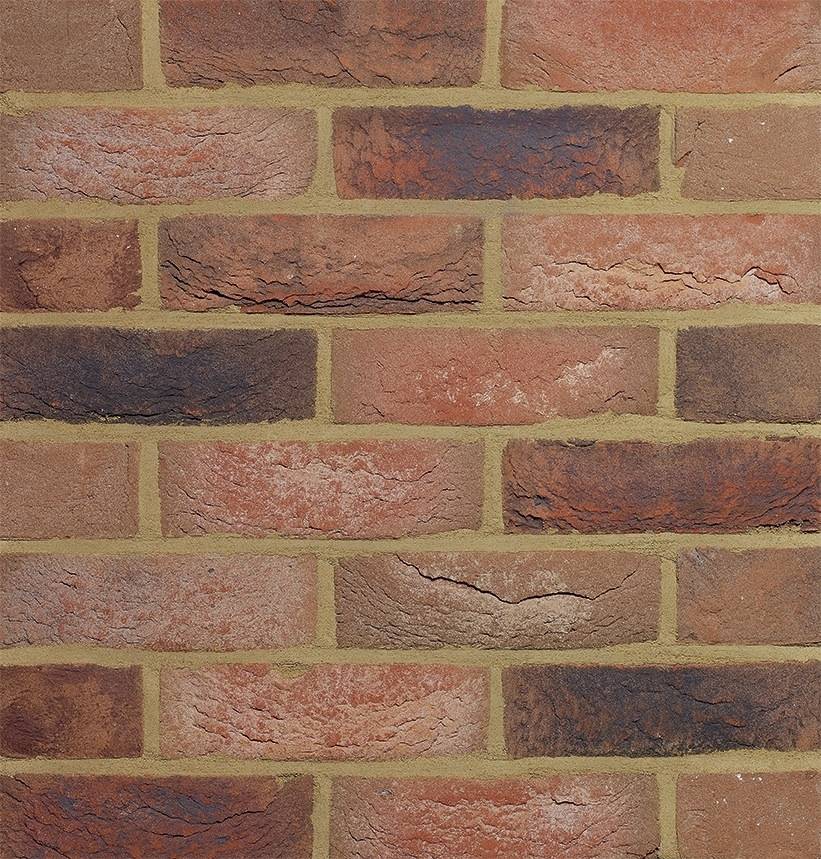

Heritage blend stock brick in red multi colour with creased appearance.
Application
Suitable for external use in conservation areas or for traditional appearance.
Description
Soft mud moulded stock brick in red multi colour with creased for heritage or traditional appearance. Created using an automated process where the clay is placed into moulds by a machine. Stock bricks tend to have softer, more varied edges.
Features and benefits:
- Soft mud moulded stock.
- Creased for heritage appearance.
- Red multi colour.
- Indent at the top of the brick known as a 'frog'.
- Sized inline with BS EN 771-1.
General information
Color | Red Guidance for specification option: Red Multi. Black |
Finish | Creased |
Material | Clay |
Shape | Rectangle |
Length | 215 mm |
Width | 102.5 mm |
Height | 65 mm |
Uniclass | |
CAWS | F10/5 Facing brickwork F10/110 Clay facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Creased. |
Work size (length x width x height) | 215 x 102.5 x 65 mm. |
Tolerances | |
Mean value | T1. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥12 N/mm². |
Category | I. |
Durability designation | F2. |
Density | |
Gross dry | 1700 kg/m³. |
Tolerance | D1. |
Water absorption | ≤15%.Guidance for specification option: Percentage of water overall absorption. |
Configuration | Frogged. |
Thermal conductivity | P=90% 0.69 W/(m⋅K).Guidance for specification option: Thermal Conductivity (W/(m⋅K)) 10,dry,unit value (EN 1745 tabulated: S1) |
Water vapour permeability | Manufacturer's standard.Guidance for specification option: Refer to EN 1745. Consult manufacturer for details. |
Bond strength | Manufacturer's standard.Guidance for specification option: Refer to EN 1052-3. Consult manufacturer for details. |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Dry weight | 2.2 kg. Guidance for specification option: Individual dry brick. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Material | Clay |
Literature

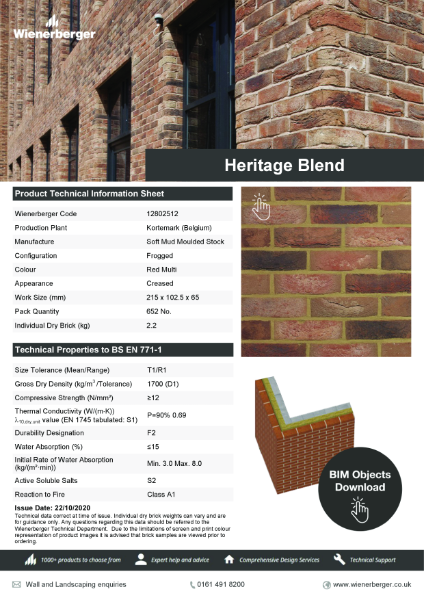

Heritage Blend Data Sheet
