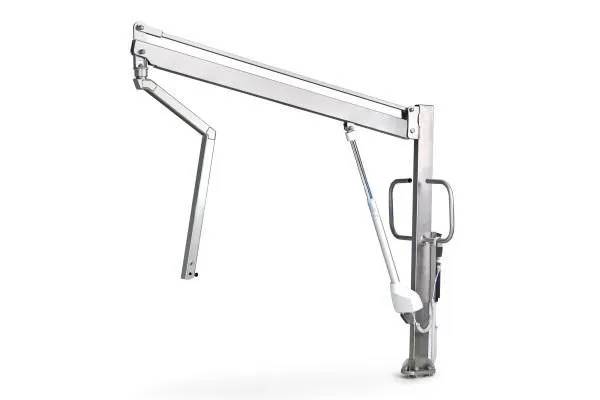

Heron2 Pool Hoist - Durable Stainless Steel Pool Hoist

Verified by manufacturer 3 months ago

CareSpaces by Wealden Rehab

Durable 316L stainless steel pool hoist with a powered patient lift, designed for seated or lying positions.

Jump to:
+44 (0)1634 949988 Website

Application

Primarily designed for the transfer of disabled individuals to and from pools, in seated or lying positions.

Description

Stainless steel pool hoist with a powered patient lift, designed for enhanced pool access in seated or lying positions.


Features and benefits:

  • 316L stainless steel for superior corrosion resistance.
  • Can be fixed to the floor with special socket or with a plate.
  • The hoist is equipped with ergonomic handles and can be freely rotated 360°.
  • Electric lifting system with a removable and rechargeable 24 V battery.
  • Equipped with a double emergency lowering system.
  • Optional 500 mm frame can be applied.

General information

Color

Silver

Finish

Stainless steel

Material

Stainless steel

Shape

Other

Length

1370 mm

Width

1370 mm

Guidance for specification option:

Swing radius.

Height

2270 mm

Warranty description

Two year

Uniclass

Pr_65_80_47_64 Poolside hoistsPrimary

CAWS

N13/490 Hoist systems

Specification data - Poolside hoists

Standard

To UNI EN ISO 10535.

Format

Floor-standing (fixed with socket).

Floor-standing (fixed with plate).

Form

Multiple position.

Frame

-

Material

Stainless steel grade 316L.

Finish

Manufacturer's standard.

Lifting mechanism

-

Capacity

200 kg.

Guidance for specification option:

Safe working load (SWL).

Maximum arm travel

1370 mm.

Guidance for specification option:

Hoist radius.

Lifting travel

Manufacturer's standard.

Guidance for specification option:

Consult manufacturer's literature for surmountable barrier height (dependent on fixing option specified - see Format above).

Note that adding a frame extension will increase the maximum height - see Accessories.

Time of down-lifting with weight

Manufacturer's standard.

Time of uplift with weight

Manufacturer's standard.

Swing Radius

1370 mm.

Operation

Mechanical and electrical.

Guidance for specification option:

  • Remote control: Electric with hand control.
  • Emergency lowering: Mechanical and electrical.
  • Emergency ascent with low battery: Electric.

Seat

-

Type

Shower chair.

Guidance for specification option:

White.

Stretcher.

Guidance for specification option:

Blue.

Restraint

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Colour

Manufacturer's standard.

Guidance for specification option:

See Seat type guidance for details.

Batteries

1 x 2 V d.c.; 2.9 Ah.

Accessories

None.

500 mm frame extension.

Sustainability data

Material

Stainless steel
