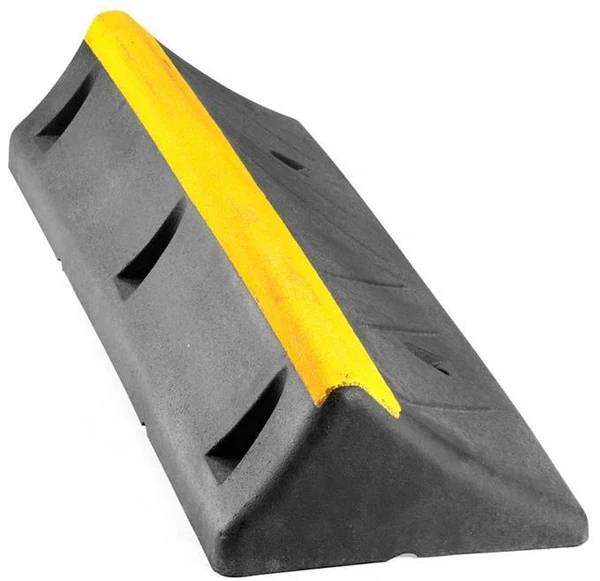

HGV Heavy Duty Wheel Stop

Verified by manufacturer 11 days ago

Pittman™

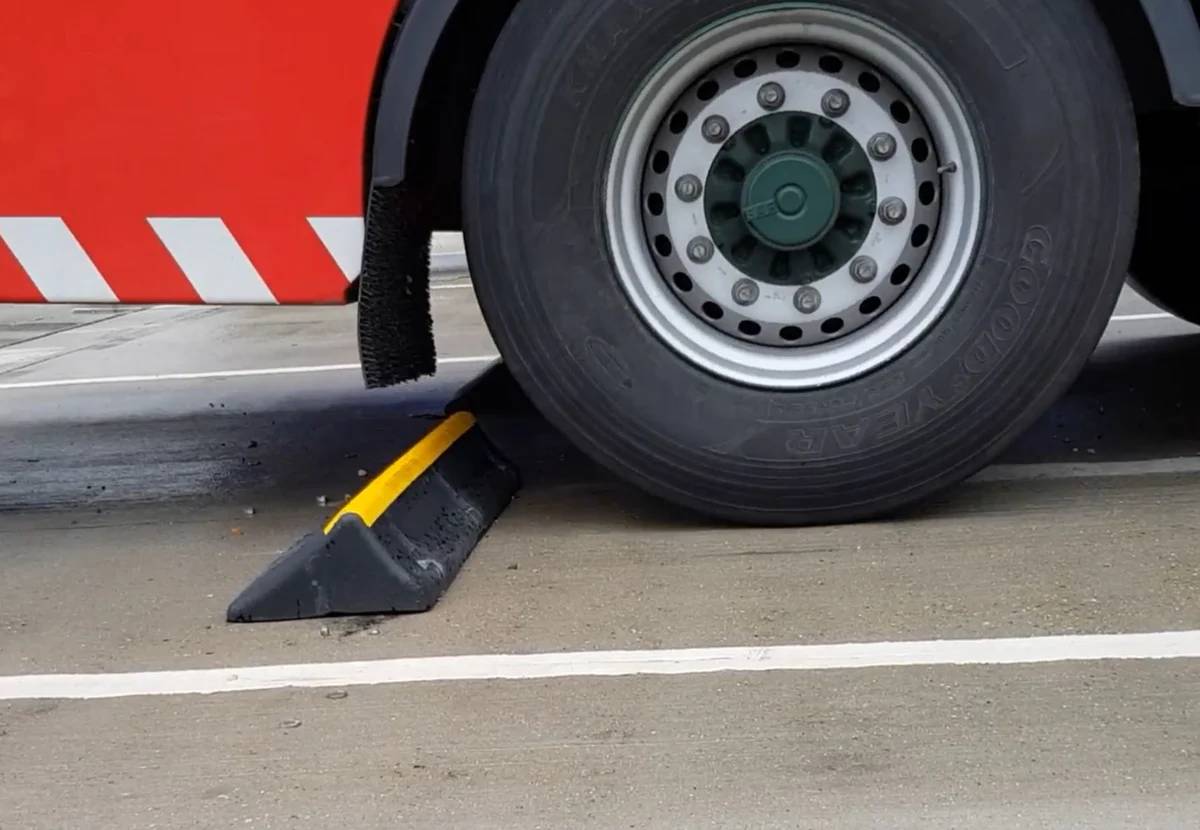

This long-lasting reliable wheel stop will bring trucks to a halt within the parking bay. The driver will feel the physical bump caused by the kerb and indicate where to stop.

Jump to:
0121 630 3527 Website

Application

Indoor and outdoor loading bays and freight depots

Description

The HGV Heavy Duty Wheel Stop is built to last, offering a reliable solution for managing vehicle parking. Its design ensures durability while helping reduce environmental impact.


With easy installation on both concrete and tarmac, it's a quick way to enhance safety without downtime. Thanks to its thoughtful shape, it remains sturdy under pressure and won't trap vehicles in the event of an override. Plus, its high visibility ensures drivers can spot it with ease, even in low light.


Features and benefits:

  • Long-lasting design - made from 95% recycled tyres.
  • High visibility - includes a 50 mm yellow glass bead reflector per kerb.
  • Fast installation - bolts down directly into concrete or tarmac.
  • Maintains shape - will not bend or deform from vehicle movements.
  • Avoid trapping - shorted side to avoid stranded vehicles if override occurs.

General information

Color

Black

Finish

Anti-slip

Material

Rubber

Shape

Rectangle

Other

Length

1000 mm

Width

300 mm

Height

150 mm

Warranty description

One year

Uniclass

Pr_25_30_86_75 Rubber vehicle stopsPrimary

CAWS

Q41/212 Vehicle stops

Q41/212 Vehicle stops

Specification data - Rubber vehicle stops

Duty

Heavy.

Dimensions

-

Size and profile

Rectangular profile, 1000 x 300 mm.

Height

150 mm.

Colour

Black and yellow.

Guidance for specification option:

Black with yellow reflective marking.

Accessories

Reflectors.

Guidance for specification option:

50 mm yellow glass bead reflector per kerb.

Accessories

5no. M16 galvanized anchors.

Weight

25 kg.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Rubber

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

Literature

HGV Heavy Duty Wheel Stop - Data Sheet

HGV Heavy Duty Wheel Stop - Data Sheet
