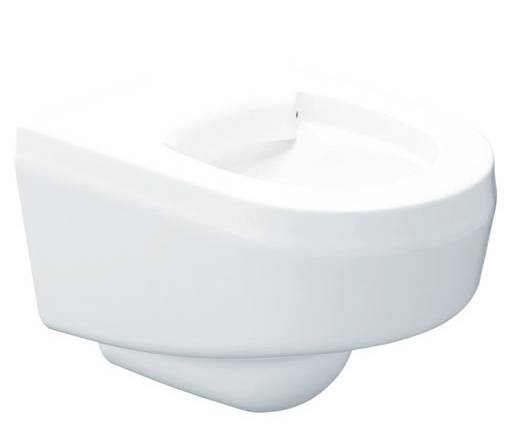

High Security Wall Hung WC Pan

Verified by manufacturer over a year ago

KWC DVS Limited

The High Security Wall Hung WC Pan has been designed for the toughest environments, and manufactured using advanced technologies.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Safe ensuite, Mental healthcare, Prisons, High security, vandal prone areas.

Description

The techniques employed to construct high security products are used very successfully in the field of ballistic armour. Additional properties include high resistance to cyclical stresses and dual stage failure mode. This provides excellent impact resistance and will not be subject to catastrophic failure. The surface of the product is a high-grade polyester gel coat specifically formulated for use with sanitaryware. It is formulated to produce high chemical resistance and resistance to ultraviolet effects.


Features:

  • Concealed rear waste outlet.
  • Large trap to reduce blockages.
  • Optional facilities to lock-out water operations.
  • Optional side infills.
  • Optional disabled riser and spacer box.


Advantages:

  • Designed for high-security applications.
  • Virtually indestructible.
  • High impact resistance.
  • Anti-shatter moulded resin (avoiding the possibility of obtaining dangerous material, for self harm or to harm others).
  • Home Office tested for anti-vandal, reduced-ligature and fire resistance.
  • White sanitaryware grade gel coated finish.
  • Hygienic non-porous surface.
  • Attractive domestic look.

General information

Color

White

Finish

Gloss

Material

Polyethylene

Guidance for specification option:

Cistern.

Glass Reinforced Plastic (GRP)

Guidance for specification option:

Gel coat.

Shape

Circle

Rectangle

Manufacturer guidance

Round-ended rectangular.

Length

510 mm

Width

400 mm

Height

370 mm

Warranty description

Five year

Uniclass

Pr_40_20_93_94 WC pansPrimary

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

N13/311 Unisex accessible WC equipment packages (Document M)

Product range

High Security Sanitaryware

Specification data - WC pans

Standard

To BS EN 997.

Form

Wall mounted.

Water supply, outlet and seat holes

-

Water supply

55 mm flush inlet.

Outlet

100 mm waste outlet.

Dimensions

510 x 400 x 370 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
