HighLine Base Unit
Verified by manufacturer over a year ago
H/L Base unit - 1 Door
H/L Base unit - 1 Door

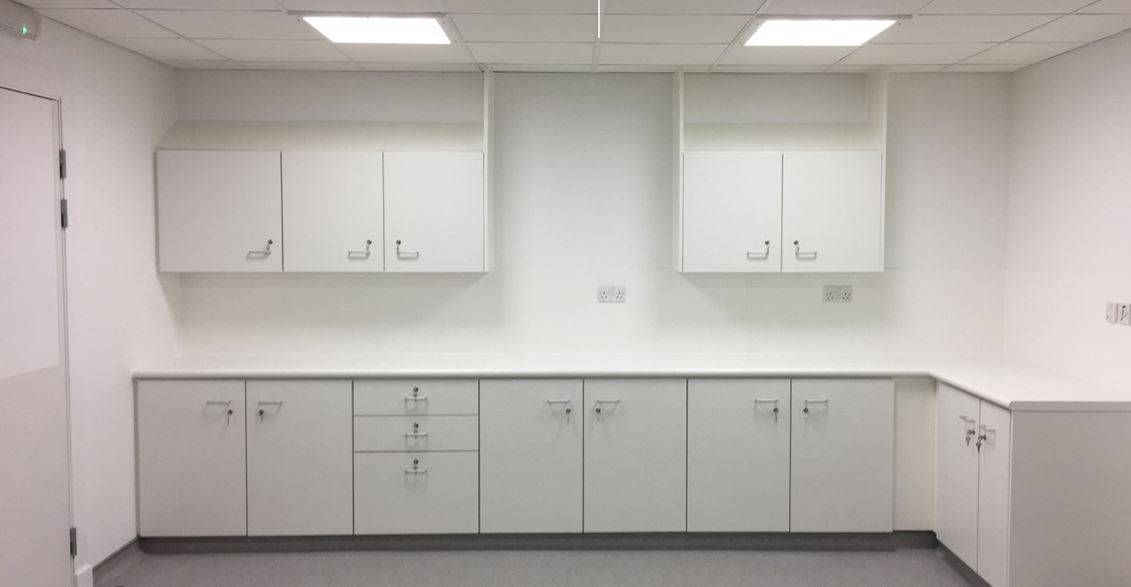

One and two door base units in a range of sizes.
Application
Healthcare:
- Hospitals.
- Doctor's surgery.
- Dental practice.
- Veterinarian practice.
- Private clinics.
Educational:
- Schools.
- Nurseries.
- Daycare.
Commercial:
- Offices.
- Shops.
- Airports.
Description
One and two door base units in a range of sizes.
Features and benefits
- Supplied fully assembled.
- 2 mm high impact edging or 1 mm sleek edging (depending on the area and use).
- Material 18 mm melamine-face chipboard (MFC) and/ or 20 mm medium density fibreboard (MDF) with high-pressure laminate (HPL) for doors.
- One handle per door and two soft close hinges.
- One lock per door if required.
- Two adjustable shelves.
- Four adjustable feet.
- Available in a wide range of colours.
- Compatible with other products in the Nu-Style.
Custom design of H/L Base unit available by request.
General information
Color | Other Guidance for specification option: Available in a wide range of colours, contact manufacturer for details. Beige Black Blue Bronze |
Finish | Laminated Guidance for specification option: Melamine-faced. |
Material | MFC High pressure laminate (HPL) Medium density fibreboard (MDF) |
Shape | Rectangle |
Length | 560 mm Bespoke |
Width | 300 mm 350 mm 400 mm 450 mm 500 mm |
Height | 768 mm Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/130 Laboratory furniture N10/135 Storage and display units N11/10 Fitted base units and wall units N11/310 Fitted base units N11/320 Fitted wall units |
Specification data - Laboratory storage units
Form | Floor mounted cupboard units. |
Dimensions | 768 x 300 x 560 mm.768 x 350 x 560 mm.768 x 400 x 560 mm.768 x 450 x 560 mm.768 x 500 x 560 mm.768 x 550 x 560 mm.768 x 600 x 560 mm.Manufacturer guidanceHeight (nominal) x width x Depth (nominal). |
Material | 18 mm-thick melamine-faced chipboard (MFC).Guidance for specification option: Swiss Krono; square edged/ lipped with 2 mm-thick polyvinyl chloride (PVC). 20 mm-thick high-pressure laminate (HPL).Guidance for specification option: 18 mm-thick moisture resistant medium density fibreboard (MDF) with high-pressure laminate on both sides. Square edged/ lipped with 2 mm-thick acrylonitrile butadiene styrene (ABS). |
Finish | Melamine-faced.Laminate. |
Colour | Manufacturer guidance18 mm-thick MFC: A selection of colours from the Swiss Krono One World Collection is available; consult literature for details. 20 mm-thick HPL: A selection of colours from the Formica Fundamentals range is available, as well as colours by Formica and Polyrey; consult literature for details. |
Plinth | 100 mm. |
Hardware | Lock, handle, hinges (pair). |
Doors | One. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
