Hinge - 115.500.100.2000.SQ.SSS.CE - Three Knuckle Butt Hinge
Verified by manufacturer 7 months ago
H207‐FS
H207‐FS
Certifire Certificate
Certificate type
Concealed bearing hinge.
Application
- Suitable for use on fire doors.
- Suitable for up to maximum adjusted door weight 120 kg.
Description

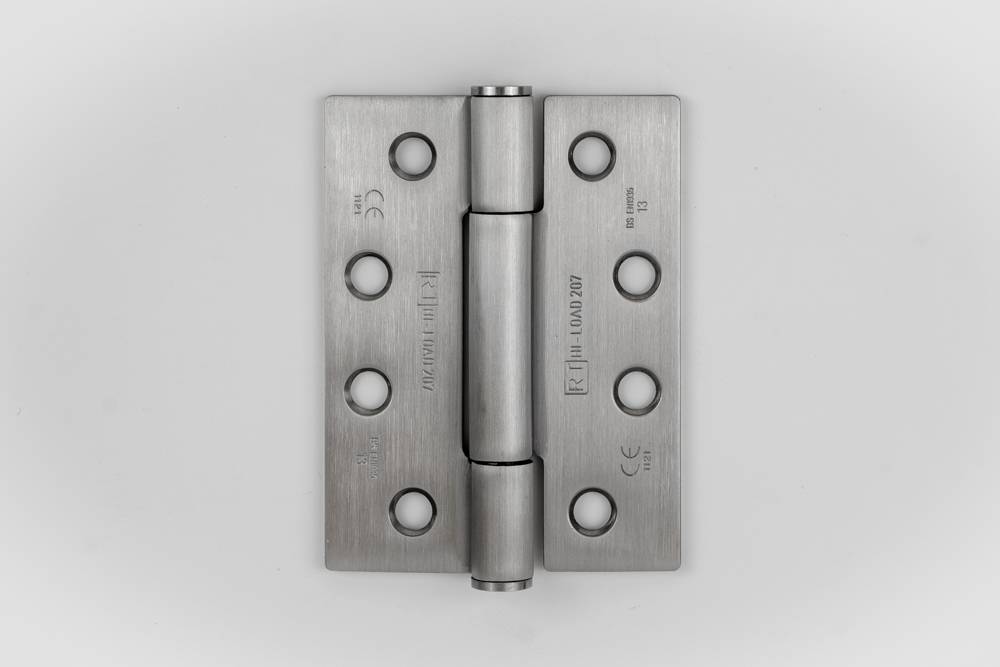

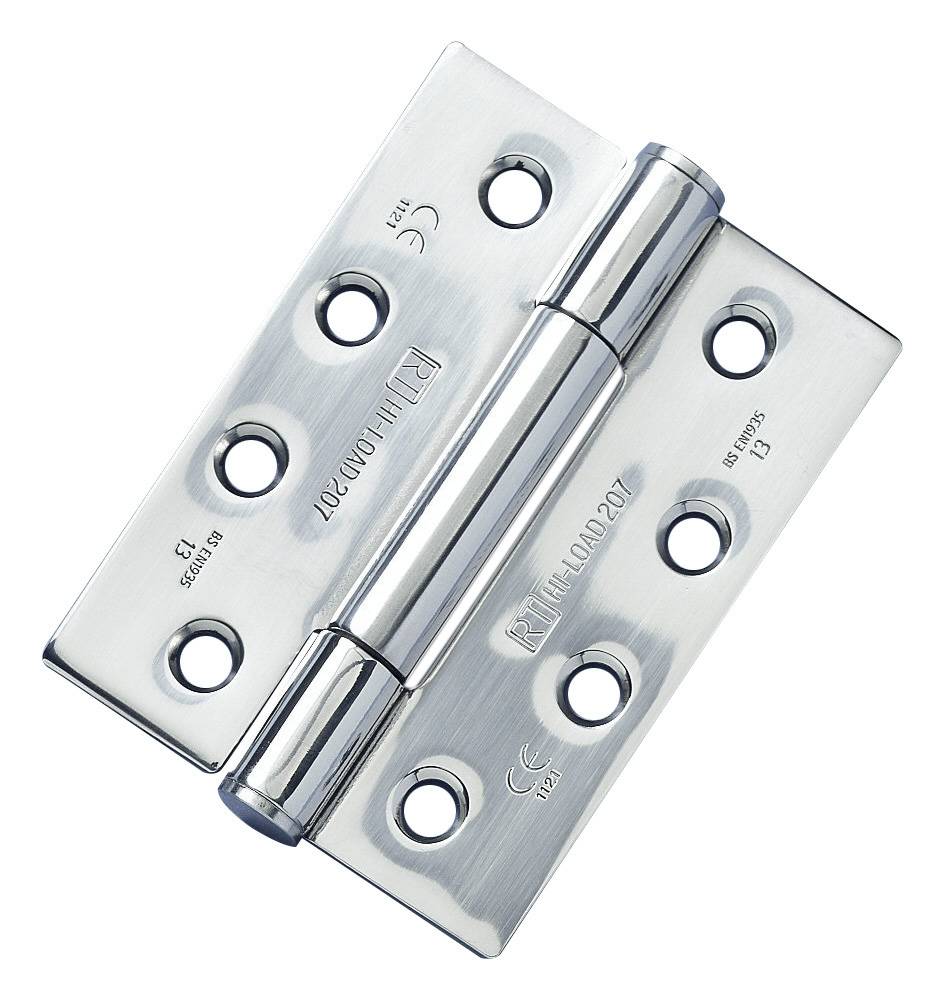

Three knuckle butt hinge.
Features and benefits:
- Maintenance free, guaranteed for 25 year.
- CE marked.
- Radiused or Square edges
General information
Color | Silver |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Length | 101.6 mm |
Width | 76.2 mm |
Height | 3 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/8 Door hinges P21/7 Single-axis door hinges P21/320 Door hinges P21/310 Single-axis door hinges |
Specification data - Single axis door hinges
Standard | To BS EN 1935. |
Classification grades (minimum) | |
Category of use | 4.Guidance for specification option: Severe duty. |
Durability | 7.Guidance for specification option: 200 000 test cycles, for medium, heavy and severe duty hinges on doors only. |
Test door mass | 6.Guidance for specification option: 120 kg. |
Suitability for use on fire and smoke doors | 1.Guidance for specification option: Suitable for fire/ smoke resistant door assemblies subject to satisfactory assessment of the contribution of the single axis hinge to the fire resistance of the specified fire/ smoke door assemblies. |
Corrosion resistance | 4.Guidance for specification option: Moderate to very high resistance. |
Security, burglar resistance | 0.Guidance for specification option: Not suitable for use on burglar-resistant door assemblies. |
Hinge grade | 13. |
Form | Three knuckle butt hinge. |
Size | 101.6 x 76.2 x 3 mm. |
Material and finish | Stainless steel.Stainless steel, Grade 1.4401 (316).Guidance for specification option: On request, consult manufacturer. |
Colour | Silver. |
Integral accessories | M5 32 mm wood screws. |
Third-party certification | To CF 215, Certifire accredited. |
Accessories | Not required. HP207 intumescent hinge pads. Guidance for specification option: To be fitted with HP207 intumescent hinge pads (suit standard template hole positions), if being installed on fire doors. |
Edges | Square. |
Type | Standard template. Jig/Z drilling pattern H207-Z. |
Barrel | Standard barrel. Raised barrel/ Knuckle version H207-R. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 kg CO₂ eq/kg Self declared |
Recyclability | Can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Certifire Certificate
R & T Certificate of Approval CF 215
