Hinged Grab Rails - support rails

Verified by manufacturer 6 months ago

Boyco (UK) Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • PEFC

    PEFC

    Certificate type

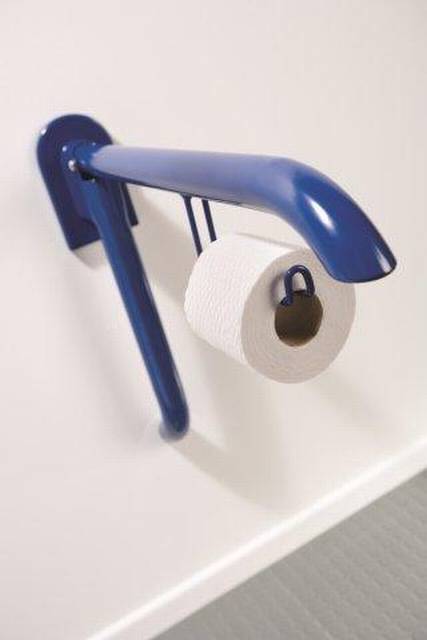

Hinged grab rails.

Jump to:
+44 (0)161 428 7077 Website

Application

Suitable for public and private bathrooms, especially where people may struggle with mobility.

Description

PLEASE ENSURE YOU ARE VIEWING THIS PRODUCT ON THE NBS PLATFORM TO VIEW ALL ASSOCIATED IMAGES.


A range of hinged grab rails.


Features and benefits:

  • Hinged grab rails with 44 mm diameter 'jumbo' arm support, counterbalanced arm for improved raise/ lower action.
  • Additional low level wall fixing gives excellent load distribution.
  • Available with 'Activate' anti-microbial finish.
  • All rails include a toilet roll holder, unless otherwise specified.
  • Concealed fixings.
  • 'Swan neck' jumbo support arm for unrivalled comfort for arthritic type ailments.
  • C/W optional deluxe toilet roll holder.
  • 650 mm wide arm as standard, also available with 750 and 850 mm wide arms.

General information

Color

Finish

Anti-microbial

Manufacturer guidance

As per manufacturer and includes:

  • Nylon coated.
  • Anti microbial finish.

Material

Steel

Shape

Other

Warranty description

Ten year

Uniclass

Pr_40_20_76_84 Support railsPrimary

CAWS

N13/69 Support rails and grab bars

N13/436 Handrails and grab bars

Product range

Grab Rails

Specification data - Support rails

Form

Hinged.

Diameter

44 mm.

Materials

-

Finish and colour

Beige.

Black.

Blue.

Brown.

Green.

Grey.

Red.

Silver.

White.

Yellow.

Type

NVH.

Guidance for specification option:

  • Wall mounted with concealed low level fixing.
  • Concealed five-point wall fixing.
  • Swan-neck end to arm.
  • Deluxe toilet roll holder.

NVH/FS.

Guidance for specification option:

  • Floor mounted.
  • Concealed five-point wall fixing.
  • Swan-neck end to arm.
  • Deluxe toilet roll holder.

NVH/PB.

Guidance for specification option:

  • Wall mounted, lockable.
  • Concealed five-point wall fixing.
  • Swan-neck end to arm.
  • Deluxe toilet roll holder.

NVH/PB/WF

Guidance for specification option:

  • Wall / floor mounted, lockable.
  • Concealed five-point wall fixing.
  • Swan-neck end to arm.
  • Deluxe toilet roll holder.

NVH/PB/FS.

Guidance for specification option:

  • Floor mounted, lockable.
  • Concealed five-point wall fixing.
  • Swan-neck end to arm.
  • Deluxe toilet roll holder.

Show more

Arm length

750 mm.

Guidance for specification option:

As standard.

650 mm.

850 mm.

Other requirements

None.

Omit toilet roll holder.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO9001

Constructionline Gold

Constructionline Gold

Construction Line Gold

Alcumus SafeContractor

Alcumus SafeContractor

SafeContractor

PEFC

PEFC

PEFC

Literature

BOYCO UK - Colour Selector Guide

BOYCO UK - Colour Selector Guide

BOYCO UK - Leisure sector overview

BOYCO UK - Leisure sector overview
