HiZone™ for Schools
Verified by manufacturer 5 months ago
HPL
HPL

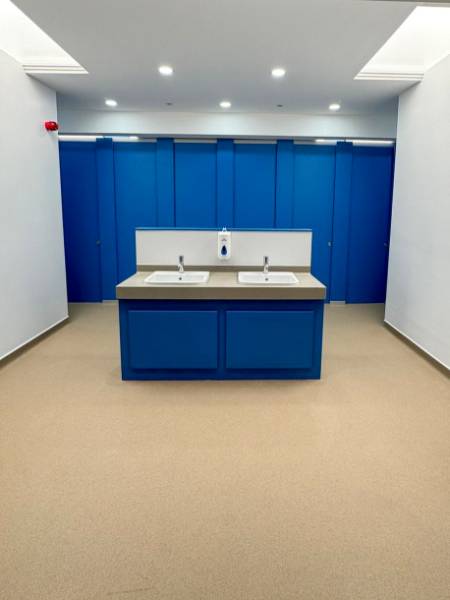

Higher education full height toilet cubicle.
Application
Suitable for higher education environments.
Description
Full height toilet cubicle system developed for schools in response to Department for Education regulations. The requirements for added privacy are at the forefront of the design whilst still keeping a modern feel.
Features and benefits:

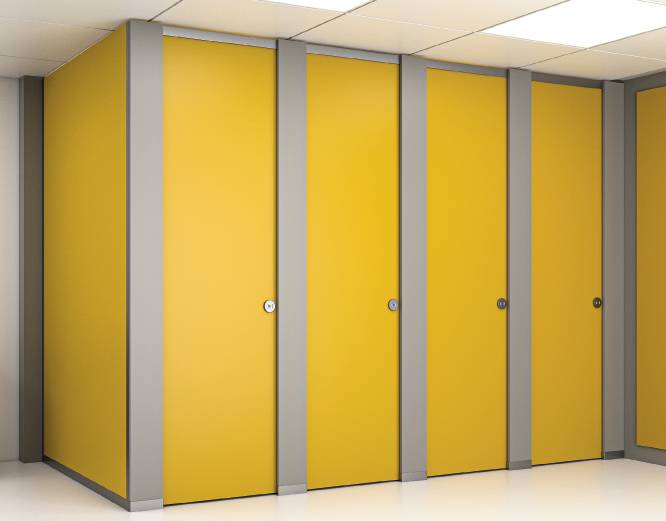

- Full height cubicles.
- Privacy strip to limit the gap between the door and the hinge.
- Available with a door and over panel or a full height door.
- HPL or SGL option. HPL provides a versatile solution for all sectors and SGL provides unrivalled strength and durability.
- 34 laminate colours.
- 5 mm door clearance with privacy skirting.
- Discourages anti-social behaviour.
Components:
- HPL: High pressure laminate panels for medium to heavy use on dry areas.
- SGL: Solid grade laminate panels for heavy usage, specifically in wet areas.

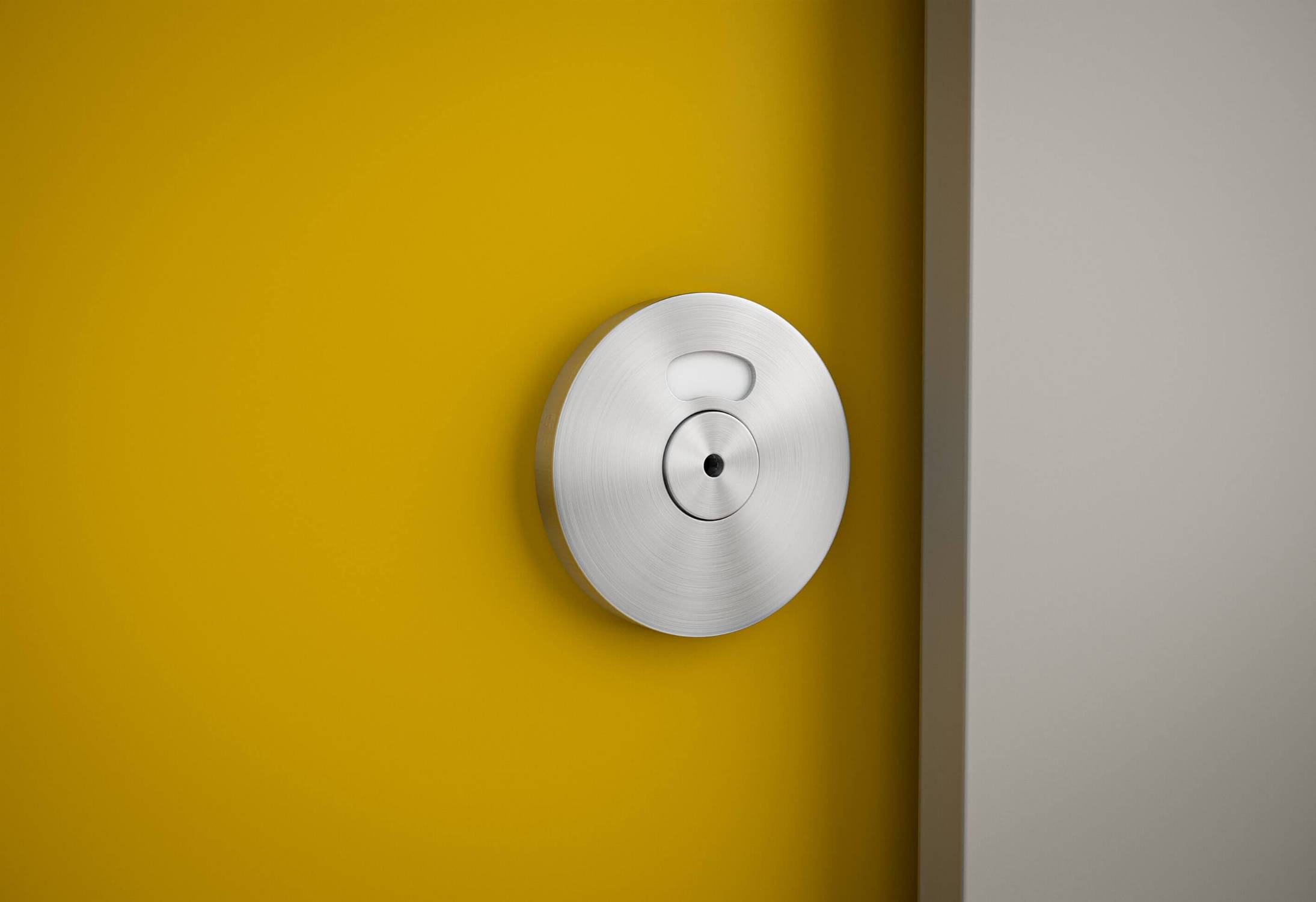

- Frame: Faceplate with Hex Key emergency release, lock, headrail and pilaster foot.
General information
Color | Black Blue Green Yellow Orange Manufacturer guidanceAvailable in 34 laminate colour options. |
Finish | Satin Anodized |
Material | High pressure laminate (HPL) Guidance for specification option: Panels. Solid grade laminate (SGL) Guidance for specification option: Panels. Aluminium Guidance for specification option: Fittings. Stainless steel |
Shape | Rectangle |
Uniclass | |
CAWS | K32/112 Fully framed panel cubicles K32/11 Fully framed panel cubicles |
Specification data - Fully-framed panel cubicle systems
Panels | High pressure laminate (HPL) facings.Guidance for specification option:
|
Panel supports | Aluminium frame with pilaster foot. |
Doors | High pressure laminate (HPL) facings.Guidance for specification option:
|
Hardware | Satin anodized aluminium faceplate (with Hex Key emergency release lock), lock, hinges, headrail and pilaster foot. |
Configuration | Full height door. Door and over panel. |
Panels | Laminate colour. Manufacturer guidancePanel/ door colour. 34 laminate colour options available. Consult manufacturer's literature and insert requirements. |
Pilasters | 230 x 19 mm. Manufacturer guidanceWidth x depth. |
Pilasters | Manufacturer guidancePilasters colour/ finish to match performance specification. Refer to manufacturer's literature and insert requirement. |
Overall height | Manufacturer guidance2810 mm (maximum). Insert requirements or refer to drawing/ schedule. |
Clearance | Manufacturer guidanceCeiling clearance, 10 mm (minimum). Insert requirements or refer to drawing/ schedule. |
Floor Clearance | Door, 5 mm; partition, to the floor. |
Sustainability data
Material | High pressure laminate (HPL) Guidance for specification option: Panels. Solid grade laminate (SGL) Guidance for specification option: Panels. Aluminium Guidance for specification option: Fittings. Stainless steel |
