Hoardfast - Partitioning / Screening
Verified by manufacturer 6 months ago
u-PVC hollow flute
u-PVC hollow flute
Constructionline Gold
Certificate type
EcoVadis
Certificate type
ISO 9001 Quality Management
Certificate type
JOSCAR
Certificate type
Alcumus SafeContractor
Certificate type
smas WORKSAFE
Certificate type
Modular, free-standing or floor-to-ceiling internal partitioning and screening system that can be used as a temporary screen, permanent partition wall or to create internal rooms in warehouses etc.
Application
- Temporary dust screen during installation or construction works.
- Create a noise reduction barrier between personnel and machinery.
- Create welfare, office and work spaces.
- Low level barrier with hand rails for personnel walkways.
- Create access tunnels and gangways for ongoing construction traffic in live environments.
- Create permanent partitions.
- Create clean rooms.
Description
Hoardfast solutions enable industrial environments to temporarily screen off areas, permanently partition their space or create new separate rooms, quickly and easily.
Available heights are between 1.12 m to 5 m as standard and panel widths vary from 30 mm to 80 mm.
For warehouse and factory environments, Hoardfast is available in standard uPVC hollow fluted panel, a steel faced PIR foam filled panel or a steel faced rockwool panel, capable of achieving a 1-hour fire barrier. Panels also offer sound and thermal insulation depending on the panel type.
The modular system offers quick, easy, clean and flexible self installation, and is completely reconfigurable and relocatable as business needs change.
Readily available from UK stock, and both hire and purchase options are available for the Standard uPVC option. Optional extras include doors, vision panels, hand rails and installation services.
Features and benefits:
- Quick modular installation.
- Floor-to-ceiling or free-standing.
- Range of panel types.
- Choose supply only (self assembly) or supply and service installation.
- Hire or purchase options.
General information
Color | White |
Finish | Smooth Other |
Material | PVC-U Steel Mineral wool Composite Guidance for specification option: u-PVC hollow flute, steel faced PIR foam filled or steel faced mineral wool filled. Foam |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke 300 mm 500 mm 1000 mm |
Height | 1120 mm Guidance for specification option: Minimum. 5000 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Between 1.12–5.00 m. |
Uniclass | |
CAWS | K30/10 Relocatable partition system K30/135 Relocatable partition/ ceiling system K30/130 Relocatable partition system |
Specification data - Panel partition systems
Panel partitioning | Partition panels. |
Fasteners | Floor-to-ceiling; supplied with u-channel fixings.Guidance for specification option: Floor-to-ceiling; supplied with u-channel fixings. Free standing; equal.Free standing; offset.Free standing; universal. |
System accessories | Not required.Doors.Vision panels.Hand rails.Installation services.DigiLock. |
Samples required | None required.Panel product samples. |
Panel | u-PVC hollow flute. |
Fire rating | To BS 476 part 7, class 1 (spread of flame). |
Connection | Tongue and groove. |
Sound insulation | From 26 dB. Guidance for specification option: Dependent on panel type. |
Panel heights | Guidance for specification option: Between 1.12–5.00 m. Insert requirements. |
Panel width | Guidance for specification option: Between 0.3–1 m. Insert requirements. |
Panel Thickness | Guidance for specification option: Between 30–80 mm. Insert requirements. |
Panel weight | Guidance for specification option: Between 8.00/m² – 17.9/m². Insert requirements. |
Sustainability data
Contains Red List materials | Yes |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Hoardfast panels can be reused and recycled at end of life. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 85 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Constructionline Gold
Constructionline Gold Member Certification
EcoVadis
EcoVadis Silver Rating Certification
ISO 9001 Quality Management
ISO 9001 Certification
JOSCAR
JOSCAR Certification
Alcumus SafeContractor
SafeContractor Certification
smas WORKSAFE
SMAS Worksafe Certification
Literature
Hoardfast Panel Range
Hoardfast Fact Sheet
Hoardfast Doors Fact Sheet
Hoardfast Vision Panels Fact Sheet
Hoardfast Case Study - Arla Foods (Factory)
Hoardfast Case Study - V A Whitley (Food Production Facility)
Hoardfast Case Study - Artemis Interiors (Fit Out Construction)
Hoardfast Case Study - Manchester Airport Transformation Programme (Airport)
Hoardfast uPVC - Sustainability Statement
Hoardfast uPVC 35mm Fitting Instructions
Westgate Global Specialised Partitions Brochure
Westgate Global Brochure
Hoardfast uPVC - Maintenance Instructions
Hoardfast uPVC - Technical Drawings
Hoardfast uPVC Floor to Ceiling - Configuration Options
Hoardfast uPVC Floor to Ceiling - Health & Safety
Hoardfast uPVC Floor to Ceiling - Technical Drawings
Hoardfast Soundscreen Floor-to-Ceiling - Configuration Options
Hoardfast Soundscreen Floor-to-Ceiling - Data Sheets
Hoardfast Soundscreen Floor-to-Ceiling - Health & Safety
Hoardfast Soundscreen Floor-to-Ceiling - Maintenance Instructions
Hoardfast Soundscreen - Recycling Process
Hoardfast Soundscreen Floor to Ceiling - Stability Tests Example
Hoardfast Soundscreen Floor-to-Ceiling - Technical Drawings
Hoardfast Firescreen Floor-to-Ceiling - Configuration Options

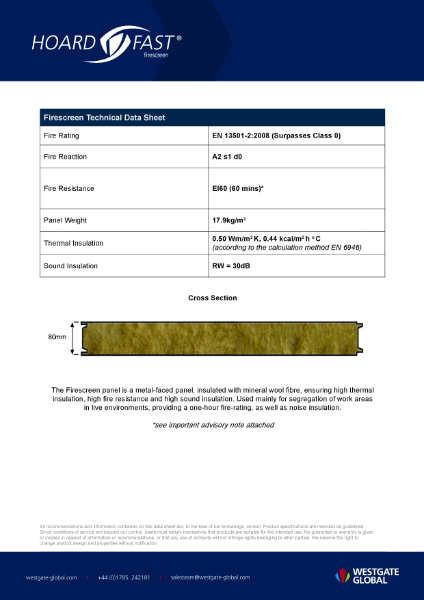

Hoardfast Firescreen Floor-to-Ceiling - Data Sheet
Hoardfast Firescreen Floor-to-Ceiling - Health & Safety
Hoardfast Firescreen Floor-to-Ceiling - Maintenance Guide
Hoardfast Firescreen Floor-to-Ceiling - Recycling Process
Hoardfast Firescreen Floor-to-Ceiling - Technical Drawings
Hoardfast Flamescreen Floor-to-Ceiling - Configuration Options
Hoardfast Flamescreen Floor-to-Ceiling - Data Sheet
Hoardfast Flamescreen Floor-to-Ceiling - Health & Safety
Hoardfast Flamescreen Floor-to-Ceiling - Maintenance Instructions
Hoardfast Flamescreen Floor-to-Ceiling - Recycling Process
Hoardfast Flamescreen Floor-to-Ceiling - Stability Tests
Hoardfast Flamescreen Floor-to-Ceiling - Technical Drawing
Hoardfast-uPVC Floor to Ceiling 50mm - Data Sheet
Hoardfast-uPVC Free-Standing 35mm - Data Sheet
Hoardfast-uPVC Free-Standing 50mm - Data Sheet
Hoardfast-uPVC Universal 35mm - Data Sheet
Hoardfast-uPVC Universal 50mm - Data Sheet
Firescreen_80mm_ DOP
Firescreen_80mm- EI 60
Firescreen_A2-s1-d0
Firescreen_Accoustic_ test-certificate
Firescreen & Soundscreen EPD - Sustainability.pdf
Soundscreen_Accoustic_ test-certificate-34dB
