Holton Open Fronted Shelter - Smoking, Cycle and Waiting Shelters
Verified by manufacturer 5 months ago

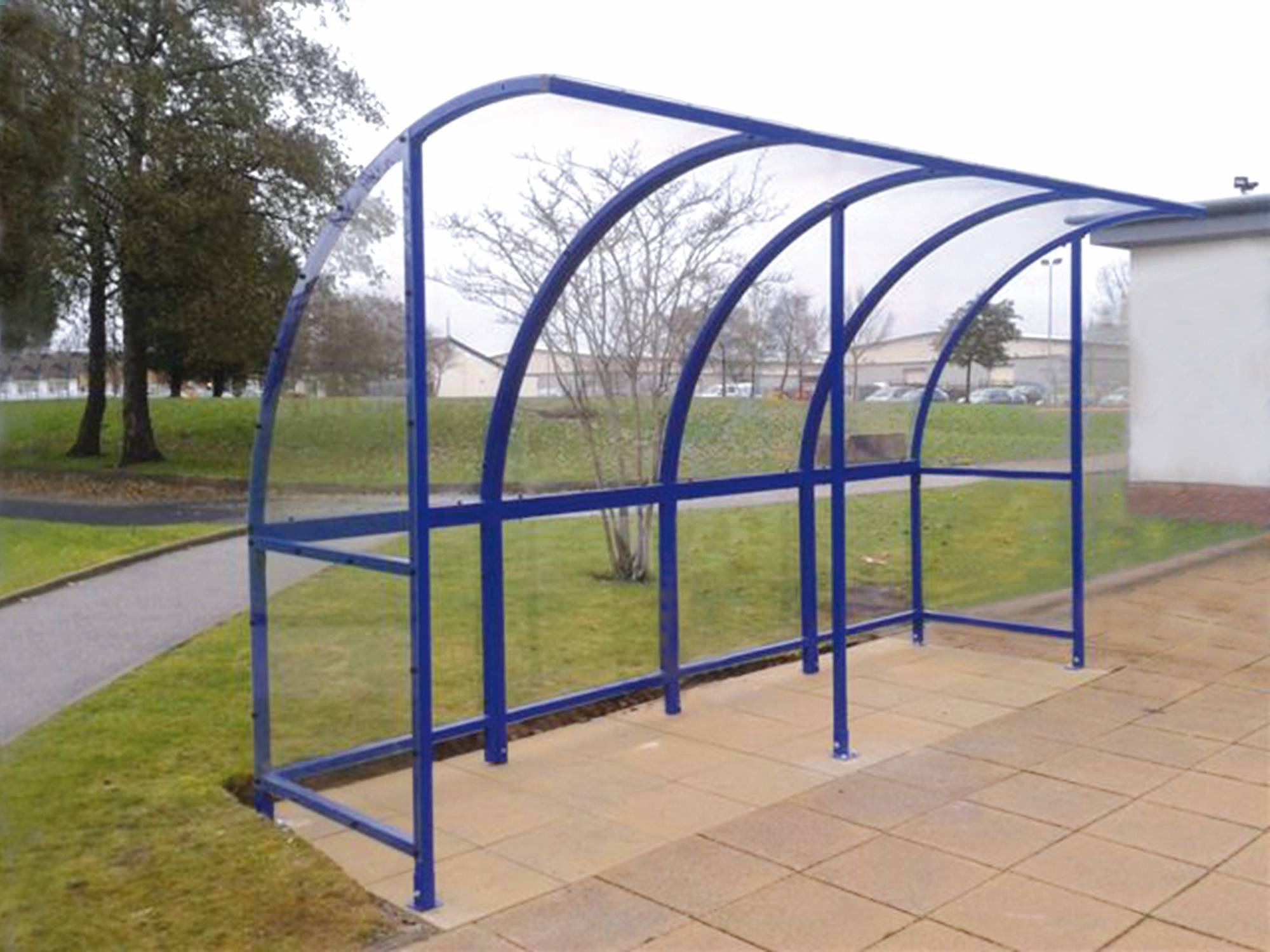

Holton cycle shelter

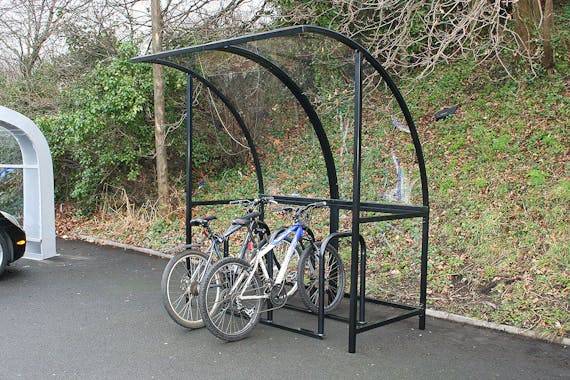

Holton cycle shelter
Stylish, curved design shelters for smoking areas, cycle protection and waiting areas.
Application
Can be used for a variety of applications such as a smoking shelter, cycle shelter, parent/staff waiting area, spectator viewing area, or designated break time area.
Description
Stylish, curved design shelters for smoking areas, cycle protection and waiting areas.
Features and benefits:
- Provides protection for smokers, cycles or customers and visitors from adverse weather.
- Gives a good area of rain shelter on wet days and UV protection from the sun on hot days.
- Can be used for a variety of applications such as a smoking shelter, parent/staff waiting area, spectator viewing area, or designated break time area.
- See through panels will reduce risk of vandalism and theft for cycles.
- Steel structure ensures shelter is hard wearing and long lasting.
- Anti-corrosion surface treatment guarantees the shelter for five years.
- This modular shelter is infinitely adaptable to suit any location.
- Versatile shelter supplied as freestanding and is suitable for concrete, paving slab or block brick slabs.
- Note: end panels supplied separately.
General information
Color | Black Guidance for specification option: Frame only. Blue Guidance for specification option: Frame only. Green Guidance for specification option: Frame only. Grey Guidance for specification option: Frame only. Red Guidance for specification option: Frame only. |
Finish | Powder-coated |
Material | Steel Polycarbonate Acrylic |
Shape | Rectangle |
Length | 2000 mm Guidance for specification option: Depth. 3000 mm 4000 mm 5000 mm Bespoke |
Width | 1700 mm |
Height | 2191 mm 2419 mm |
Warranty description | Five year |
Uniclass |
Specification data - Semi-closed shelters
Shelter description | Cycle shelter. |
Dimensions | |
Plan size | 2000 x 1700 mm.Guidance for specification option: Three racks/ six bikes. 3000 x 1700 mm.Guidance for specification option: Four racks/ eight bikes. 4000 x 1700 mm.Guidance for specification option: Six racks/ 12 bikes. 5000 x 1700 mm.Guidance for specification option: Eight racks/ 16 bikes. Manufacturer guidanceWidth x depth. |
Height | 2419 mm. |
Frame | |
Material | Structural steel.Guidance for specification option: 40 x 40 mm mild steel hollow box section, 2 mm-thick. |
Finish | Zinc and epoxy powder coated to BS EN 12206-1:2004. |
Colour | Black RAL 9005.Guidance for specification option: Standard colour. Blue RAL 5002.Guidance for specification option: Standard colour. Green RAL 6026.Guidance for specification option: Standard colour. Anthracite Grey RAL 7016.Guidance for specification option: Standard colour. Umbra Grey RAL 7022.Guidance for specification option: Standard colour. Red RAL 3020.Guidance for specification option: Standard colour. Silver RAL 7035.Guidance for specification option: Standard colour. White RAL 9003.Guidance for specification option: Standard colour. Yellow RAL 1021.Guidance for specification option: Standard colour. RAL, other.Guidance for specification option: Insert requirements. |
Panels | Co polymer/acrylic (back panels).Guidance for specification option: End panels specified separately, see Accessories. |
Roof covering | Clear polycarbonate with ten years' UV resistant coating. |
Accessories | None.End panels. |
Integral accessories | Cycle racks. Guidance for specification option: See Plan size guidance for capacity. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Polycarbonate Acrylic |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Holton Open Fronted Shelter – Product Data Sheet
