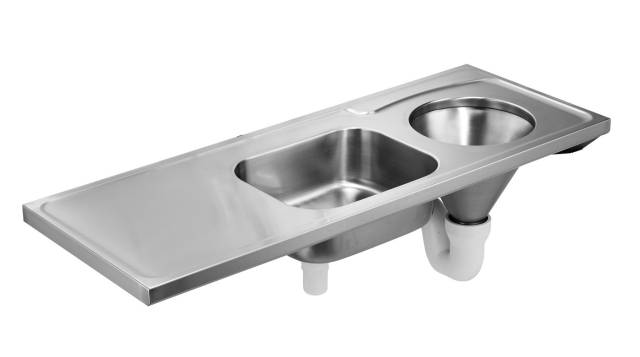

Hospital Pattern Disposal Sink
Verified by manufacturer over a year ago
(G22018L) 207.0000.065
(G22018L) 207.0000.065
A range of hospital sluice sinks, 1600 x 600 mm, combining a sluice hopper and sink.
Application
Designed for either duct or surface mounting.
Description
A range of hospital pattern disposal sinks, combining a sluice hopper and sink with a left or right handed drainage tray.
Features and benefits:
- The sluice hopper incorporates a 110 mm diameter outlet, which can accommodate a 'P' or 'S' trap.
- The disposal unit can be mounted either on stainless steel cantilevered brackets or on stainless steel front leg supports with adjustable feet to provide a working height of 900 mm.
- Plastic cisterns with stainless steel down-pipes are for duct mounting.
- Stainless steel cisterns with stainless steel down-pipes are for surface mounting.
- Cisterns have nine litre capacity and are fitted with a 13 mm HP brass valve, plastic float and CP metal flushing lever handle. Cisterns should only be fed from a tank water supply.
- Flush volume: Nine litres.
General information
Color | Silver |
Finish | Polished Brushed |
Material | Stainless steel |
Shape | Rectangle |
Length | 600 mm |
Width | 1600 mm |
Uniclass | |
CAWS | N13/386 Disposal units |
Product range |
Specification data - Hospital pattern disposal units
Form | 1600 x 600 mm hopper with plain top and sink. |
Finish and material | Stainless steel type 1.4301 (304).Guidance for specification option: With a brush polished finish. |
Hand | Left hand drainer. |
Product Reference | (G22018L) 207.0000.065 Guidance for specification option: Hospital pattern disposal sink DUH with left hand drainer and back inlet for duct mounted cisterns. (G22018R) 207.0000.067 Guidance for specification option: Hospital pattern disposal sink DUH with right hand drainer and back inlet for duct mounted cisterns. (G22027L) 207.0000.071 Guidance for specification option: Hospital pattern disposal sink DUH with left hand drainer and top inlet for surface mounted cisterns. (G22027R) 207.0000.073 Guidance for specification option: Hospital pattern disposal sink DUH with right hand drainer and top inlet for surface mounted cisterns. |
Accessories/ Other requirement | Not required. (G26523L) 215.0000.047. Guidance for specification option: Cantilever wall bracket (left-hand) 40 x 180 x 557 mm. (G26523R) 215.0000.049. Guidance for specification option: Cantilever wall bracket (right-hand), 40 x 180 x 557 mm. (G26524L) 215.0000.050. Guidance for specification option: Front leg support, left-hand. (G26524R) 215.0000.052. Guidance for specification option: Front leg support, left-hand. |
Wastes | 38 mm BSP waste, plug and chain Ref: G25147N. |
Dimensions | 1600 x 600 mm. |
Steel thickness | 1.2 mm. |
