Hospital Sink - G22006
Verified by manufacturer over a year ago
(G22006LT) 215.0000.019
(G22006LT) 215.0000.019

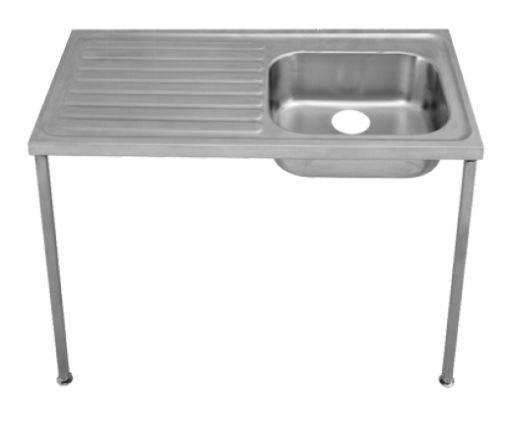

STA single bowl and single drainer hospital sink.
Application
For hospital settings.
Description
A single bowl and drainer sink.
Features and benefits:
- Stainless steel 1.2 mm thick, grade 1.4301 (304) stainless steel, satin polish finish.
- Option for two or no tapholes.
- The sink top is turned down on all four edges and incorporates a wet area recess.
- The bowl is prepared for a 38 mm waste outlet.
- No overflow.
- The sink top can either be mounted on wall brackets or front leg supports.
- Brackets, supports, wastes and taps available separately.
General information
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 600 mm |
Width | 1200 mm |
Height | 218 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/331 Sinks |
Product range |
Specification data - Sinks
Form | Sit-on. |
Bowls | One. |
Drainers | One, left hand. |
Materials | |
Body | Stainless steel type 1.4301 (304). |
Finish and colour | Satin.Guidance for specification option: Satin polish finish. |
Size | 1200 x 600 x 218 mm.Manufacturer guidanceBowl: 500 x 400 x 200 mm. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes. |
Overflow | No overflow hole. |
Waste | 38 mm waste outlet. |
Integral accessories | (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm.(G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm.(G26524L) 215.0000.050 Front leg support, left-hand.(G26524R) 215.0000.052 Front leg support, left-hand. |
Execution | Installing sink assemblies on brackets or leg frames. |
Product Reference | (G22006LT) 215.0000.019 Guidance for specification option: STA sink unit with left hand drainer and tap holes. (G22006RT) 215.0000.021 Guidance for specification option: STA sink unit with right hand drainer and tap holes. (G22006L) 215.0000.018 Guidance for specification option: STA sink unit with left hand drainer. (G22006R) 215.0000.020 Guidance for specification option: STA sink unit with right hand drainer. |
Accessories/ Other requirements | (G26523L) 215.0000.047 Cantilever wall bracket (left-hand) 40 x 180 x 557 mm. (G26523R) 215.0000.049 Cantilever wall bracket (right-hand), 40 x 180 x 557 mm. (G26524L) 215.0000.050 Front leg support, left-hand. (G26524R) 215.0000.052 Front leg support, left-hand. |
Steel thickness | 1.2 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Poland |
Recyclability | Recyclable |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
