Hospital Sink - G22053N

Verified by manufacturer over a year ago

KWC DVS Limited

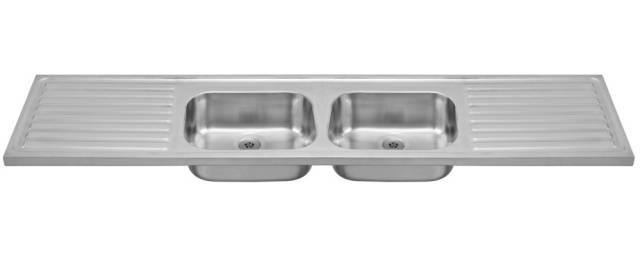

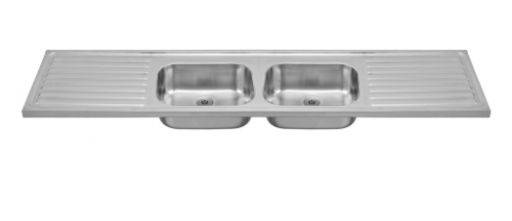

Sit on sink with radiused front edge 1800 x 650 mm - double bowl, double drainer.

Jump to:
BOS
+44 (0)1246 458900 Website

Application

Hospital sink for mounting onto cabinets, front leg supports or cantilevered brackets.

Description

A double bowl, double drainer sit on sink prepared for a 38 mm waste outlet which can be supplied as an extra.


Features and Benefits:

  • All the sink units are suitable for mounting onto cabinets, front leg supports or cantilevered brackets - brackets and waste available separately.
  • Stainless steel.
  • Satin finish.


General information

Color

Silver

Finish

Satin

Material

Stainless steel

Guidance for specification option:

grade 1.4301 (304)

Length

650 mm

Width

1800 mm

Height

220 mm

Warranty description

Five year

Uniclass

Pr_40_20_96_81 SinksPrimary

CAWS

N13/25 Sinks

N13/331 Sinks

Product range

Sinks

Specification data - Sinks

Form

Inset.

Guidance for specification option:

Double bowl, double drainer sit on sink for mounting onto cabinets, front leg supports or cantilevered brackets .

Bowls

Two.

Drainers

Two.

Guidance for specification option:

Double drainer (left or right when facing the unit).

Materials

-

Body

Stainless steel.

Guidance for specification option:

grade 1.4301 (304)

Finish and colour

Satin.

Size

1800 x 650 x 220 mm.

Guidance for specification option:

 Bowl dimensions: 400 x 500 x 200 mm 1.2mm thick.

Water supply, overflow and waste holes

-

Water supply

No tap holes.

Two tap holes.

Guidance for specification option:

At 200 mm centres depending on product type.

Waste

38 mm waste outlet.

Guidance for specification option:

Can be supplied as an extra.

Integral accessories

Accessories include cantilever wall brackets (left hand and right hand) and front leg support

Product Reference

(G22053N) 215.0000.040

Guidance for specification option:

No tapholes.

(G22053NT) 215.0000.041

Guidance for specification option:

With two tap holes at 200 mm centres.

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recyclability

-

Manufacturer guidance

Recyclable.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
