House Inspection Chambers (HICs) - Drainage
Verified by manufacturer 3 months ago
HIC Chamber Sections for 600 x 450 mm: 150 mm depth
HIC Chamber Sections for 600 x 450 mm: 150 mm depth

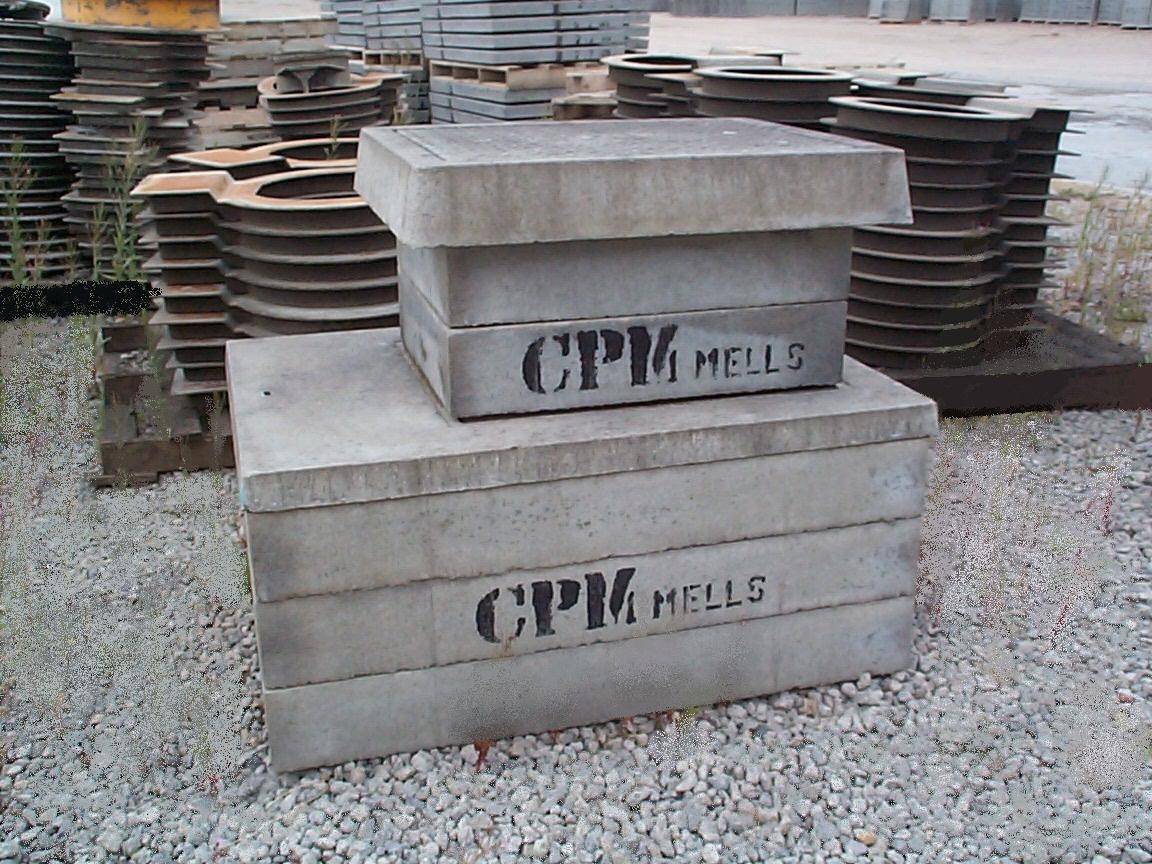

Precast concrete, household inspection chamber.
Application
Inspection chamber for household use
Description
The Marshalls Civils & Drainage precast concrete household inspection chambers are available in a variety of depths, with tongue and groove joints to BS EN 1917:2002/BS 5911-4:2002.
The house inspection chambers (HICs) can be jointed quickly and easily with bituminous or butyl compounds providing a watertight seal without the use of a concrete surround. For depths in excess of 1.5 m the use of a concrete surround is recommended.
Features and benefits:
- The concrete inspection chambers are economic and versatile and meet the demands of domestic drainage installation.
- They are easily handled and excavation below ground level is reduced to a minimum.
- Made to BS EN 1917:2002/BS 5911-4:2002.
- Meet the requirements of domestic drainage installation.
- Can be supplied banded.
General information
Color | Grey |
Finish | Cement |
Material | Precast concrete |
Shape | Rectangle |
Length | 600 mm 750 mm 1000 mm |
Width | 450 mm 600 mm 675 mm |
Height | 150 mm 225 mm 300 mm |
Uniclass | |
CAWS | R12/407 Manholes and inspection chambers – concrete R12/62 Manholes and inspection chambers – concrete |
Specification data - Concrete inspection chamber sections
Standards | To BS 5911-4 and BS EN 1917. |
Certification | BSI Kitemark: ISO 9001; ISO 14001. |
Form | Rectangular. |
Dimensions | |
Clear internal dimension | 600 x 450 mm. |
Section thickness | 50 mm.Manufacturer guidanceWall thickness. |
Sealant | 2.5 mm. |
Depth | 150 mm. |
Weight | 44 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Precast concrete |
