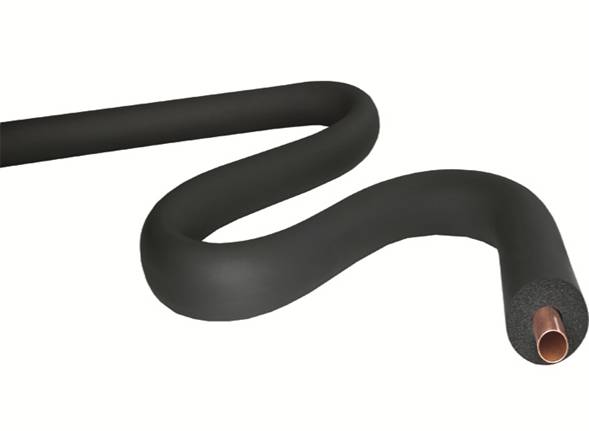

HT/ArmaFlex Tubes - Flexible Elastomeric Foam Insulation

Name: HT/ArmaFlex Tubes - Flexible Elastomeric Foam Insulation
Brand: Armacell UK Ltd
SKU: 5pRXkdPCUQM7WZKniQmskb

Verified by manufacturer 11 days ago

Tube - standard 10 mm - HT-10X010

Armacell UK Ltd

Product certifications:

DoP
Certificate type
EPD
Certificate type

Highly flexible, high temperature, closed cell insulation for pipe and ductwork, based on extruded elastomeric foam with resistance to UV radiation.

Jump to:

BOS

+44 (0)161 287 7100 Website

Application

For use on the thermal insulation of pipes, vessels and ducts in solar collectors (including outdoors), hot gas lines, steam lines and dual temperature lines.

Description

High temperature, closed cell insulation material based on extruded elastomeric foam. Manufactured in tube form.

Features and benefits:

Resistant to UV radiation.
Highly flexible and easy to install.
Professional solution for high temperature applications up to +150 °C.
Euroclass DL-s3,d0 fire rating.
Fulfills all VOC requirements.
Meets the sustainable construction requirements for LEED v4.1, BREEAM international, WELL v2 and DGNB.
UL approved.
Environmental Product Declaration (EPD) available.

General information

Color	Black
Finish	Smooth
Material	Rubber Guidance for specification option: Synthetic EPDM rubber based. Foam Guidance for specification option: Elastomeric foam.
Shape	Other Guidance for specification option: Tube.
Length	2000 mm
Height	10 mm 13 mm 19 mm 25 mm
Warranty description	- Manufacturer guidance Please refer to Armacell UK Ltd Terms and Conditions published in the back of the Armacell UK Ltd Product Catalogue.

Uniclass	Pr_80_77_76_58 Nitrile rubber insulationPrimary Pr_80_77_76_29 Flexible elastomeric foam insulation
CAWS	S15/435 Pipeline insulation R11/383 Insulation to internal pipelines R10/39 Insulation to internal pipelines R10/450 Insulation to internal pipelines S90/570 Insulation to pipelines S90/570 Insulation to pipework

SKU Code	HT-10X010, HT-10X012, HT-10X015, HT-10X018, HT-10X022, HT-10X028, HT-10X035, HT-10X042, HT-13X010, HT-13X012, HT-13X015, HT-13X018, HT-13X022, HT-13X028, HT-13X035, HT-13X042, HT-13X048, HT-13X054, HT-13X060, HT-13X076, HT-13X089, HT-19X012, HT-19X015, HT-19X018, HT-19X022, HT-19X028, HT-19X035, HT-19X042, HT-19X048, HT-19X054, HT-19X060, HT-19X064, HT-19X076, HT-19X089, HT-25X015, HT-25X018, HT-25X022, HT-25X028, HT-25X035, HT-25X042, HT-25X048, HT-25X054, HT-25X060, HT-25X076, HT-25X089

Specification data - Nitrile rubber insulation

Standard	To EN 14304.
Form	Pipe section.
Environmental rating	Type III Environmental Product Declaration (EPD). Guidance for specification option: EPD-ARM-20200222-IBA1-EN, Institut Bauen und Umwelt e.V. (IBU).
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0%.
Thermal conductivity	0.042 W/m·K at 40°C. Guidance for specification option: To EN ISO 13787, EN 12667, EN ISO 8497.
Finish	Smooth.
Fire performance	To EN 13501-1, Euroclass DL-s3,d0. Guidance for specification option: EN ISO 11925-2, EN 13823.
Insulation thickness (minimum)	10 mm.
Accessories	Not required. Loadbearing insulated pipe supports. ArmaFlex HT625 adhesive.
Items to be insulated	Pipework and associated equipment.

Service temperature	-50 to 150°C. Guidance for specification option: To EN 14706, EN 14707, EN 14304.
Water vapour diffusion resistance	≥4000. Guidance for specification option: To EN 12086, EN 13469.
Tolerances	± 1.5 mm (thickness). ± 1.5% ( length).
Pipe diameter	10 mm.
InnerDiameter	11–14 mm.
Coverage	192 m.

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Material	Rubber Guidance for specification option: Synthetic EPDM rubber based. Foam Guidance for specification option: Elastomeric foam.
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit
Declared unit	218 kg CO₂ eq/m³ Certified
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
