Hudevad Fionia Lowline - Radiator

Verified by manufacturer 6 months ago

Type 22 Radiator

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • DoP

    DoP

    Certificate type

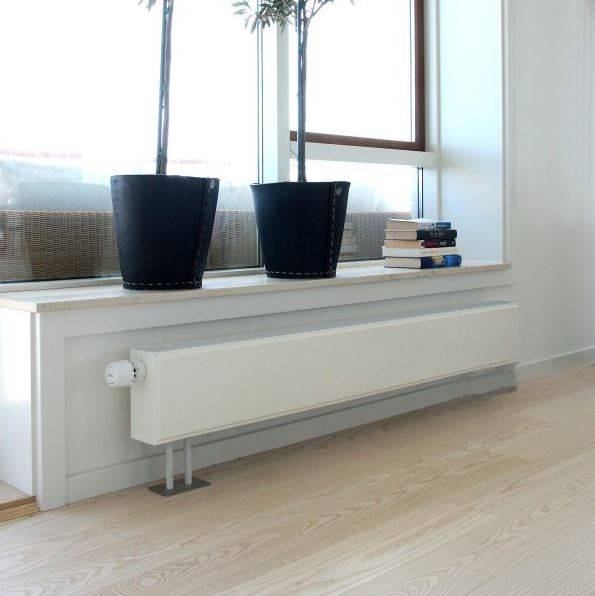

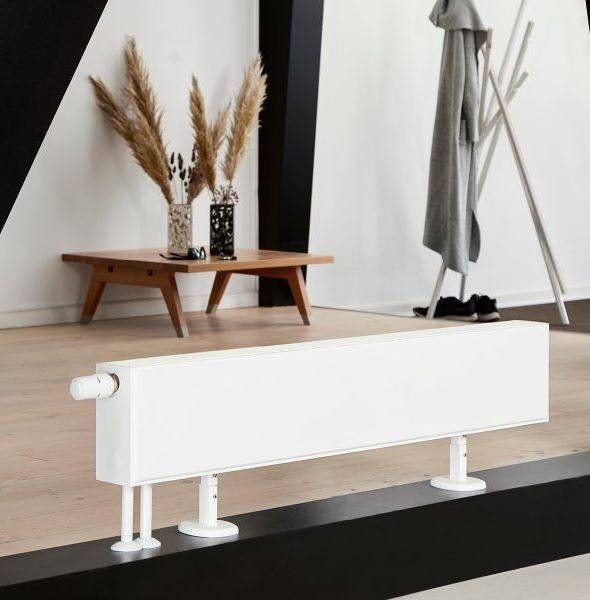

Wall or floor mounted radiator in steel with fixed casing and convectors.

Jump to:
+44 (0)24 7688 1200 Website

Application

Wall or floor mounted radiator.

Description

Hudevad Fionia Lowline has a 2 mm thick front plate with the characteristic Hudevad edge, closed sides and fitted with a removable grille with angled slats, so the convectors inside can't be seen. The grille is recessed in the top of the radiator so it is flush with the radiator edge.

The grille can be supplied with a anti-tamper bracket, so it can´t be removed.


Features and benefits:

  • Pre-treatment by degreasing and steel phosphating.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 10 bar in accordance with EN 442.
  • 2 mm steel casing according to EN 10051.
  • Steel panel (heating element) according to EN 442.

General information

Color

White

Guidance for specification option:

White RAL 9016 70% Gloss.

Other

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

1010 mm

1020 mm

1210 mm

1220 mm

1410 mm

Show more

Width

118 mm

176 mm

234 mm

Height

220 mm

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Double panel double convector.

Guidance for specification option:

Type 22.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

 In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Anti-tamper bracket.

Danfoss TRV Head.

Guidance for specification option:

Required for Tapping Code 11 and 12.

Casing

To EN 10051, 2.00 mm steel.

Heating element

To EN 442, steel panel.

Grille

Powder-coated steel.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

13 bar.

Operating pressure (maximum)

To EN 442, 10 bar.

Operating temperature

110°C.

Height

220 mm.

Depth

118 mm.

Length

1010 mm.

Guidance for specification option:

L1: 1010 mm.

L2: 1000 mm.

1020 mm.

Guidance for specification option:

L1: 1020 mm.

L2: 1000 mm.

1210 mm.

Guidance for specification option:

L1: 1210 mm.

L2: 1200 mm.

1220 mm.

Guidance for specification option:

L1: 1220 mm.

L2: 1200 mm.

1410 mm.

Guidance for specification option:

L1: 1410 mm.

L2: 1400 mm.

Show more

Manufacturer guidance

Availability of lengths varies depending of chosen tapping configuration.

Tapping configuration

Tapping code 10.

Guidance for specification option:

Tapping type: ABCD (4 taps).

L1: 1010—2010 mm (in 100 mm increments).

L2: 1000—2000 mm (in 100 mm increments).

Tapping code 11.

Guidance for specification option:

Tapping type: FF built-in valve (6 tap right).

L1: 1020—2020 mm (in 100 mm increments).

L2: 1000—2000 mm (in 100 mm increments).

Danfoss TRV Head required.

Tapping code 12.

Guidance for specification option:

Tapping type: EE built-in valve (6 tap left).

L1: 1020—2020 mm (in 100 mm increments).

L2: 1000—2000 mm (in 100 mm increments).

Danfoss TRV Head required.

Tapping code 15.

Guidance for specification option:

Tapping type: E/F, no valve.

L1: 1210—2010 mm (in 100 mm increments).

L2: 1000—2000 mm (in 100 mm increments).

Manufacturer guidance

See manufacturers literature for more information.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark

DoP

DoP

Hudevad Fionia Lowline Tapping Code 10 - 12 DoP

DoP

DoP

Hudevad Fionia Lowline Tapping Code 15 DoP
