Hudevad P5 Vertical - Radiator
Verified by manufacturer 4 days ago
Type 11 Radiator
Type 11 Radiator
Independent sustainability assessment
Certificate type

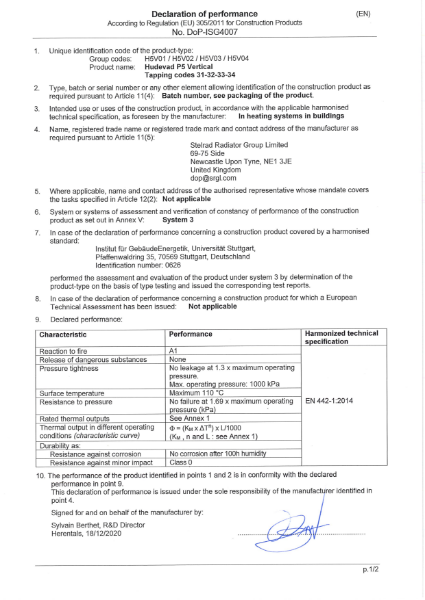

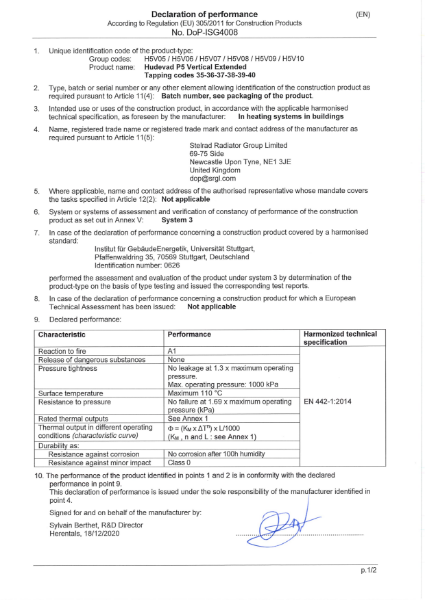

DoP
Certificate type
Wall mounted radiator in steel with fixed casing and convectors.
Application
Suitable choice for the interior of any room.
Description
The P5 Vertical are all made with 2 mm thick front plate with the characteristic Hudevad edge. The deeper models of the P5 Vertical have closed sides with a streamlined recess that gives the radiator a completely unique look. P5 Vertical can be used anywhere.
Features and benefits:
- Pre-treatment by degreasing and steel phosphating.
- Powder coated in accordance with DIN 55900, EN 442.
- Max operating pressure 10 bar in accordance with EN 442.
- 2 mm steel casing according to EN 10051.
- Steel panel (heating element) according to EN 442.
General information
Color | White Guidance for specification option: White RAL 9016 70% Gloss. Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 355 mm 455 mm 555 mm 655 mm 755 mm |
Width | 50 mm 79 mm 102 mm |
Height | 1620 mm 1820 mm 2020 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Radiators
Standards | To BS EN 442-1 and BS EN 442-2. |
Radiator type | Single convector panel.Guidance for specification option: Type 11. |
Output | Guidance for specification option: Consult manufacturer and insert requirements. |
Finish | Powder-coated.Guidance for specification option: In accordance with DIN 55900, EN 442. |
Connections | Guidance for specification option: Consult manufacturer and insert requirements. Manufacturer guidanceAll connections 1/2” standard. |
Accessories | Guidance for specification option: Hudevad recommends use of Danfoss accessories when fitting the radiator. For further accessories please refer to the Hudevad Pricelist. |
Casing | To EN 10051, 2.00 mm steel. |
Heating element | To EN 442, steel panel. |
Colour | White RAL 9016, gloss 70. Guidance for specification option: Standard. Other. Guidance for specification option: Can be painted in other colours. Insert requirements. |
TestPressure | 13 bar. |
Operating pressure (maximum) | To EN 442, 10 bar. |
Operating temperature | 110°C. |
Height | 1620 mm. Guidance for specification option: H1: 1620 mm. H2: 1600 mm. 1820 mm. Guidance for specification option: H1: 1820 mm. H2: 1800 mm. 2020 mm. Guidance for specification option: H1: 2020 mm. H2: 2000 mm. Manufacturer guidanceAvailability of height varies depending of chosen tapping configuration selected. |
Depth | 50 mm. |
Width | 355 mm. Guidance for specification option: L1: 355 mm. L2: 300 mm. 455 mm. Guidance for specification option: L1: 455 mm. L2: 400 mm. 555 mm. Guidance for specification option: L1: 555 mm. L2: 500 mm. 655 mm. Guidance for specification option: L1: 655 mm. L2: 600 mm. 755 mm. Guidance for specification option: L1: 755 mm. L2: 700 mm. |
Tapping configuration | Tapping code 32. Guidance for specification option: Tapping type: Bottom tapping's, flow left. H1: 1620 mm, 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm, 2000 mm. Tapping code 34. Guidance for specification option: Tapping type: Top tapping's, flow left. Note: Top tapping is not recommended for flows below 30 L/h. H1: 1620 mm, 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm, 2000 mm. Tapping code 36. Guidance for specification option: Tapping type: E/F valve left. H1: 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm. Tapping code 38. Guidance for specification option: Tapping type: Hidden tapping's, no valve, flow left. Tapping code 40. Guidance for specification option: Tapping type: Hidden tapping's, with valve, flow left. H1: 1820 mm, 2020 mm. H2: 1600 mm, 1800 mm. Manufacturer guidanceSee manufacturers literature for more information. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature

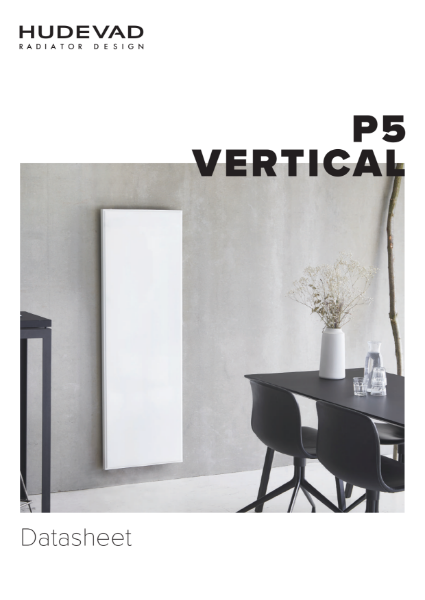

Hudevad P5 Vertical
