Hudevad Piso - Radiator

Verified by manufacturer 5 months ago

Type 21 Radiator

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

Low height steel radiator with flat panels suitable for wall or floor or under bench and under ceiling mounting.

Jump to:
+44 (0)24 7688 1200 Website

Application

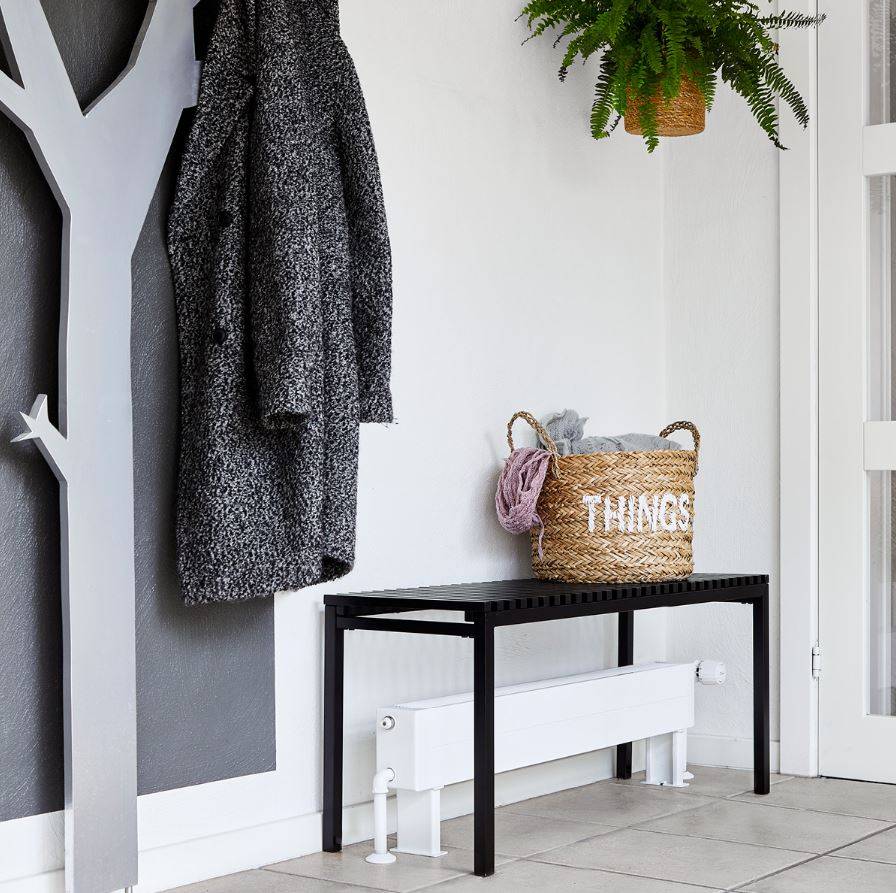

Suitable for wall or floor or under bench and under ceiling mounting.

Description

Piso is a robust and compact low convector. Thanks to the low construction height of max. 280 mm, Piso works well in buildings with limited space, but with large power requirements. Piso has high performance measured in size and is offered with many different installation solutions, several different brackets and can therefore be placed under benches, ceilings, on the wall and can also be used as a regular lowline radiator with different leg solutions.


Features and benefits:

  • Pre-treatment by degreasing and steel phosphating in accordance with DIN EN 442 and DIN EN 12476.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 6 bar in accordance with EN 442.
  • Panels: profiled steel tubes 70 x 11 x 1.8 mm.
  • Convectors: 0.4 mm cold-rolled steel plate.

General information

Color

White

Guidance for specification option:

White RAL 9016 70% Gloss.

Other

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

800 mm

900 mm

1000 mm

1200 mm

1400 mm

Show more

Width

67 mm

92 mm

123 mm

179 mm

235 mm

Height

70 mm

140 mm

210 mm

280 mm

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Double panel single convector.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

 In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Feet.

Brackets.

Danfoss TRV Head.

Guidance for specification option:

Required for Tapping Code 11 and 12.

Panels

To EN 10130, Profiled steel tubes.

Guidance for specification option:

70 x 11 x 1.8 mm.

Heating element

To EN 10051, EN 10130 and DIN 2395, 0.4 mm cold-rolled steel plate.

Manufacturer guidance

Convectors.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

8 bar.

Operating pressure (maximum)

To EN 442, 6 bar.

Operating temperature

110°C.

Height

70 mm.

140 mm.

210 mm.

280 mm.

Depth

67 mm.

Length

800 mm.

900 mm.

1000 mm.

1200 mm.

1400 mm.

Show more

Tapping configuration

Tapping code 07.

Guidance for specification option:

Tapping type: CD, Right.

Tapping code 08.

Guidance for specification option:

Tapping type: AB, Left.

Tapping code 09.

Guidance for specification option:

Tapping type: Serial connection.

Tapping code 10.

Guidance for specification option:

Tapping type: ABCD.

Tapping code 11.

Guidance for specification option:

Tapping type: FF built-in valve (6 tap right).

Danfoss TRV Head required.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Latvia

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark
