Hudevad Plan XV Power - Electric Radiator
Verified by manufacturer 22 days ago
1.25 kW Radiator 1800 x 510 x 79 mm
1.25 kW Radiator 1800 x 510 x 79 mm

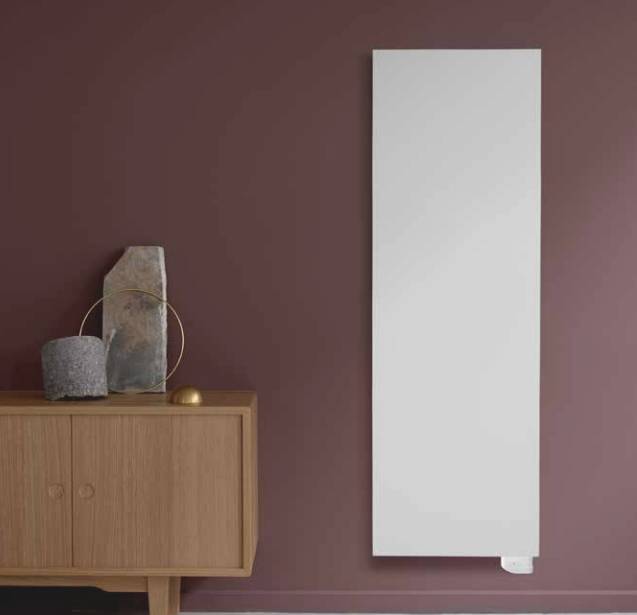

Flat front slim electric radiator.
Application
Suitable for internal heating applications.
Description
Hudevad Plan XV Power is the same design as the vertical Plan XV radiator, but it is an electric version. The Plan XV Power has a smooth front plate cover made from 2 mm steel and closed sides and a standard slim design. The radiator is prefilled with heating liquid and mounted with an RF thermostat.
Features and benefits:
- Control modes: Auto, comfort, eco, and frost protection.
- Super comfort function.
- Boost function.
- Open window detection.
- Child safety control lock.
- Slimline.
- Flat front and closed sides.
- IPX4 radiator rating, IP20 thermostat rating.
General information
Color | White Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 510 mm 610 mm 710 mm |
Width | 79 mm |
Height | 1800 mm |
Warranty description | Ten year Guidance for specification option: Radiator warranty. Two year Guidance for specification option: Electrical components warranty. |
Uniclass | |
CAWS | V90/590 Equipment |
Specification data - Room heaters
Third party certification | EcoDesign 2018 (EU Regulation 2015/1188). |
Room heaters type | Panel. |
Output | 1.25 kW. |
Finish | Powder-coated, white RAL 9016, gloss 70.Guidance for specification option: To EN 442. Powder-coated, other colours.Guidance for specification option: To EN 442. See manufacturers colour range and insert requirements. |
Dimensions | 1800 x 510 x 79 mm. |
InputPower | 220–240V, 50 Hz. |
Ingress protection (IP) rating | Radiator: IPX4. |
TemperatureRange | 10–30℃. |
Integral accessories | RF thermostat, wall brackets. |
Sustainability data
Material | Steel |
Literature
Hudevad Plan-XV-Power Data Sheet
Plan XV Power Manual
