Hudevad SC Vertical - Radiator

Verified by manufacturer 7 days ago

Type 14 Radiator

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

  • DoP

    DoP

    Certificate type

Floor or wall-mounted steel element radiator in open design.

Jump to:
+44 (0)24 7688 1200 Website

Application

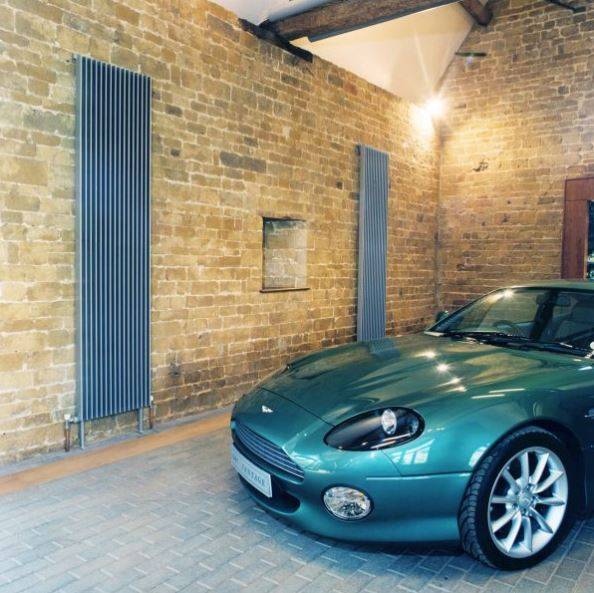

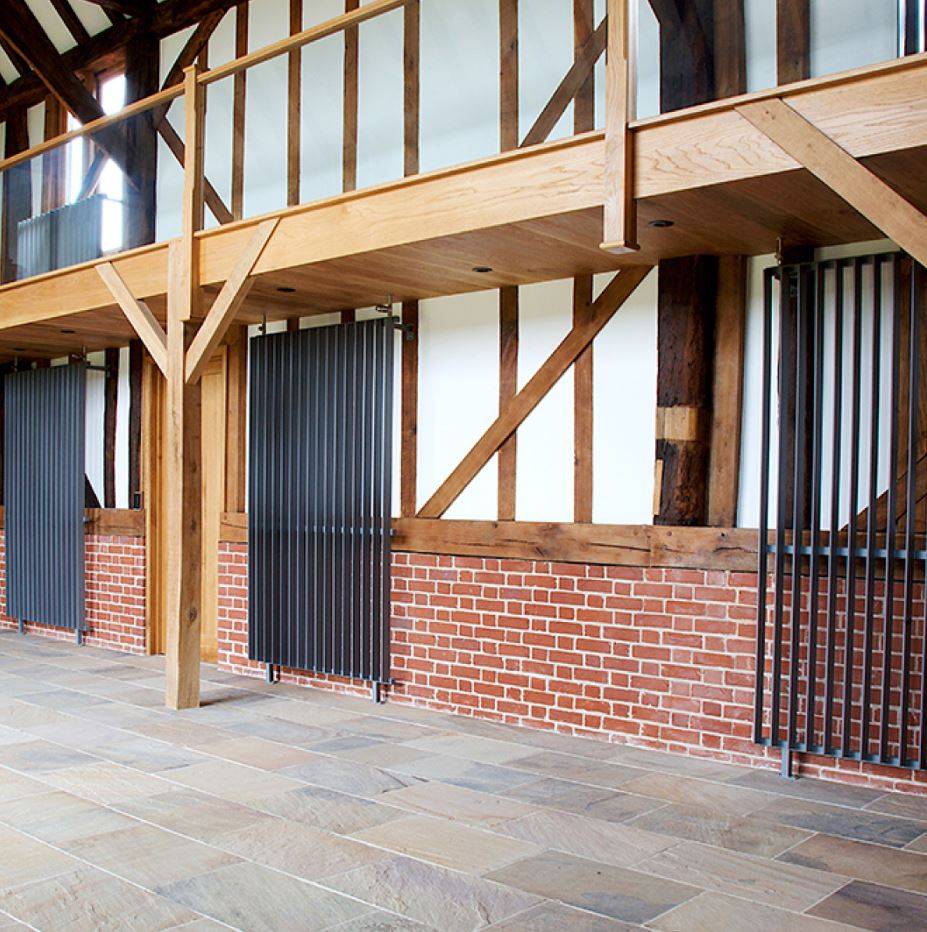

Suitable choice for the interior of any room. Suitable for the use where space is limited, to prevent cold drafts from large window areas or where natural light is in focus.

Description

The Hudevad SC Vertical radiator has a high-end and timeless design that is customizable for to suit any environment. The radiator doesn’t block the light, as its flat elements are spaced and angled for optimal effect and ’air’.


The SC Vertical radiator is optimal for many applications due to its design that blends into the room architecture without stealing focus.


Features and benefits:

  • Pre-treatment by alkaline degreasing and a layer of zirconia as conversion coating.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 7.7 bar in accordance with EN 442.
  • Top and bottom tubes: Square steel tube 35 x 35 x 2.5 mm to EN 10305-5.
  • Flat tube elements: Steel tube 70 x 11 x 1.9 mm to EN 10305-5.

General information

Color

White

Guidance for specification option:

White RAL 9016 70% Gloss.

Other

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

400 mm

460 mm

480 mm

560 mm

580 mm

Show more

Width

98 mm

160 mm

Height

1200 mm

1400 mm

1500 mm

1600 mm

1800 mm

Show more

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Single steel column.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Bracket SB20.

Bracket SB82.

Spacer.

Fixed feet.

Top and bottom rail

To EN 10305-5, square steel tube.

Guidance for specification option:

35 x 35 x 2.5 mm.

Manufacturer guidance

Top and bottom tube.

Tube

To EN 10305-5, steel tube.

Guidance for specification option:

70 x 11 x 1.9 mm.

Manufacturer guidance

Flat tube elements.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

10 bar.

Operating pressure (maximum)

To EN 442, 7.7 bar.

Operating temperature

95°C.

Height

1200 mm.

1400 mm.

1500 mm.

1600 mm.

1800 mm.

Show more

Depth

98 mm.

Length

400 mm.

460 mm.

480 mm.

560 mm.

580 mm.

Show more

Spacing

40 mm.

Tapping configuration

Tapping code 27.

Guidance for specification option:

Tapping type: E/F, no valve, flow left.

Tapping code 28.

Guidance for specification option:

Tapping type: E/F, no valve, flow right.

Tapping code 29.

Guidance for specification option:

Tapping type: Top tapping, G/H, no valve, flow left.

Tapping code 30.

Guidance for specification option:

Tapping type: Top tapping, G/H, no valve, flow right.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Denmark

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark

DoP

DoP

Hudevad SCE 40/60 & SCD 40/60 Vertical DoP

Literature

Hudevad SC Vertical

Hudevad SC Vertical
