Hudevad Tube - Radiator

Verified by manufacturer 3 months ago

Tube ∅ 33.7 mm (DN25)

Hudevad Radiator Design A/S Variant:
Third party certifications:
  • Independent sustainability assessment

    Independent sustainability assessment

    Certificate type

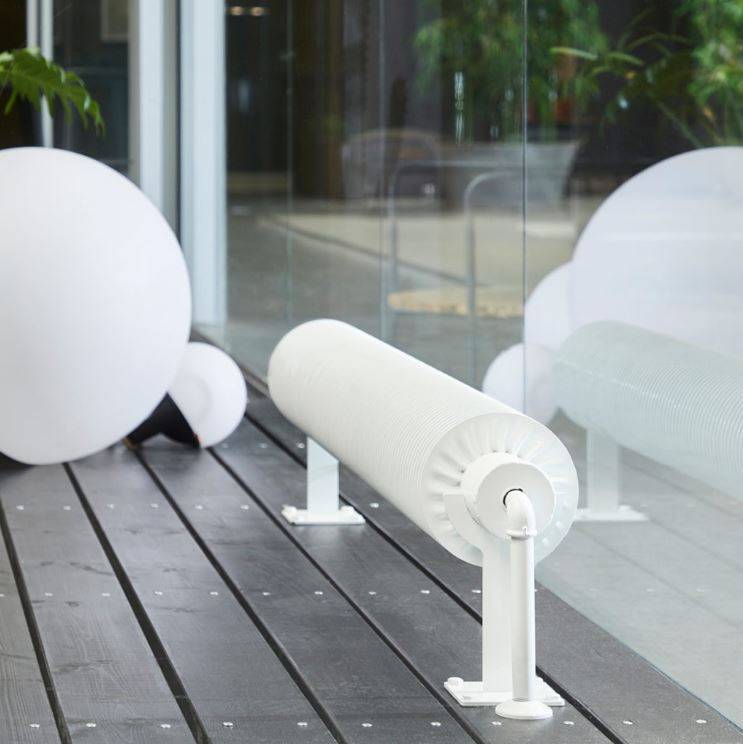

Floor, Freestanding or Wall mounted steel, finned tube radiator.

Jump to:
+44 (0)24 7688 1200 Website

Application

Suitable for heating under glass sections and skylights.

Description

The Tube is a classic finned tube radiator. The radiator has a industrial design made with elements in Swedish quality steel. It has high performance and durability and a simple design. Tube is suitable for heating under glass sections and skylights.


Features and benefits:

  • Degreasing, corrosion protection, phosphating and powder coating in accordance with DIN EN 12476.
  • Powder coated in accordance with DIN 55900, EN 442.
  • Max operating pressure 10 bar in accordance with EN 442.
  • Minimum 1.5 mm cold-rolled steel according to EN 10305-3 and 10305-5.

General information

Color

White

Other

Finish

Powder-coated

Material

Steel

Shape

Other

Circle

Length

400 mm

600 mm

800 mm

1000 mm

1200 mm

Show more

Width

33.7 mm

48.3 mm

60.3 mm

76.1 mm

88.9 mm

Show more

Manufacturer guidance

Tube diameter.

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_70_60_36_73 RadiatorsPrimary

CAWS

T90/465 Radiators

T90/465 Radiators

Specification data - Radiators

Standards

To BS EN 442-1 and BS EN 442-2.

Radiator type

Finned tube radiator.

Output

Guidance for specification option:

Consult manufacturer and insert requirements.

Finish

Powder-coated.

Guidance for specification option:

In accordance with DIN 55900, EN 442.

Connections

Guidance for specification option:

Consult manufacturer and insert requirements.

Manufacturer guidance

All connections 1/2” standard.

Accessories

Not required.

Floor brackets.

Guidance for specification option:

64125x.

Floor brackets must be ordered separately (x in item number indicates tube diameter).

Standard wall brackets.

Guidance for specification option:

64122x.

Wall brackets must be ordered separately (x in item number indicates tube diameter).

Only for Tube ø33.7 mm and ø48.3 mm.


Material

To EN 10305-3 and EN 10305-5, 1.5 mm cold-rolled steel.

Tube diameter

33.7 mm.

Guidance for specification option:

DN25.

Diameter

84 mm.

Manufacturer guidance

Rib diameter.

Tubes

One.

Two.

Three.

Colour

White RAL 9016, gloss 70.

Guidance for specification option:

Standard.

Other.

Guidance for specification option:

Can be painted in other colours. Insert requirements.

TestPressure

13 bar.

Operating pressure (maximum)

To EN 442, 10 bar.

Operating temperature

110°C.

Length

400 mm.

500 mm.

600 mm.

700 mm.

800 mm.

Show more

Tapping configuration

Tapping code 10.

Guidance for specification option:

Tapping type: ABCD.

Model: KR, KR2, KR3, Freestanding.

Manufacturer guidance

See manufacturer literature for more information.

Sustainability data

Contains Red List materials

No

Country of material origin

Sweden

Country of product manufacture

Latvia

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Independent sustainability assessment

Independent sustainability assessment

Green Building Council Denmark
