Hush-Pro BS 5839-6 Grade C Residential Fire Alarm System
Verified by manufacturer 5 months ago
BRE Certificate
Certificate type
Provides fully monitored BS 5839-6 Grade C compliant fire detection, alarm, silencing and test facilities in domestic dwellings such as flats and apartments.
Application
Domestic dwellings such as flats and apartments.
Description

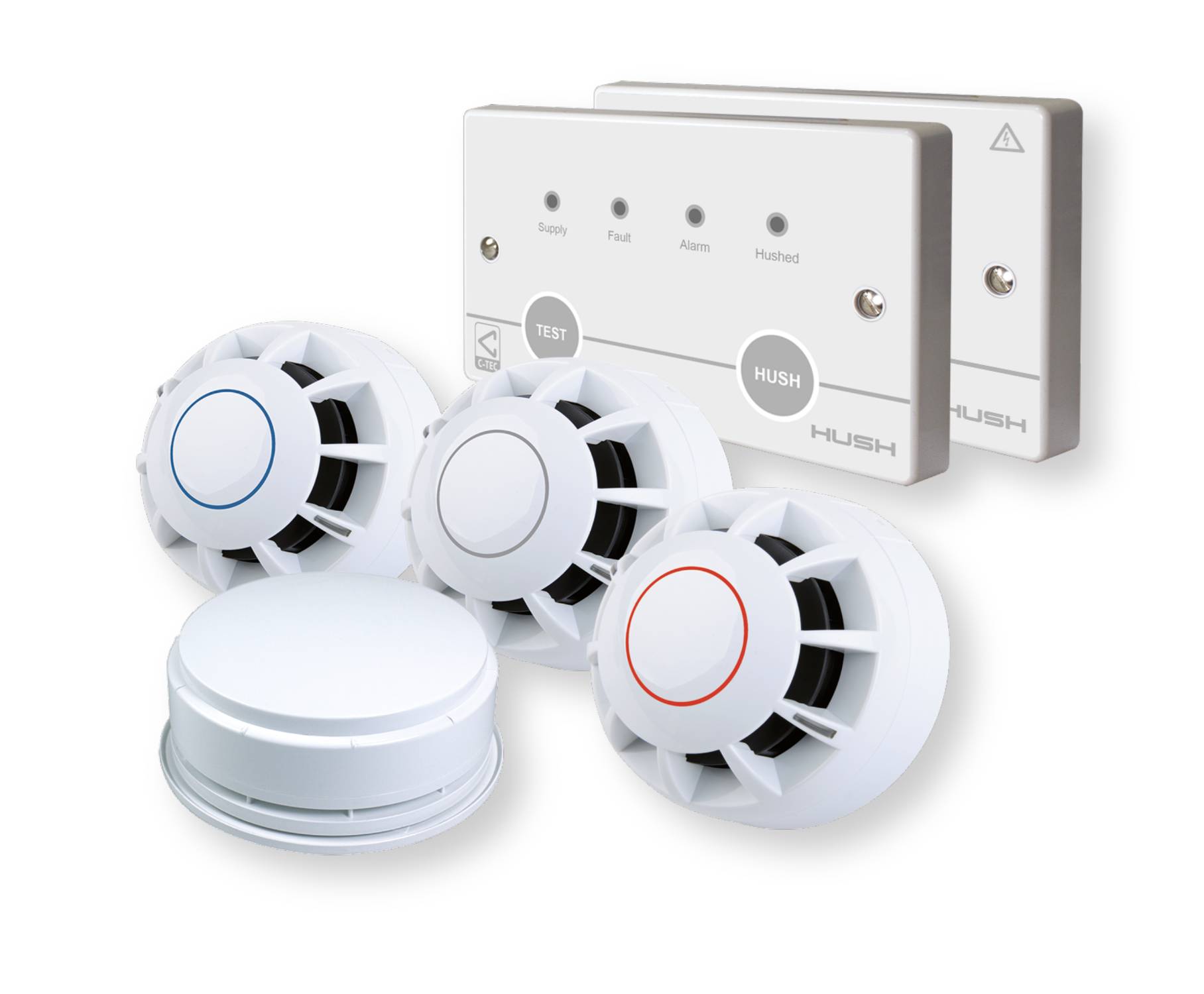

Hush-Pro by C-TEC provides fully monitored BS 5839-6 Grade C compliant fire detection, alarm, silencing and test facilities in domestic dwellings such as flats and apartments. As well as putting residents firmly in control of their own fire systems by allowing them to test and silence devices whilst standing at floor level, multiple Hush-Pro systems can be interfaced to a landlord system in a tall building to help make stay-put safer.
When used to its full potential, Hush-Pro can report fires, faults and other system data outside dwellings for action and analysis and provide the fire and rescue service with manual evacuation controls. Visual alarms, voice sounders, cooker shut-off relays, door release interfaces, sprinkler monitoring interfaces, telecare systems, vent controllers and more can all be easily added to the system making Hush-Pro the perfect solution for all high-rise, mixed-use residential buildings and many other domestic dwellings.
General information
Color | Grey |
Finish | Other |
Material | Plastic |
Shape | Other Guidance for specification option: Main Hush-Pro fire alarm controller is rectangular in shape; detectors, sounders and visual alarm devices are round; Additional interface units vary in shape. |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | W90/125 Fire detection and alarm systems in non-domestic premises W90/120 Fire detection and alarm systems in domestic premises |
Specification data - Domestic premises' fire detection and alarm systems
Detection devices | Hush-Pro Optical Smoke Detector (HP416).Guidance for specification option: A high-quality smoke detector for use with C-TEC’s HP508 Hush-Pro BS5839-6 Grade C Controller. Measures 102 mm diameter x 37 mm deep. Requires a HP408 detector base. Hush-Pro 60°C Fixed Temperature Heat Detector (HP402).Guidance for specification option: A high-quality Type A2 fixed temperature (60°C) heat detector for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Measures 102 mm diameter x 37 mm deep. Requires a HP408 detector base. Hush-Pro Multi Sensor Fire Detector (HP414).Guidance for specification option: A high-quality multi-sensor fire detector for use with C-TEC’s HP508 Hush-Pro BS5839-6 Grade C Controller. Can generate Fire Level 1 (local alarm) and Fire Level 2 (confirmed alarm) signals. Measures 102 mm diameter x 37 mm deep. Requires a HP408 detector base. |
Controls | Hush-Pro BS5839-6 Grade C Fire Alarm Controller (HP508).Guidance for specification option: Provides fully monitored BS 5839-6 Grade C compliant fire detection, alarm, silencing and test facilities in flats and apartments that can be operated by occupants whilst standing at floor level. Easily interfaced to Hush-Pro fire detectors & fire alarm devices, cooker shut-off relays and sprinkler monitoring units. Can also be optionally connected to a C-TEC ZFP CAST landlord/communal fire system in a block of flats to report fires & faults outside the dwelling and to allow the fire & rescue service to optionally evacuate the system using zonal evacuation switches. Measures 146 x 85 x 21 mm. Requires an additional HPPSU. Hush-Pro Power Supply for HP508 Controller (HPPSU).Guidance for specification option: Provides power to the HP508 Hush-Pro Controller. |
Supplementary warning devices | Hush-Pro 92dB(A) Base Sounder (HP431A/W).Guidance for specification option: A high-quality base sounder with an impressive 92dB(A) sound output for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Certified to EN54-3 & 17 by the LPCB. Measures 122 mm diameter x 46 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) alarms AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation Alarm). Optional BF330CTLIDW cap available for stand-alone use (alternatively can be mounted under a Hush-Pro detector and detector base). Hush-Pro 92dB(A) Base Sounder & VAD (HP456A/W).Guidance for specification option: A high-quality combined 92dB(A) base sounder and visual alarm device for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Certified to EN54-3, 23 & 17 by the LPCB. Measures 122 mm diameter x 46 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) alarms AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation Alarm). Optional BF330CTLIDW cap available for stand-alone use (alternatively can be mounted under a Hush-Pro detector and detector base). Hush-Pro Base Voice Sounder (HP454A/W).Guidance for specification option: Designed for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Measures 122 mm diameter x 46 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) voice messages AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation message). Optional BF330CTLIDW cap available for stand-alone use (alternatively can be mounted under a Hush-Pro detector and detector base). Hush-Pro Base Voice Sounder & VAD (HP457A/W).Guidance for specification option: Designed for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Measures 122 mm diameter x 46 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) voice messages AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation message). Also includes an onboard VAD to visually indicate relevant alarm signals. Optional BF330CTLIDW cap available for stand-alone use (alternatively can be mounted under a Hush-Pro detector and detector base). Hush-Pro Weatherproof Hi-Output Wall Sounder (HP430A/DR/65).Guidance for specification option: An IP55/65 rated weatherproof hi-output sounder designed for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Measures 114 mm diameter x 131 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) voice messages AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation Alarm). Also includes an onboard VAD to visually indicate relevant alarm signals. Hush-Pro Weatherproof Hi-Output Wall VAD c/w 100 dB(A) Sounder (HP433A/DR/65).Guidance for specification option: Designed for use with C-TEC’s HP508 Hush-Pro BS 5839-6 Grade C Controller. Measures 114 mm diameter x 131 mm deep. Can generate Fire Level 1 (local) and Fire Level 2 (confirmed) voice messages AND, if connected to an appropriate ZFP CAST landlord/communal fire alarm system, a Fire Level 3 (Evacuation Alarm). Also includes an onboard VAD to visually indicate relevant alarm signals. |
System accessories | Hush-Pro Detector Base (HP408).Guidance for specification option: Compatible with all Hush-Pro detectors. Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all Hush-Pro detectors. Hush-Pro Fire Level 1 Mains Switching I/O Module (HP731).Guidance for specification option: A double gang mains-switching interface module that can be used with third party devices to trigger a Fire Level 1 (Local Alarm) on a Hush-Pro Domestic Fire Alarm System. Measures 146 x 85 x 21 mm. Hush-Pro Fire Level 2 Mains Switching I/O Module (HP732).Guidance for specification option: A double gang mains-switching interface module that can be used with third party devices to trigger a Fire Level 2 (Confirmed Alarm) on a Hush-Pro Domestic Fire Alarm System. Measures 146 x 85 x 21 mm. Hush-Pro Fire Level 1 Mini I/O Module (HP734).Guidance for specification option: A miniature interface module that can be used with third party devices to trigger a Fire Level 1 (Local Alarm) on a Hush-Pro Domestic Fire Alarm System. Measures 65x 60 x 20 mm so it can fit into equipment with limited space. Hush-Pro Fire Level 2 Mini I/O Module (HP735).Guidance for specification option: A miniature interface module that can be used with third party devices to trigger a Fire Level 2 (Confirmed Alarm) on a Hush-Pro Domestic Fire Alarm System. Measures 65 x 60 x 20 mm so it can fit into equipment with limited space. Hush-Pro Landlord System Interface for connection to CAST Protocol Systems (HP733/CA).Guidance for specification option: Allows a stand-alone Hush-Pro domestic fire alarm system to be connected to a ZFP CAST landlord/communal system to unlock a series of powerful optional features such as remote off-site monitoring via the Cloud, automatic evacuation of dwellings in a confirmed alarm conditions, manual keyswitch evacuations. Measures 146 x 85 x 21 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Plastic |
Recyclability | Hush-Pro has many environmental benefits over many of the lower Grade fire detection and alarm systems typically used in residential applications. These include (1) Fewer batteries - only one stand-by battery is required per system as opposed to one per device; (2) Less plastic - Hush-Pro systems use less plastic than most lower Grade systems and its detector bases can normally be re-used even when a detector head needs changing; (3) Less power - Hush-Pro uses around 50% less power than most lower Grade systems; (4) A remote Cloud-based monitoring software option - when Hush-Pro is connected to a landlord system interfaced to our Envision data management software, fault-finding can be carried out off-site to help reduce unnecessary call outs and maintenance visits. |
Third party certifications
BRE Certificate
Hush-Pro Heat Detector BRE/LPCB Cert to EN54-5 & 17
Literature
Hush-Pro Consultants Specification
Hush-Pro Brochure
Hush-Pro Wiring Schematics
Hush-Pro Installers Guide
Hush-Pro Users Guide
Case studies
Raising the Grade!
