HydroChill HC45 Under Counter

Verified by manufacturer 2 months ago

HC45T128

Zip Water Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Under-counter chilled and ambient water dispenser.

Jump to:
BOS
+44 (0)345 6 005 005 Website

Application

For a range of applications.

Description

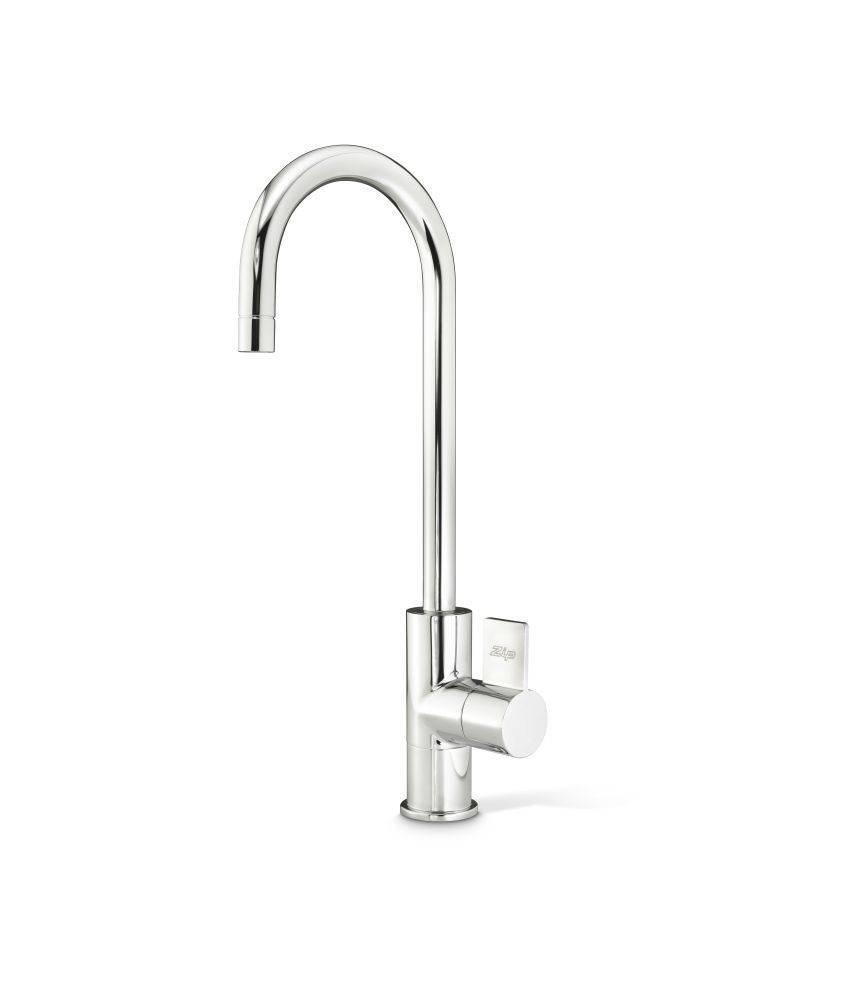

HydroChill HC45 under counter chilled water dispensing with heavy-duty tap and 3 micron, Zip MicroPurity filtration. With a capacity of 28 litres per hour, and the capability for one-touch filling of bottles and carafes.


Features and benefits:

  • Pure tasting filtered chilled or ambient drinking water.
  • Can be fitted on a sink or optional font.
  • Advanced 3 micron MicroPurity filtration.
  • Can produce up to 37 bottles (750 ml) per hour between 5–12°C.

General information

Color

Black

Finish

Polished

Material

Brass

Guidance for specification option:

Chrome plated.

Length

343 mm

Width

181 mm

Height

378 mm

Warranty description

One year

Guidance for specification option:

One year on site parts and labour warranty.

Uniclass

Pr_40_70_15_96 Water coolersPrimary

CAWS

N12/340 Appliances

N12/340 Appliances

N11/40 Appliances

N13/379 Drinking fountains

Product range

Under Counter

Specification data - Water coolers

Arrangement

Filtered chilled water dispenser.

Filtered chilled and ambient water dispenser.

Flow rate

28 L/h.

Temperature of delivered water

5–12°C.

Water inlet

1/2" BSP.

Power supply

0.33 kW at 230 V.

Guidance for specification option:

1 x 13 A socket outlet.

Font

Not required.

Required.

Type

Chilled.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Environmental Product Declaration

Literature

HydroCare Commercial Flyer 2024

HydroCare Commercial Flyer 2024

Zip Water Commercial Price List 2024

Zip Water Commercial Price List 2024

Zip Commercial Product Guide - HydroChill

Zip Commercial Product Guide - HydroChill
