Hydropave 240 | Permeable Block Paving
Verified by manufacturer 3 months ago
Permeable concrete block paving.
Application
Suitable for residential and commercial applications when used in conjunction with the correct sub-base design and in accordance with the latest British standard.
Description
Permeable concrete block paving with larger-sized blocks to increase the speed of installation.
Features and benefits:
- The product is manufactured using a high percentage of recycled materials, giving it a low carbon footprint.
- 100% renewable energy used.
- 100% water used from rainwater harvesting system.
- Has frost protection.
- BREEAM rating B (A can be achieved when used with recycled sub-base).
General information
Color | Other Guidance for specification option:
|
Finish | Smooth |
Material | Concrete Guidance for specification option: Concrete permeable paving block. |
Shape | Rectangle |
Length | 240 mm |
Width | 120 mm |
Height | 80 mm |
Uniclass | |
CAWS | Q24/115 Permeable concrete block paving – total infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/119 Permeable concrete block paving – no infiltration |
Product range |
Specification data - Concrete paving blocks
Standard | To BS EN 1338.Manufacturer guidanceInstalled to BS 7533-3. |
Physical properties | |
Colour | Bracken.Charcoal.Natural. |
Finish | Smooth. |
Profile | |
Paver type | Regular plan form. |
Arrises | Chamfer. |
Dimensions and associated tolerances | |
Nominal sizes | 240 x 120 x 80 mm. |
Tolerances on diagonals | To BS EN 1338. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3. |
Slip resistance | Extremely low (>75 USRV). |
Skid resistance | Extremely low (>75 USRV). |
Recycled content (minimum) | BREEAM B (A can be achieved when used with recycled sub-base). |
Strength | >3.6 MPa. |
FireRating | A1. |
Efflorescence | Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence. |
Drainage void width | 6% to accommodate correct grit grading, reduced maintenance and maximise drainage flow rate. |
Permeability | 35 000 L/s/ha. |
Surface finish | Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Concrete permeable paving block. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 19.83 kg CO₂ eq/m² Self declared |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceNot less than 12% |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Hydropave - Environmentally friendly Permeable paving
Case studies

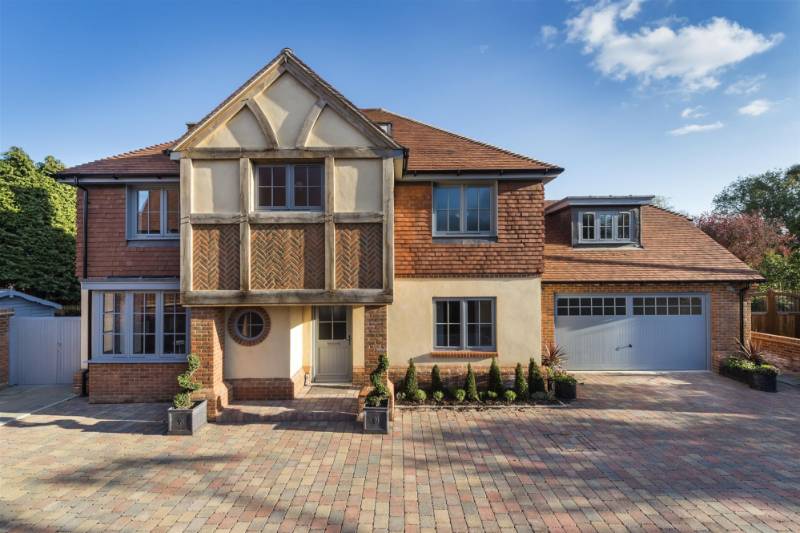

Salterns Reach, Prinstead
