Hygienic Hinged GRP Doors - Single Leaf
Verified by manufacturer 6 months ago
Single leaf, GRP frame, non-fire-rated
Single leaf, GRP frame, non-fire-rated
ADSA
Certificate type
Alcumus SafeContractor
Certificate type
BM Trada
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
Hygienic GRP single leaf door designed to reinforce hygiene in environments where infection control is paramount. Range of frame materials.
Application
Suitable for the following applications:
- Healthcare.
- Cleanrooms.
- Leisure.
- Pharmaceutical manufacturing.
- Food processing.
- Kitchens.
- Wetrooms.
Description
Specialist hygienic GRP doors of high quality, robust construction which are designed to deliver real long term value and reinforce hygiene in environments where infection control is paramount.
Features and benefits:
- Single leaf.
- Selection of frame materials.
- Fire rated-options.
- The door does not harbour bacteria and is unaffected by moisture and common cleaning chemicals, making them particularly suitable in areas that have regular and rigorous cleaning regimes.
- The door's built-in colour is aesthetically pleasing and requires no maintenance.
- Smooth and seamless, easy to clean.
- Free from voids, ledges and troublesome lippings.
- Non-porous and non-shedding.
- Water and chemical resistant.
- Will not warp, rot, swell or rust.
- Low maintenance built in colour.
- Extreme strength and durability.
Lead-lined versions also available, specified separately.
General information
Color | White Red Grey Green Blue |
Material | Glass Reinforced Plastic (GRP) Stainless steel |
Shape | Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: 12 Months Labour & Part Warranty. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Product range |
Specification data - Glass fibre-reinforced plastics (GRP) doorsets
Format | Single leaf. |
Thickness | Manufacturer's standard. |
Door leaf size | 525 x 2040 mm.625 x 2040 mm.725 x 2040 mm.825 x 2040 mm.925 x 2040 mm.1025 x 2040 mm.1125 x 2040 mm.1325 x 2040 mm.1425 x 2040 mm.525 x 2440 mm.625 x 2440 mm.725 x 2440 mm.825 x 2440 mm.925 x 2440 mm.1025 x 2440 mm.1125 x 2440 mm.1325 x 2440 mm.1425 x 2440 mm.Special order.Guidance for specification option: Bespoke sizes available upon request - contact manufacturer. |
Performance | |
Fire resistance | |
Integrity | Not applicable. |
Reaction to fire | Manufacturer guidancePlease consult manufacturer for further details. |
Acoustic performance | Manufacturer guidancePlease consult manufacturer for further details. |
Thermal | Manufacturer guidancePlease consult manufacturer for further details. |
Frame | |
Materials | GRP. |
Finish and colour | Manufacturer's standard. |
Door leaf | |
Thickness | 40 mm. |
Core | Manufacturer's standard.Guidance for specification option: High-density closed cell CFC- and HFC-free core with a thermal conductivity of 0.50 W/m·K. |
Material | GRP.Guidance for specification option: 2.5 mm-thick seamless hygienic glass-fibre reinforced moulded polyester facing. |
Finish | Smooth non-porous gelcoat.Guidance for specification option: Colour specified separately below. |
Glazing | |
Type | Double glazed laminate safety glass, 200 x 300 mm.Double glazed laminate safety glass, 200 x 600 mm.Double glazed laminate safety glass, 300 x 600 mm.Double glazed laminate safety glass, 400 x 600 mm.Double glazed polycarbonate, 200 x 300 mm.Double glazed polycarbonate, 200 x 600 mm.Double glazed polycarbonate, 300 x 600 mm.Double glazed polycarbonate, 400 x 600 mm.Manufacturer guidancePositioned 165 mm (minimum) from the leading edge or centrally in width. |
Hardware | Manufacturer guidanceA wide range is available: consult with manufacturer and insert requirement. |
Colour | White. Poppy red. Silver grey. Pastel green. Pale green. Manufacturer guidanceDoor leaf. |
Hinges | Hold open. No stop. Stop/ no-stop. Manufacturer guidanceDelrin self-lubricating nylon spring hinges with 180° swing. |
Bumpers | Polypropylene, black, 250 mm high. Polypropylene, black, 480 mm high. PVC, 2 mm thick, smooth high impact, grey. Rubber, 3 mm thick, ribbed, black. Stainless steel, 0.9 mm thick. |
FrameType | Standard. Plant on frame. |

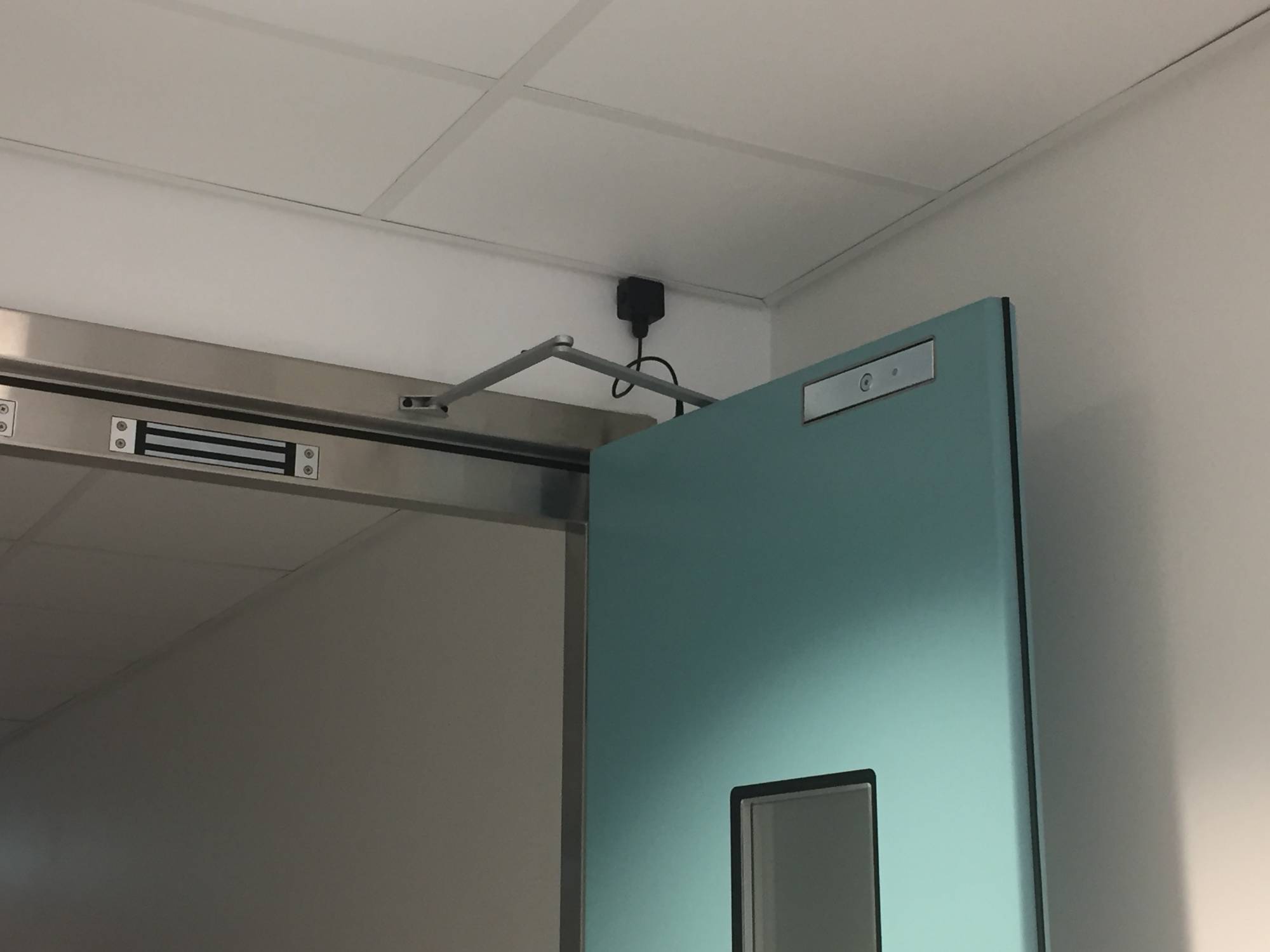

Door stoppers | Not required. Dortek flush maglock. |
Sustainability data
Country of product manufacture | Ireland Guidance for specification option: Or Sweden |
Material | Glass Reinforced Plastic (GRP) Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
ADSA
ADSA
Alcumus SafeContractor
Alcumus SafeContractor
BM Trada
BM TRADA scheme for Q-Mark Fire Door Installation to STD052
BM Trada
BM TRADA scheme for Q-Mark Fire Door Maintenance to STD058
CHAS
CHAS
Constructionline Gold
Constructionline
Literature
6. Dortek GRP Doors Colour Chart
7. Dortek Hygienic Doors Brochure
