HygienicPro® drain
Verified by manufacturer 6 months ago

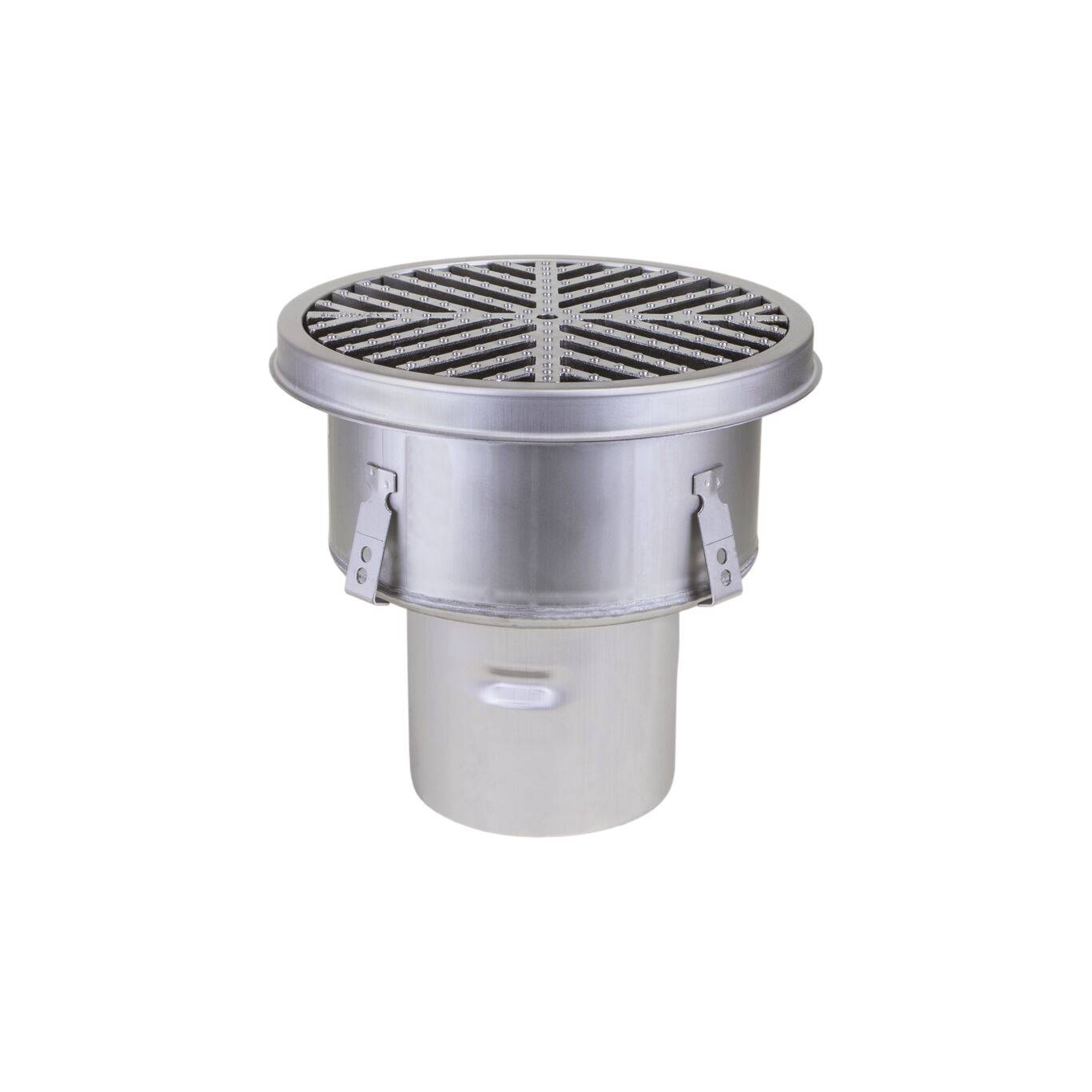

755.513.110 HygienicPro Industrial Drain Type 755
755.513.110 HygienicPro Industrial Drain Type 755
A range of floor drains for the food processing industry.
Application
For resin and concrete/ tiled flooring in:
- Production areas with strict hygiene requirements, mainly the food processing industry.
Description
A range of stainless steel floor drains for production areas with strict hygiene requirements. Suitable for resin, concrete and tiles floors.
Features and benefits:
- Designed without corners or cavities inside.
- 1.5 mm material thickness.
- 15 mm frame width.
- Manufactured from AISI 304/ EN 1.4301 or AISI 316/ EN 1.4404 stainless steel.
General information
Color | Silver |
Material | Stainless steel |
Shape | Circle |
Length | 305 mm |
Width | 305 mm |
Height | 196 mm 275 mm 299 mm 376 mm 378 mm |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains |
Specification data - Floor gullies
Body | |
Configuration | 562.102.000 S Removable Two-Part Water Trap Type 562.10.525.090.110 S P-Trap 87.5° Type 525.090. |
Material | Stainless steel grade 1.4301 (AISI 304).Stainless steel grade 1.4404 (AISI 316L). |
Cover or grating | |
Cover or grating type | HygienicPro Grating Circle. |
Material | Stainless steel grade 1.4308 (AISI 304C). |
Outlet | Vertical one-part fixed. |
Load class (minimum) | R 50. |
Integral accessories | None.780.004.010.05 - HygienicPro Filter Basket Type 780.780.004.020.05 - HygienicPro Filter Basket Type 780.780.004.030.05 - HygienicPro Filter Basket Type 780.780.400.110.05 - Outlet filter.Guidance for specification option: For drains with vertical outlet. 670.000.010 - HygienicPro Spacing Ring for Filter Basket.Guidance for specification option: For medium or high filter basket used together with a P-trap. 670.000.022 - HygienicPro Tile Adaptor for Drain.Guidance for specification option: For drains mounted in tiles. 670.005.000 - Funnel for grating. |
Overall height | 275 mm. |
Sustainability data
Recyclability | 100% |
Literature
BLUCHER Hygenic Pro
