Hygipod IPS - Integrated Plumbing System Unit

Name: Hygipod IPS - Integrated Plumbing System Unit
Brand: Trovex
SKU: fci8saJ9tCe3vCbLF7dxEt

Verified by manufacturer 13 days ago

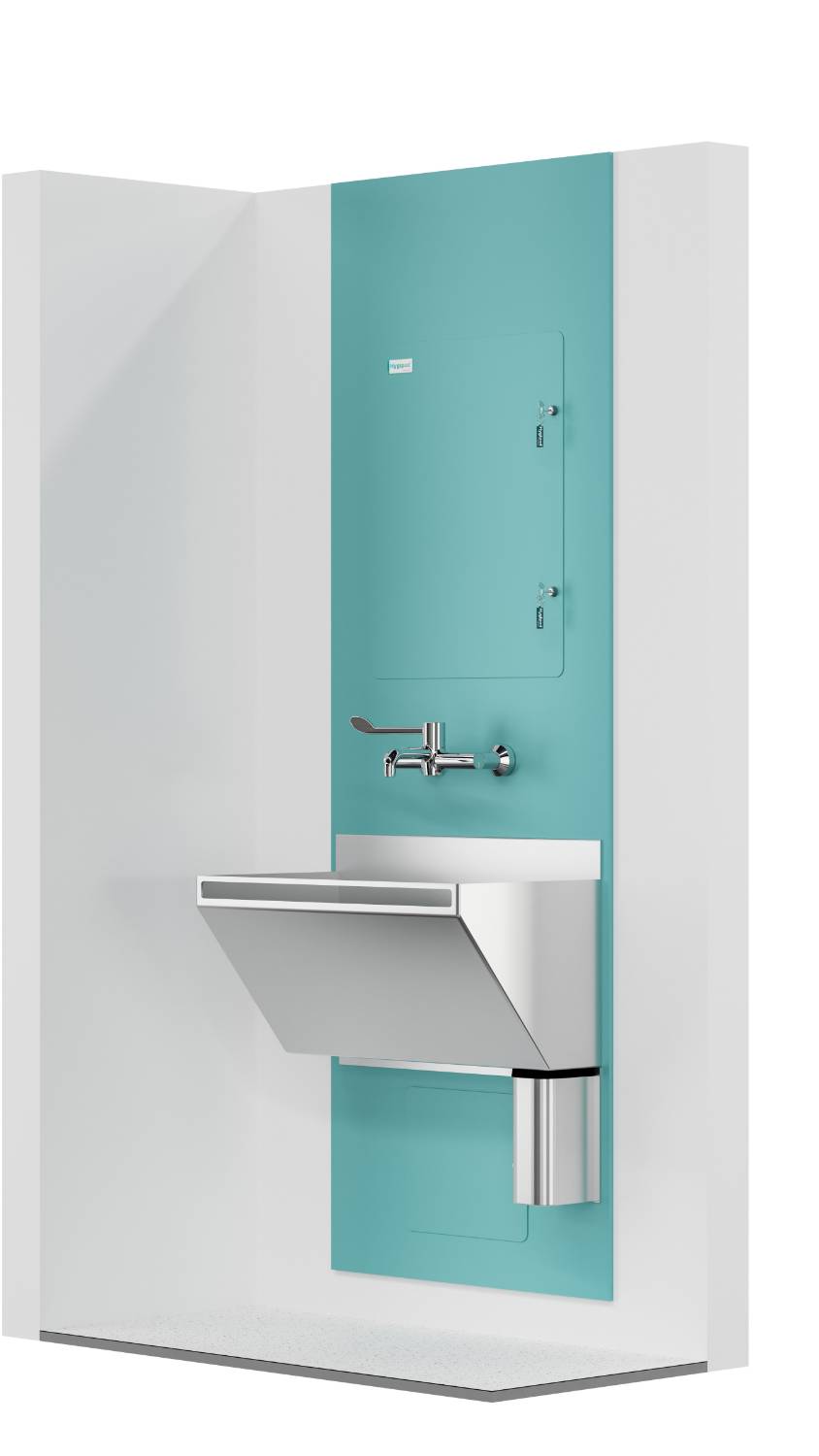

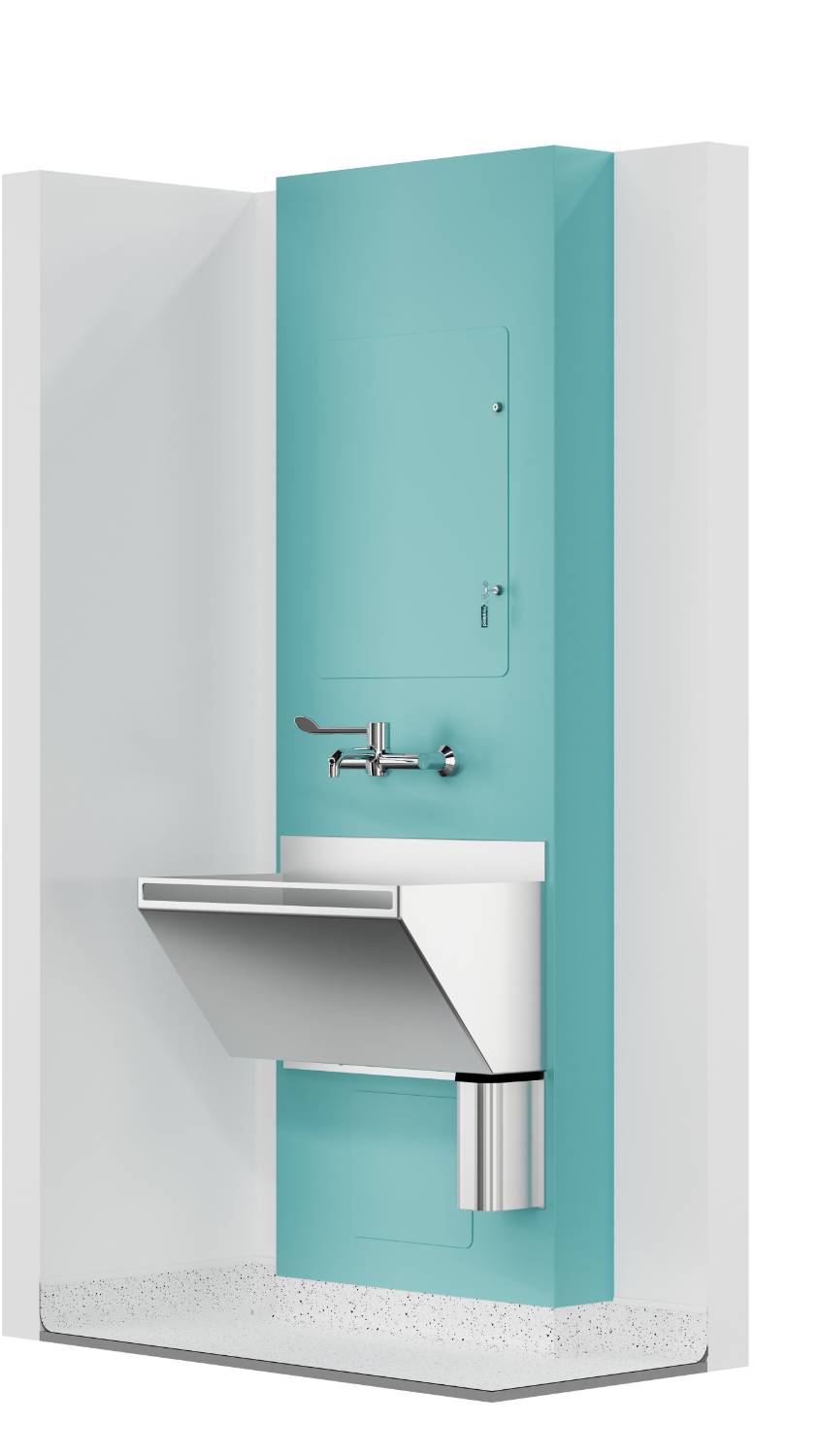

1-Person Scrub

Prefabricated modular and configurable integrated plumbing system supplied with pre-installed sanitaryware, cooper or steel pipework. Supplied with or without plinth system.

Jump to:

+44 (0)1707 254170 Website

Application

Suitable for use within healthcare environments, laboratories and other environments where infection control is paramount.

Description

Hygipod IPS are integrated plumbing systems and modular units that can be configured to suit the application use needed.

Uses can include, but are not limited to:

Clinical wash hand basins
Sluices
Doc M packages

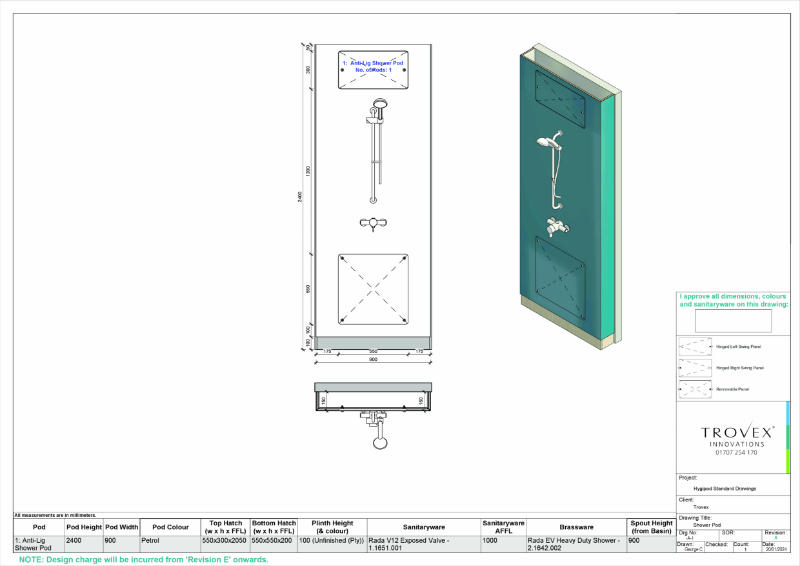

Showers
Scrubs
Slop-hoppers
Janitorial units
and more..

Features:

Hygienic PVC finish
Over 45 colours and finishes incl. woodgrains
Supplied with healthcare compliant sanitaryware
Delivered prefabricated
Pre-plumbed with copper or steel pipework
180° hinged lockable access doors
Thermoformed corners / minimal joins
Robust Hygiboard material
Available with plinth detail

Benefits:

Enhances infection prevention
Straight forward to wipe clean
45+ colours and finishes
Complete solution for various systems
Highly configurable to suit room layouts
Simple installation process
Immediate access for maintenance with no heavy lift of panels
Fast production lead times of 2-3 weeks

General information

Color	Blue Cream Beige Green Grey Ivory Other Orange Purple Turquoise White Yellow Silver Red Black Show more
Finish	Smooth
Material	Polyvinyl chloride (PVC) Plywood
Shape	Rectangle Hexagon Square
Length	800 mm 750 mm 1200 mm 1300 mm 1700 mm 2400 mm Bespoke Show more
Width	15 mm 200 mm Bespoke
Height	1500 mm 3000 mm Bespoke

Uniclass	Pr_40_20_93_62 Pre-plumbed installation framesPrimary
CAWS	K32/160 Duct linings – preplumbed panels and proprietary frames N13/66 Pre-plumbed frame system N12/380 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes N13/500 Pre-plumbed frame system

Product range	Hygipod IPS

Specification data - Pre-plumbed installation frames

Form	Support frames with copper pipework and pre-plumbed waste. Support frames with steel pipework and pre-plumber waste.
Materials	Thermoformed PVC, plywood. Guidance for specification option: 2.5 mm PVC exterior, 12 mm marine-grade ply core with 1 mm PVC interior.
Size	800 x 3000 x 15 mm. Guidance for specification option: Trovex Hygipod 1-Person Flat Flat, single panel. Finishes 100 mm above FFL. 800 x 3000 mm. Guidance for specification option: Trovex Hygipod 1-Person Flush Flush, single panel. Supplied with plinth that elevates the Hygipod 100 mm above floor level. The Hygipod 2.5 mm PVC exterior finish overlaps beyond the aperture by 28 mm either side to enable welding to Trovex Diamond wall cladding. 800 x 3000 x 200 mm. Guidance for specification option: Trovex Hygipod 1-Person Full Height Double Return Full Height Double Return. Supplied with plinth or install direct to floor - Insert requirements. Plinth is recommended as the most hygienic finish. Vinyl flooring runs up plinth under the Hygipod IPS ensuring effective water run-off.
Accessories	Guidance for specification option: Specific brand taps available, consult manufacturer and insert requirements.

Arrangement	Single panel.
Wash basin	Guidance for specification option: Wash trough, different brands available, consult manufacturer and insert requirements.
Colour	Guidance for specification option: Available in manufacturers Diamond, Resilience or Essence colour and finish ranges, insert requirements.
Access cover	Single projection hinged with 180° opening access door that overlap body, secured by locks with square profile key.
Standards	To HBN-0010, Part C.
Ceiling fitting	Hard ceiling finish. Ducting ceiling trim finish. Manufacturer guidance Not applicable to the Trovex Hygipod Wash Hand Basin Half Height Slopping Top.
