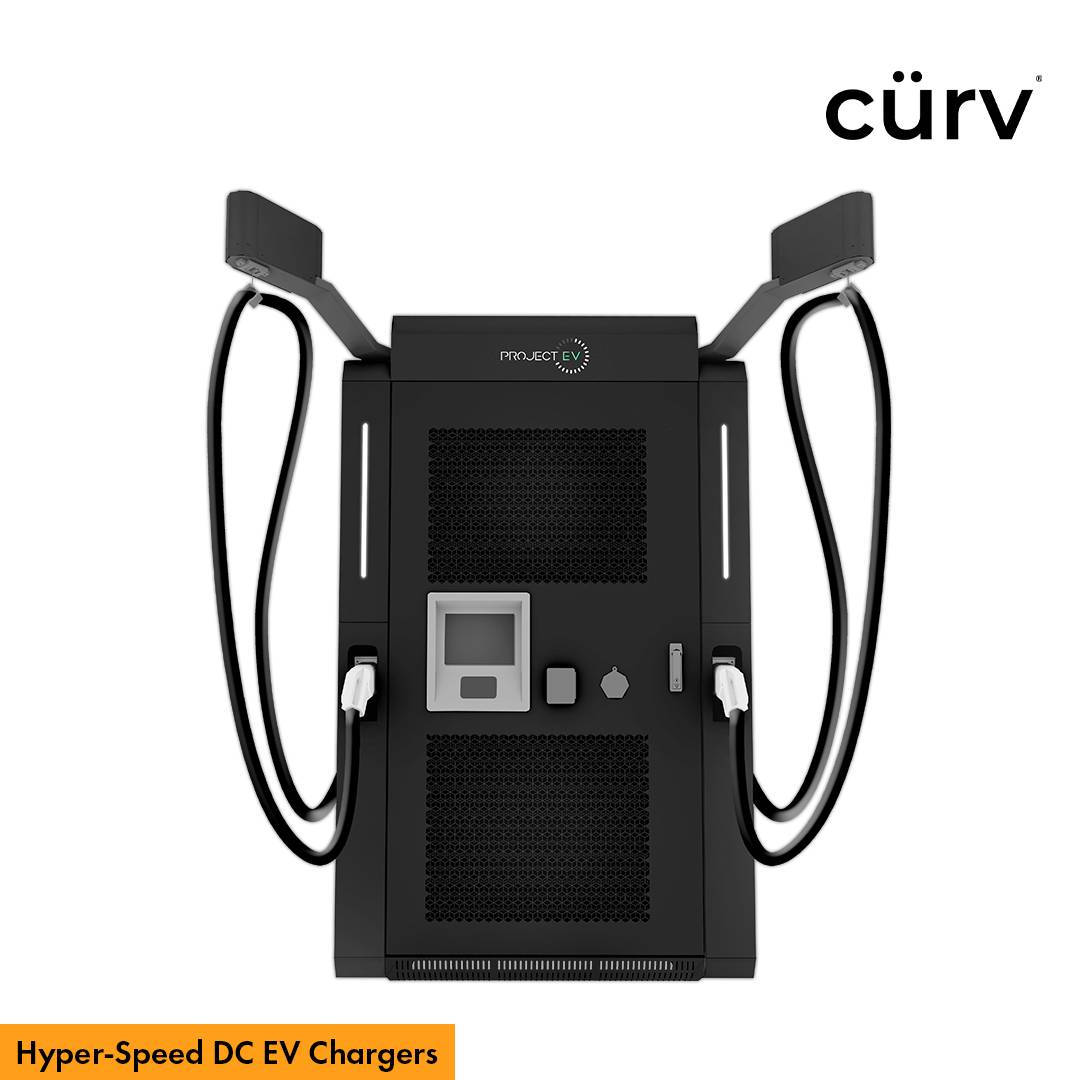

Hyper-Speed DC EV Chargers (400kW - 480kWDC) - DC Electric Vehicle Charger

Verified by manufacturer 11 days ago

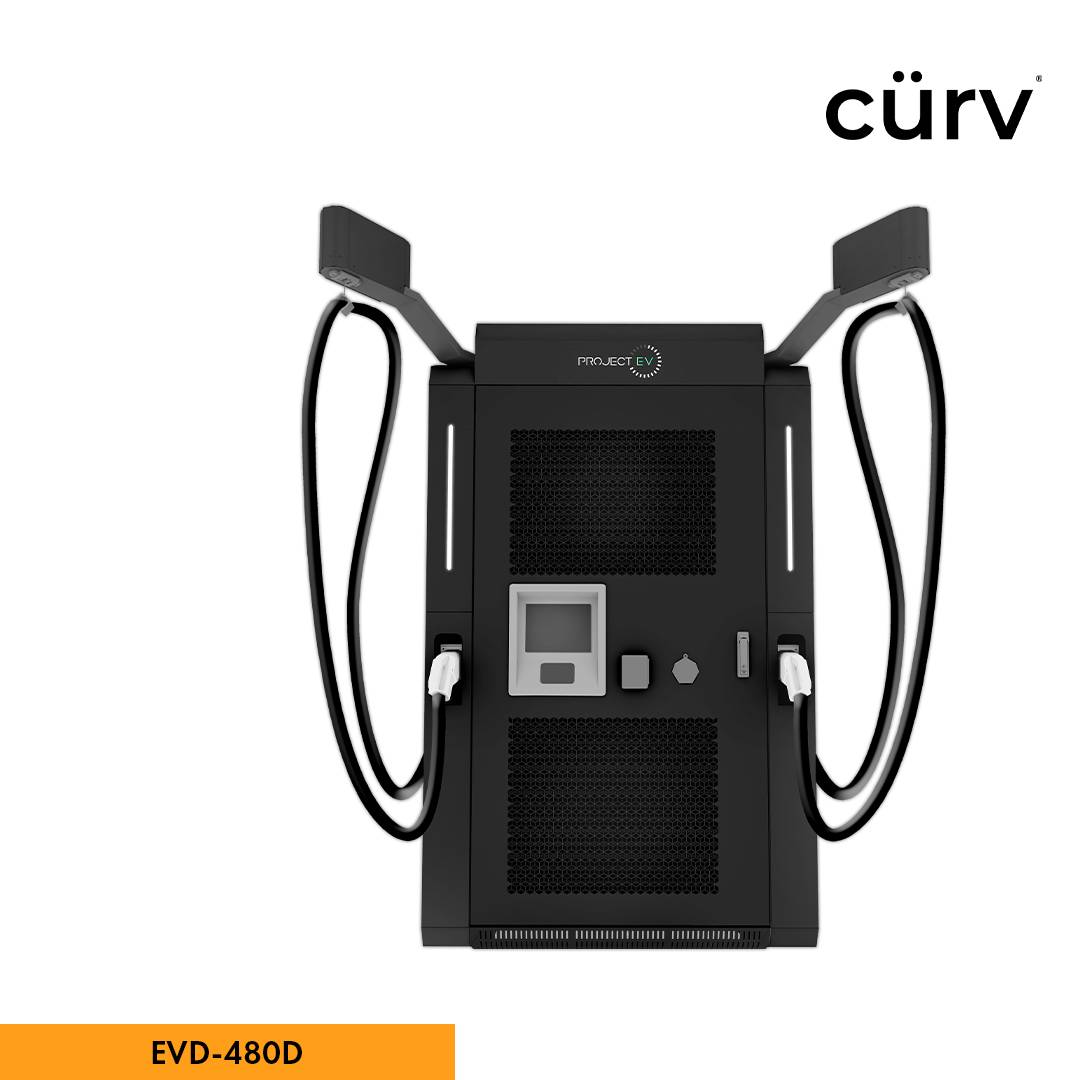

480kW Floor Mounted Dual DC EV Charger [EVD-480D]

Cürv360 Variant:

A range of DC chargers.

Jump to:
+44 0800 061 2145 Website

Application

Particularly suitable for commercial electric vehicle charging applications.

Description

The EVD-400/480-CC is a large capacity hyper-speed DC charger, with dual CCS charging outlets. With it’s high

power output, it’s perfect for commercial charging application. Being fully compatible with the Project EV Pro

App, allows for easy fleet and cost management, as well as being able to manage load balancing for larger scale

charging across multiple vehicles.


Feature and benefits:

  • 7" touch screen.
  • Ethernet/ Wi-Fi / RFID/ 4G (optional).
  • Over voltage protection.
  • Under voltage protection.
  • Over load protection.
  • Short circuit protection.
  • Earth leakage protection.
  • Over-temp protection.
  • Surge protection.
  • LED Indicator light.
  • Emergency stop button.
  • Forced air cooling.
  • CE/ UKCA marked.
  • SA8000 Accredited.
  • OZEV Approved.
  • Noise emissions: <65 dB.

General information

Color

Black

Shape

Rectangle

Length

1372 mm

Manufacturer guidance

Depth.

Width

1750 mm

Height

2100 mm

Warranty description

Five year

Uniclass

Pr_65_72_97_29 Electric vehicle charging pointsPrimary

CAWS

V90/590 Equipment

Specification data - Electric vehicle charging points

Standards

To BS EN IEC 61851-1, IEC 62196-2.

Input voltage

362–438 V a.c.

Guidance for specification option:

Rated input voltage of 400 V a.c.

Rated frequency

50 Hz.

Power output

480 kW.

Outlet type

CCS, double plugs.

Ingress protection (minimum)

To BS EN 60529, IP54.

Accessories

RFID cards.

Voltage

150–1000 V d.c.

Cable length

5 m.

Weight

732 kg.

Literature

EVD-240/480D Datasheet

EVD-240/480D Datasheet
