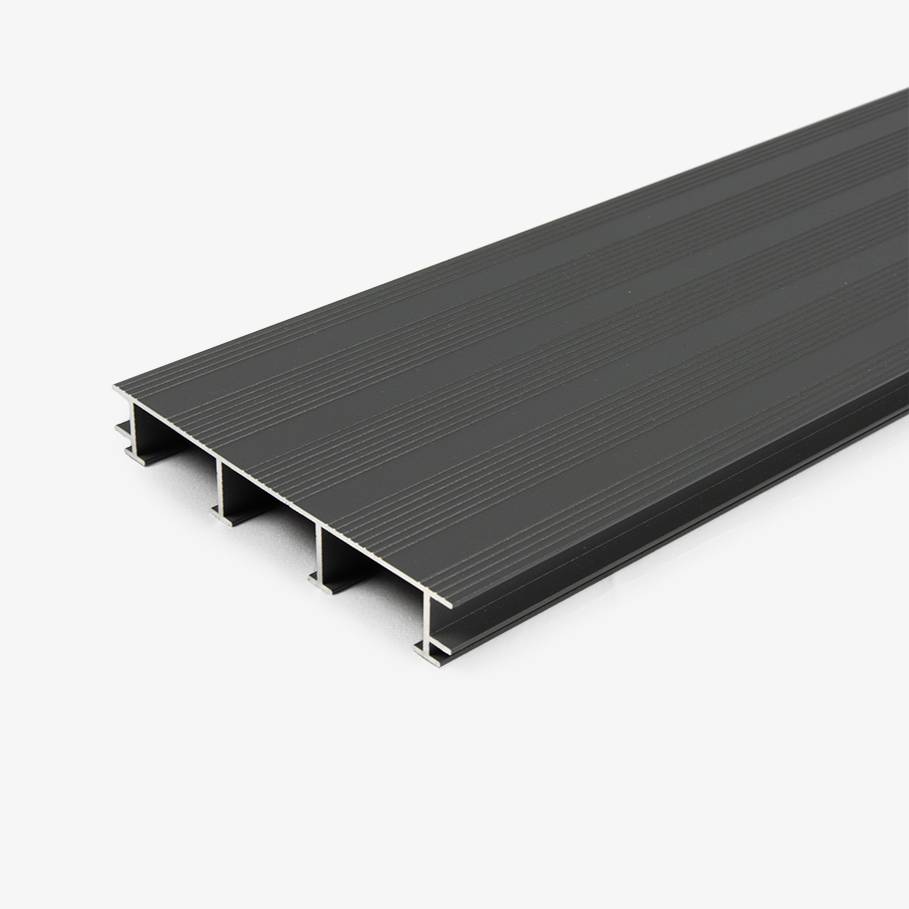

Hyperion® 145 Pro-Grip Aluminium Decking

Name: Hyperion® 145 Pro-Grip Aluminium Decking
Brand: EnviroBuild Materials Ltd
SKU: 3T6WWjdMVWsv2RabVyzvex

Verified by manufacturer 4 months ago

Third party certifications:

Class A Fire-Rated Aluminium Decking for Commercial and Residential Balconies and Terraces.

Jump to:

BOS

Application

Suitable for both residential and commercial settings.

Non-combustible decking.

Features and benefits:

Color	Grey Guidance for specification option: 7016-Anthracite Grey. 7037-Dusty Grey. Brown Guidance for specification option: 8019-Grey Brown 8014-Sepia Brown. Other Guidance for specification option: Bespoke colours available. Black Manufacturer guidance Not applicable for anodized or mill finish.
Finish	Textured Guidance for specification option: Anti-slip textured powder coat (mill or anodized finish available). Powder-coated Manufacturer guidance Anti-slip textured powder coat (mill or anodized finish available)
Material	Aluminium
Shape	Rectangle
Length	3600 mm Guidance for specification option: Bespoke lengths available. Bespoke Guidance for specification option: Orders over 1000kg. Manufacturer guidance Bespoke lengths available.
Width	145 mm
Height	21 mm
Warranty description	30 year Guidance for specification option: Up to 30 years for residential applications (Full refund up to 5 years). 15 year Guidance for specification option: Up to 15 years for commercial applications (Full refund up to 3 years).

Uniclass	Pr_25_71_51_04 Aluminium profiled sheet deckingPrimary
CAWS	Q55/110 Deck Q55/380 Deck boards

Product range	A-Class Products / Pro-Grip decking

Finish:	Anti-slip Qualicoat 1 textured powder coat. Guidance for specification option: Mill or anodized finish available.
Colour	7016-Anthracite Grey. 7037-Dusty Grey. 8014-Sepia Brown. 8019-Grey Brown. Bespoke. Guidance for specification option: Any RAL code colour available on bespoke orders. Consult manufacturer and insert requirement.
Core material	Aluminium.
Grade	T6-6063.
Section	21 x 145 mm.
Length	3.6 m.
Fasteners	Hidden clip system.
Reaction to fire	To BS EN 13501-1, A2-s1, d0, A2fl-s1.
Weight	8.55 kg/m².
Load	>4.0 kN /m². Manufacturer guidance Allowable load, uniformly distributed.
LoadBearingCapacity	1.4 kN mɻ².
Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)	To BS EN 14231, 68 dry, 46 wet. Guidance for specification option: Low slip potential.
Surface roughness (Rz) (minimum)	25 µm.
Density	2.69 g/cm³.
YoungModulus	68.3 GPa.
Tensile strength (minimum)	160 MPa.
Elongation at break	18–33%.
PoissonRatio	0.3.
Melting point	615°C.
Thermal Conductivity:	210 W/m·K.
Linear thermal expansion coefficient	2.34 x 10^-5 K.
SpecificHeatCapacity	900 J/kg·K.
Volume	30-35 nOhm/m. Manufacturer guidance Resistivity.

Contains Red List materials	No
Country of material origin	China
Country of product manufacture	China
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	6.77 kg CO₂ eq/kg Guidance for specification option: Produced with wind energy (A1-3). The rate increases to 22.72 kg·CO₂e/kg if the client decides not to use green energy.
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
