IAE Circonomy Cycle Compound - Steel Cycle Shelter

Verified by manufacturer 1 month ago

IAE Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Cost effective steel framed cycle shelter compound. Ideal for a wide range of applications and environments.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

Suitable for providing a fully lockable area for bicycles and motor scooters.


Perfect for schools, universities, workplaces, commercial sites, public transport stations, council estates and anywhere a sheltered bike storage solution is needed.

Description

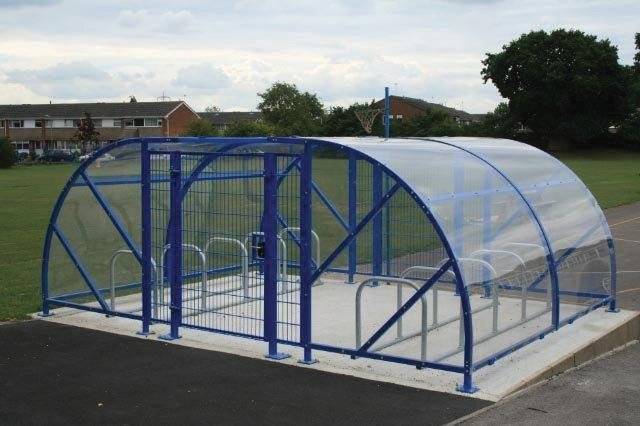

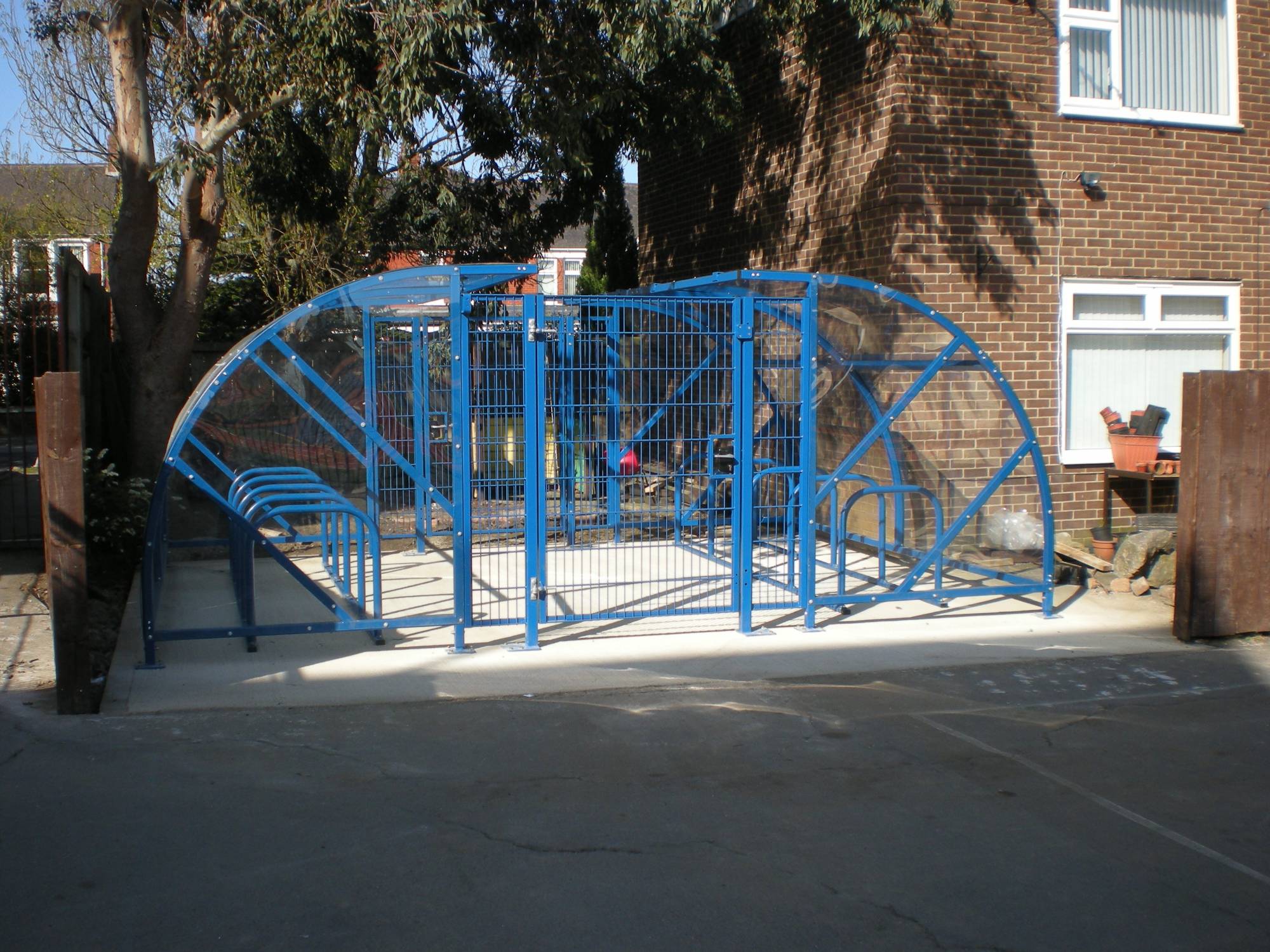

The IAE Circonomy cycle shelter compound provides a cost effective cycle storage solution for a range of environments.


Perfect for schools, universities, workplaces, commercial sites, public transport stations, council estates and anywhere a sheltered bike storage compound is needed.


The standard Circonomy cycle compound is fitted with UV resistant end panels that resist discolouring due to sun exposure, and the galvanized steel frame will resist rust and corrosion. This will allow the shelter to last a long time, even in the worst of conditions.


Fitted with IAE's Duex 868 security mesh panels and gates as standard, to provide a fully lockable secure compound area.


Inline modular design allows flexibility in choosing the size of the cycle storage capacity.


Features and benefits:

  • Available from stock for fast lead times.
  • Cost effective for an outdoor cycle storage compound.
  • Centre roof panel as standard creates a fully sheltered area.
  • 2 x Toast style 10 cycle racks supplied as standard.
  • Robust 50x50mm steel frame assembled with anti-tamper bolts.
  • 4 mm UV resistant PETG cladded roof and end panels.
  • Adjustable feet for easy on site levelling.
  • Welded end frame with Anti-Climb cladding as standard.
  • Hot dip galvanized to BS EN ISO 1461.


Options:

  • Powder coating to a wide range of colours.
  • Range of security mesh fencing solutions available, including locking gates with keypad entry option.

General information

Color

Finish

Powder-coated

Galvanized

Material

Steel

Polyethylene

Shape

Rectangle

Length

4205 mm

Width

5250 mm

Height

2325 mm

Warranty description

Two year

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary
Pr_20_65_78_77 Semi-closed shelters

CAWS

B91/385 Shelter

B91/330 Canopy

B91/340 Cycle shelter

Specification data - Open-sided shelters

Shelter description

Rectangular, with curved roof.

Dimensions

-

Plan size

5250 x 4205 mm.

Manufacturer guidance

Consult manufacturer and insert requirements or refer to a drawing.

Height

2323 mm high at peak.

Frame

-

Material

Structural steel.

Guidance for specification option:

50 x 50 RHS frame.

Finish

Galvanized.

Guidance for specification option:

As standard.

Galvanized and powder-coated

Guidance for specification option:

Optional.

Colour

RAL 1021.

RAL 5015.

RAL 6005.

RAL 7016.

RAL 9005.

Manufacturer guidance

Available in a range of colours. Consult manufacturer and insert requirements.

Roof covering

Polyethylene terephthalate glycol (PETG).

Openings

-

Doors

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Accessories

None.

Engraved PETG cladding.

Cycles

Not required.

Senior racks, root baseplate fixing.

Senior racks, toast rack fixing.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/kg

Self declared

Recyclability

80

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate

Literature

IAE - Circonomy Shelter - Installation Manual

IAE - Circonomy Shelter - Installation Manual
