IAE Duex Handrail Edge Barrier

Verified by manufacturer 1 month ago

IAE Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

Internal handrail safety barrier system for guarding edges and hazardous areas.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

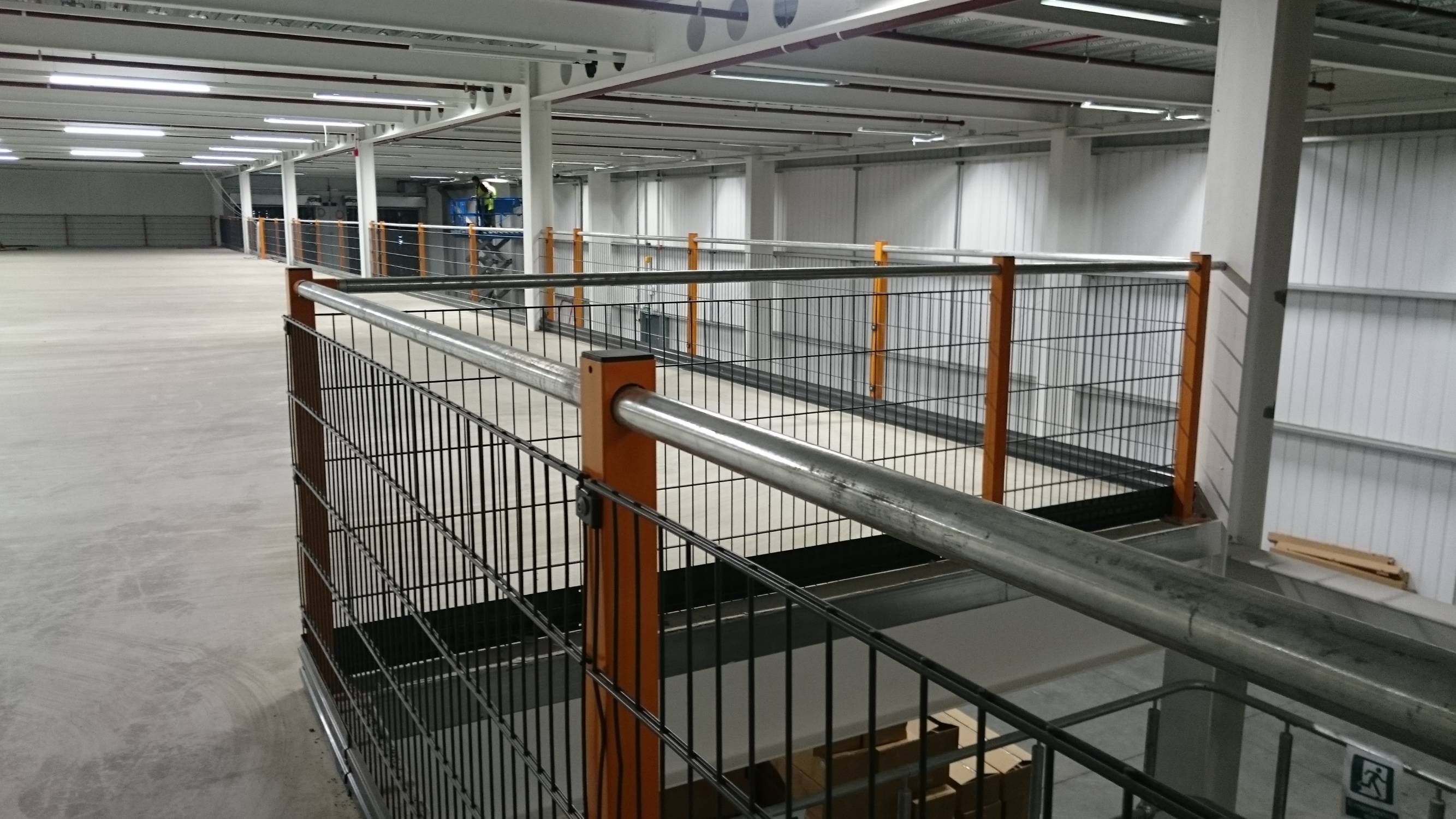

Primarily used as a guardrail for warehousing and manufacturing facilities, IAE’s Duex Handrail Edge Barrier provides a guard around the edge of elevated platforms and mezzanines, and other potentially hazardous areas.


This version of the system includes a handrail and is specifically designed for pedestrian areas.


The system can also be used to define walkways and guard against casual access to machinery.

Description

Internal handrail safety barrier system for guarding edges and hazardous areas.


Features and benefits:

  • Mezzanine edge barrier.
  • Passive fall protection.
  • Includes handrail.
  • Load tested to BS 6180:2011 at 1.5 kN/m.
  • Security fittings.
  • Matching 1800H mesh system available.


IAE’s Duex Handrail Edge Barrier system acts as a guardrail, and is designed to provide protection against falls and potentially hazardous areas.


The system has been load tested up to 1.5kN/m in line with BS 6180:2011 Barriers in and about buildings guidelines. This ensures the system is suitable for areas such as gangways, pedestrian traffic routes, balconies, mezzanines and platforms in industrial manufacturing and warehouse storage buildings.


The barrier is made up of bolt down posts, handrail, and welded mesh panels.


Specification:


Standard posts are 60 x 60 x 2 mm square hollow section uprights with a welded 10 mm thick base plate. The base plates are slotted so the posts can be secured to the floor with 4no M12 anchors bolts.


The base plates are offset so the plate is positioned behind the fence line, which avoids creating a trip hazard in the walkway.


The handrail is a 42.4 mm diameter circular hollow section tube supported at a height of 1140 mm to the top of the handrail.


The mesh panel is an IAE Duex 656 welded mesh panel, made up from 5 mm vertical wires, and twin 6mm horizontal wires.


The mesh panel fills in the area below the handrail to prevent ducking under, and is fixed to the posts using fencing clips and M8 security bolts threaded into inserts in the post.


Components are manufactured from carbon steel and galvanized to BS EN 1461 as standard.


The standard powder coated finish for the system is RAL 1021 yellow for the posts, and RAL 9005 black for the mesh panel.


Specifying IAE Duex Handrail Edge Barrier:


IAE Duex Handrail Edge Barrier is a standard system of IAE’s Fencing Division.


The system has been installed in many facilities across the UK, is tried and tested, and can be specified with confidence.

General information

Color

Yellow

Black

Finish

Powder-coated

Material

Steel

Shape

Rectangle

Length

2530 mm

Guidance for specification option:

Per standard bay.

Manufacturer guidance

2530mm

Width

120 mm

Guidance for specification option:

Across base plates.

Manufacturer guidance

120mm

Height

1140 mm

Guidance for specification option:

To handrail.

Manufacturer guidance

1140mm

Warranty description

Two year

Uniclass

Ss_25_60_05_05 Balustrade and guarding systemsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

Specification data - Balustrade and guarding systems

System performance

Loading to BS 6180:2011, 0.74 kN.

Loading to BS 6180:2011, 1.5 kN.

Uprights

60 x 60 mm square hollow section posts.

Infills

Mesh.

Rails

-

Handrails

Not required.

Required.

Accessories

None.

Kickplates.

Pallet gates.

Barrier Height

-

Manufacturer guidance

Consult manufacturer and insert requirements.

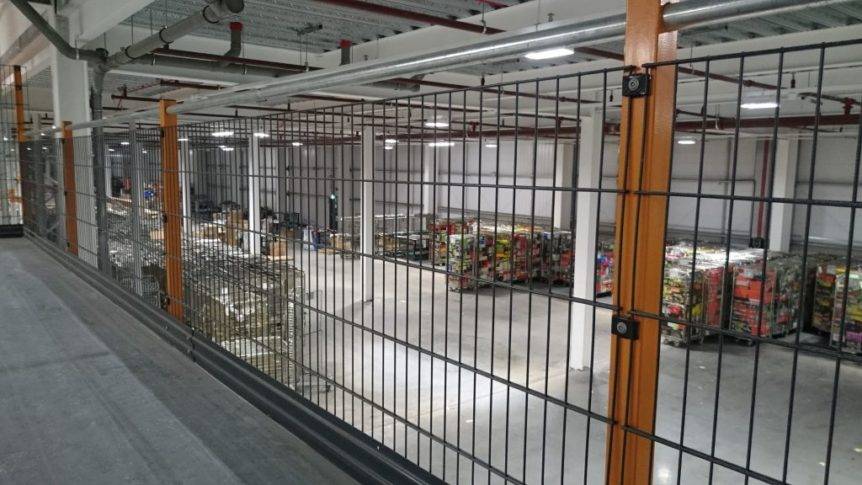

Handrail height 1140 mm. The IAE system is often supplied up to 2 metres in height preventing staff from leaning over to look or call below.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/kg

Self declared

Recyclability

95

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate
