Spectator handrail for games areas and sports pitches.

Jump to:
BOS
+44 (0)1782 339320 Website

Application

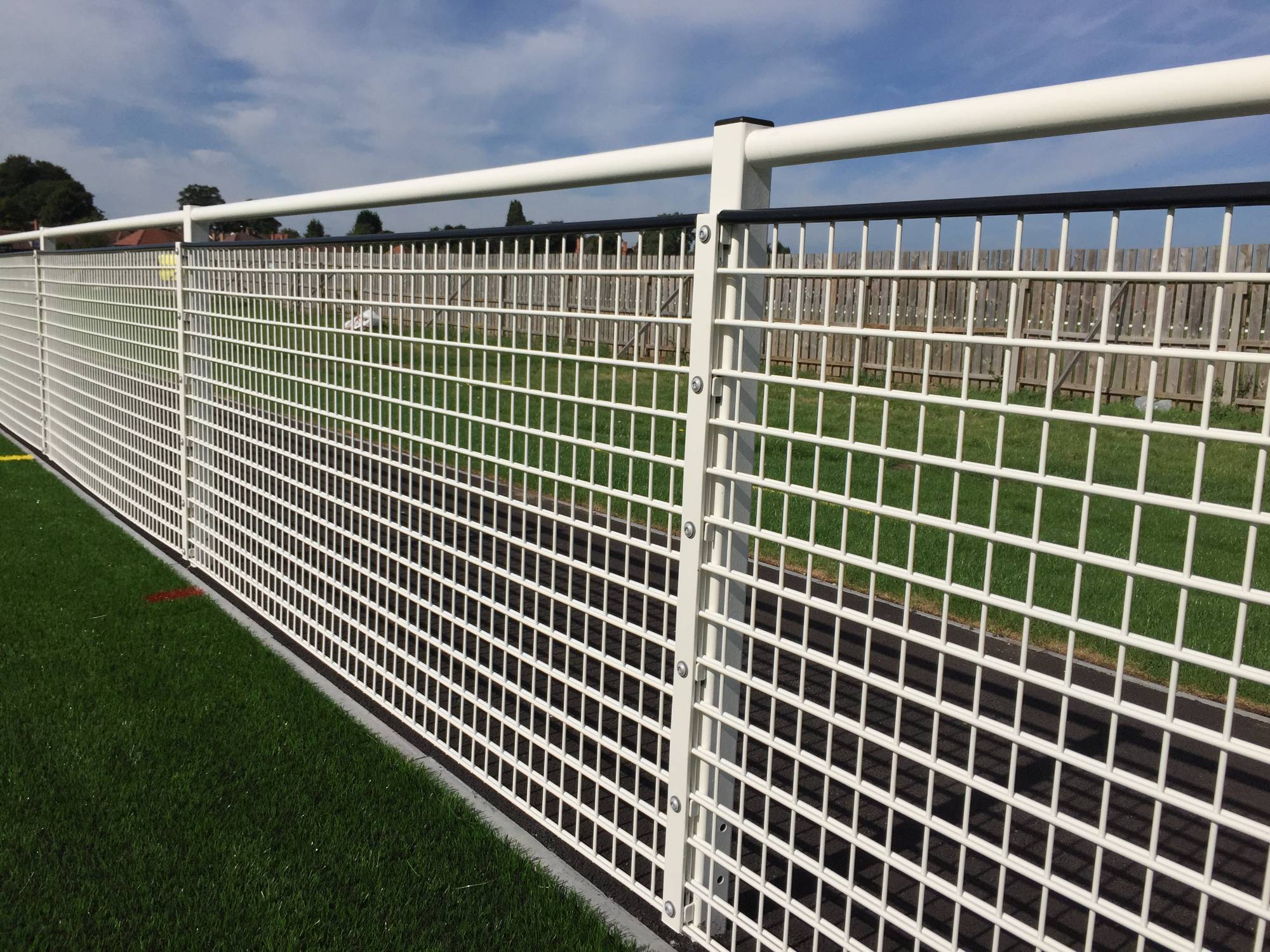

Primarily used for sports pitches and games areas, IAE’s Sports Spectator Rail defines the games area to protect both players and spectators.

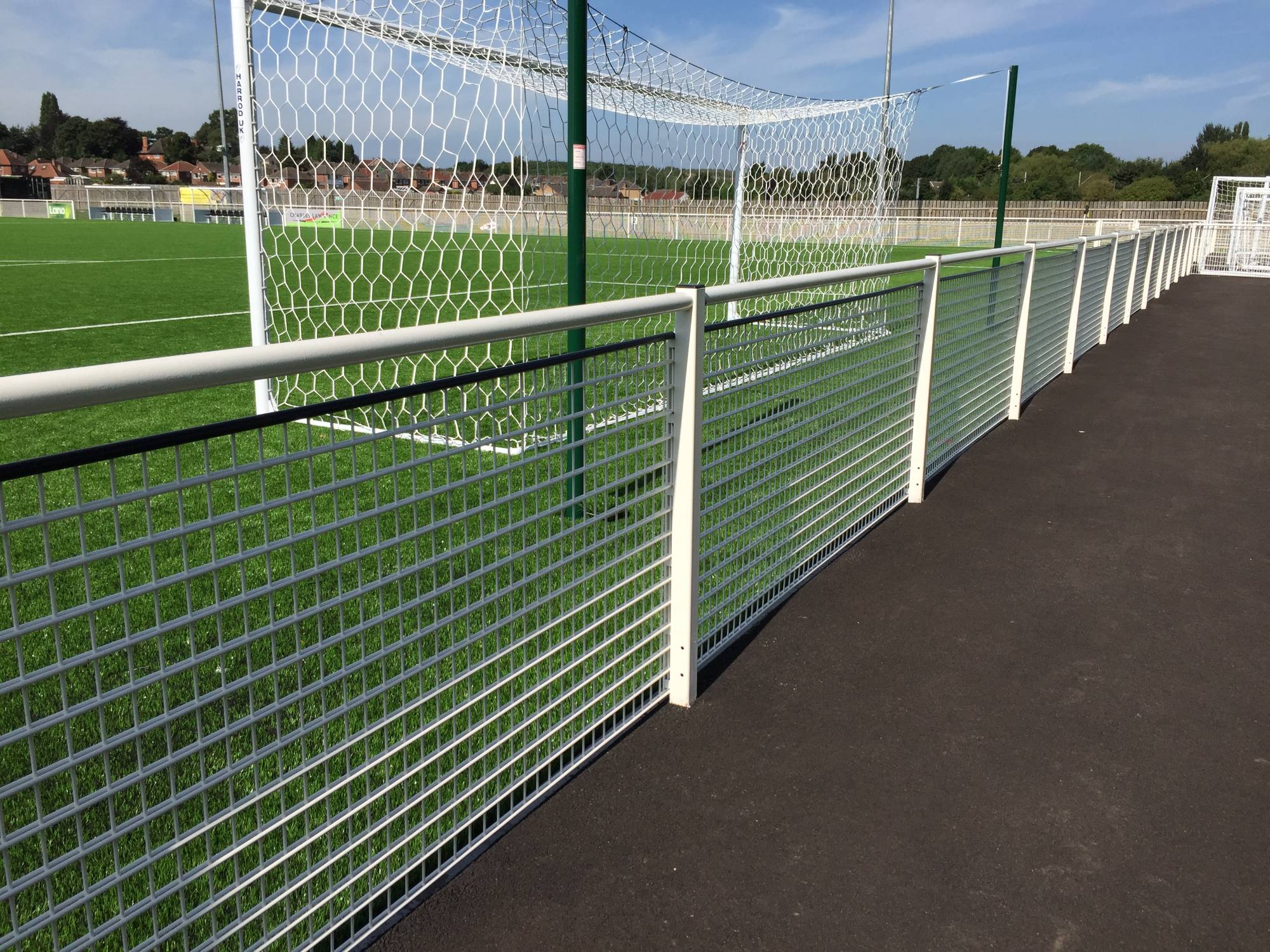

The system provides a comfortable spot for spectators to view the action and keeps balls in the field of play. The system is suitable for football pitches, multi use games areas (MUGAs), spectator enclosures, playgrounds, and sports arenas.

Description

Key Points:

  • Spectator tubular handrail
  • Sports arena boundary fence
  • Mesh capping strip
  • Ball rebound panels
  • Stocked ready for coating
  • Personnel and maintenance access gates available


IAE’s Sports Spectator Rail is a tubular handrail and welded mesh panel system designed to provide a clear demarcation between sports play and viewing areas, giving a safer experience for both players and spectators.


The Spectator Rail system can be used to provide a perimeter to the play area, or to build an enclosure for spectators.


The system is manufactured from carbon steel galvanized to BS EN 1461 standards. An optional polymer powder coating finish can be applied with a choice of colours available.


The handrail is 1150 mm high above ground level, with the welded mesh panel coming up to 1000 mm. The tubular handrail is made from 48.3 mm diameter circular hollow section tube. The handrail is supported between 60x60 square hollow section posts, mounted on 38.1 mm diameter spigots. A fitting is then used to stop the tube rotation around the spigot.


Posts are installed at 2525 mm centres as standard, however panels can be cut back and posts installed closer together as required to adapt to a given venue.


The welded mesh panels are IAE specification Duex 868 or Duex 868 Rebound panels. These panels are twin 8 mm diameter horizontal wires welded to vertical 6 mm panels.


Spacing of the vertical wires on the rebound panels is reduced to form a stronger and more durable panel designed to take repeated impacts from balls.


For spectator safety, the panels are capped off at the top with a plastic capping strip.


The panels are fitted to the posts using a 40x6 flat clamp bar secured with M8 security screws.


Gates:


Matching gates are available for IAE’s Sports Spectator Rail.


1200 mm wide single leaf gates are available for personnel access points, and 3000 mm wide double leaf gates are available for vehicle and maintenance access.


Bespoke gates can also be designed and manufactured to order.


Specifying IAE Sports Spectator Rail:


IAE Sports Spectator Rail is available from stock from IAE’s Fencing Division.


The spectator rail system has been installed at hundreds of venues across the UK and abroad, is tried and tested, and can be specified with confidence.

General information

Color

Finish

Powder-coated

Material

Carbon steel

Shape

Rectangle

Length

2505 mm

Width

60 mm

Height

1150 mm

Warranty description

Two year

Uniclass

Ss_25_15_60_54 Metal post and mesh panel barrier systemsPrimary

CAWS

Q41/135 Proprietary protective barriers

Q41/125 Proprietary sports ground barriers

Specification data - Metal post and mesh panel barrier systems

Posts

Carbon steel posts 60 x 60 mm (SHS).

Post foundations

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Rails

Safe-2-View Top Rail (S2V) 48.3 mm.

Panels

66 x 50 mm.

200 x 50 mm.

Manufacturer guidance

Mesh Infill - 1000 mm Duex 8/6/8 mesh.

Site applied finishes

Galvanized to BS EN ISO 1461.

Galvanized to BS EN ISO 1461 and powder coated.

Guidance for specification option:

Available in a wide range of colours, insert requirements.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Samples required

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Height

1155 mm (to top of handrail).

Dimensions

2505 x 60 mm.

Manufacturer guidance

Length x width.

Surface finish

Powder-coated.

Colour

Green.

Black.

White.

Blue.

Red.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.16 kg CO₂ eq/unit

Self declared

Recyclability

Highly recyclable

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

95 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Certificate
