IAE Wheel Stop
Verified by manufacturer 22 days ago
ISO 9001 Quality Management
Certificate type
The IAE tubular wheel guide helps drivers to dock into designated bays. The construction will stand up to repeated use by large commercial vehicles such as lorries, busses and coaches.
Application
Suitable for use as a stop guide for any type of commercial vehicle in a designated parking or docking bay.
Applicable in a wide range of commercial and industrial settings.
Description

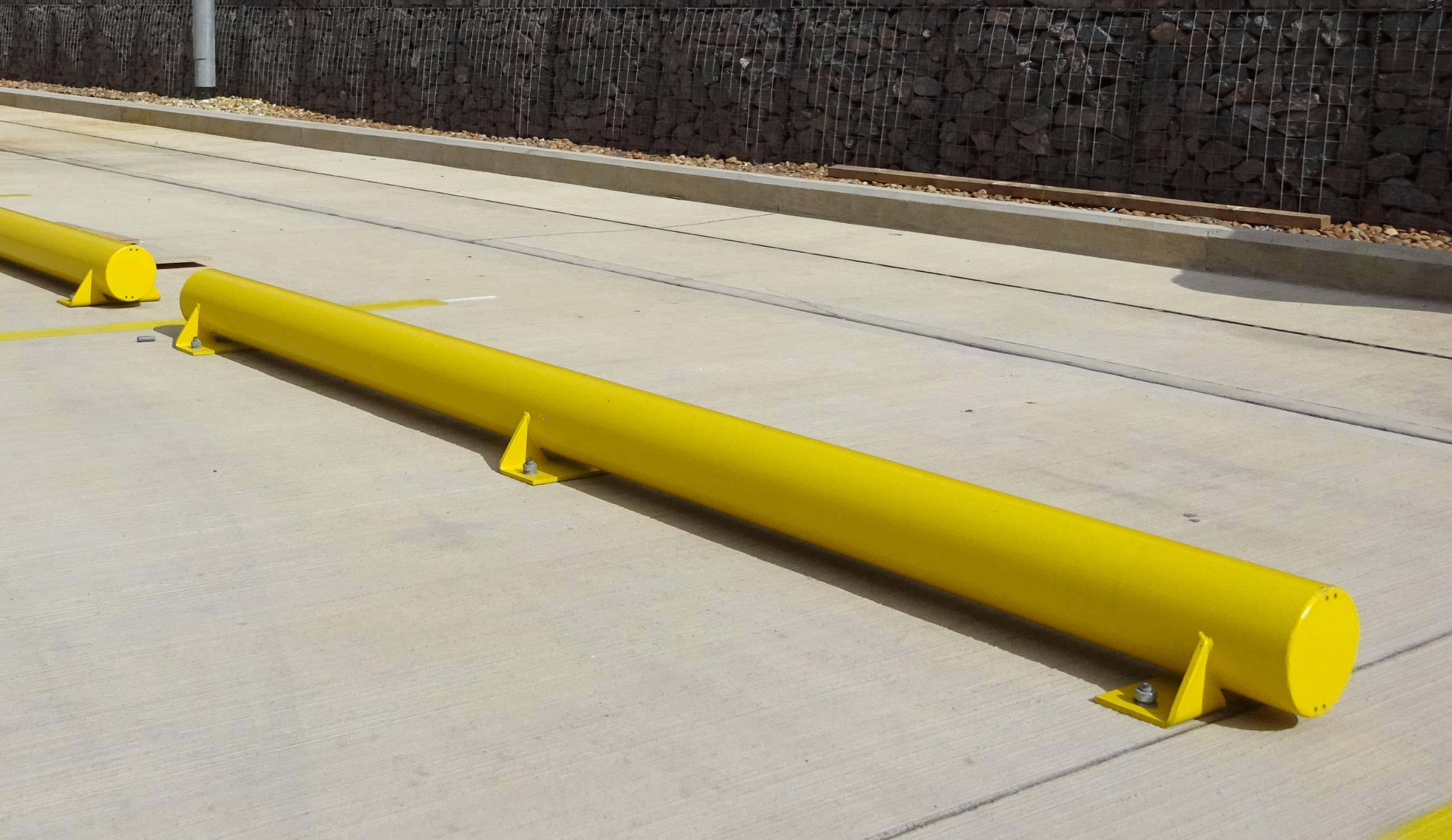

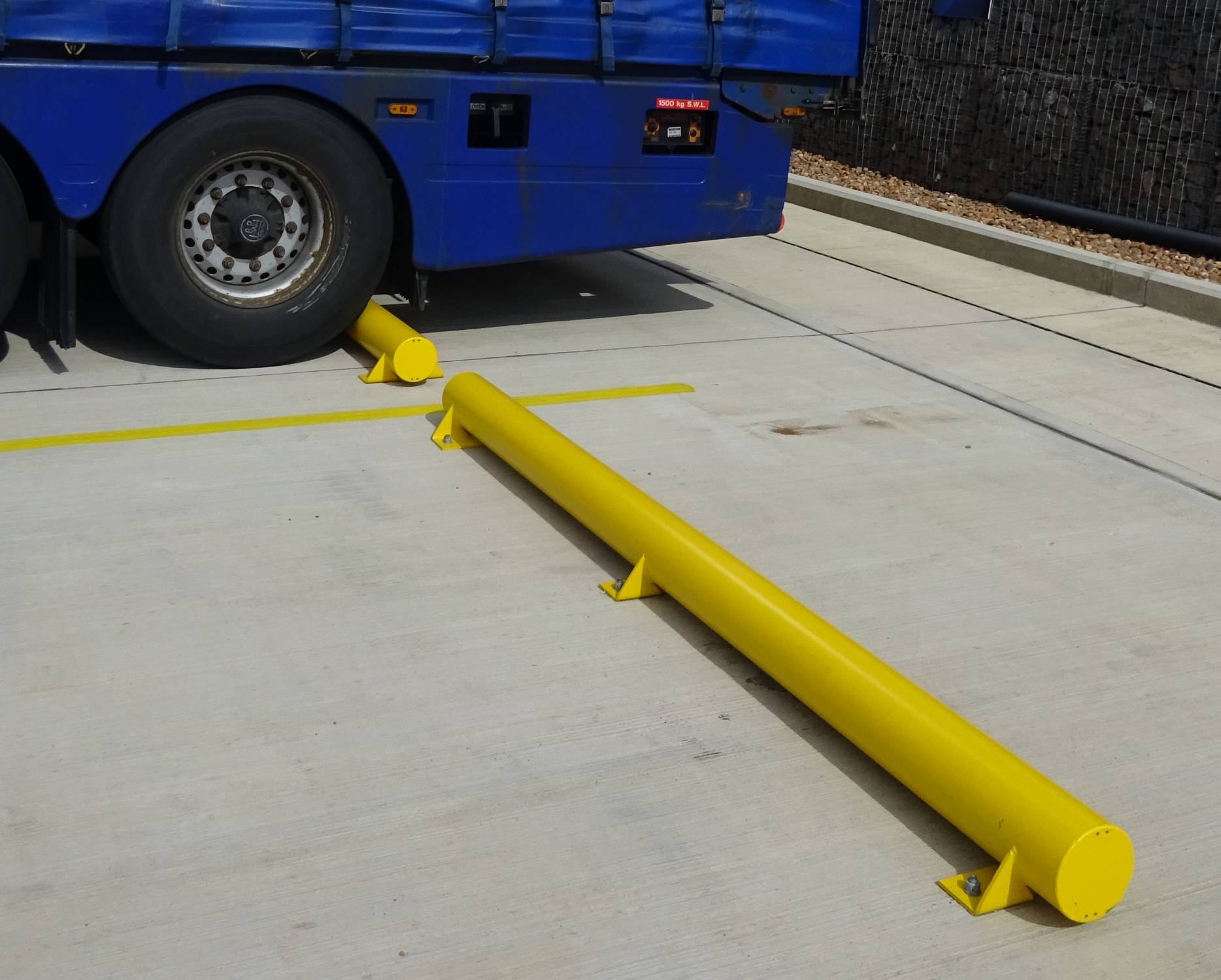

The IAE tubular wheel stops are designed to guide all types of commercial vehicles into the correct position in front of a dock or parking space, and minimise accidental damage to the vehicle and its environment.
The tubular wheel stops are manufactured from 168.3 mm CHS steel.
The wheel stop is designed to withstand repeated use by large commercial vehicles. All of IAE's wheel guides and stops are galvanized and powder coated bright yellow to ensure they stand out in adverse conditions.
Total Weight: 70 kg
Features and benefits:
- Made from robust 168.3 mm CHS.
- Protects vehicles and their environment from unwanted damage.
- Acts as a reversing stop guide for commercial vehicles.
- Powder-coated in RAL 1021 yellow as standard for high visibility in dark or adverse weather conditions.
- Easily and quickly installed.
- Defines end of docking and parking bays.
- Tubular and Folded varieties available.
- Hot dip galvanized to BS EN ISO 1461.
Options:
- Powder coating to a wide range of colours.
General information
Color | Yellow Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Circle |
Length | 3000 mm |
Width | 300 mm |
Height | 190 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | Q41/212 Vehicle stops Q41/212 Vehicle stops |
Specification data - Carbon steel vehicle stops
Profile | Circular. |
Dimensions | |
Diameter | 168 mm. |
Overall length | 3000 mm. |
Height | 190 mm. |
Finish | |
Colour | Yellow. |
Fixing type | Base plate with mechanical anchors. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Turkey |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.16 kg CO₂ eq/kg Self declared |
Recyclability | Made from recyclable carbon steel |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
