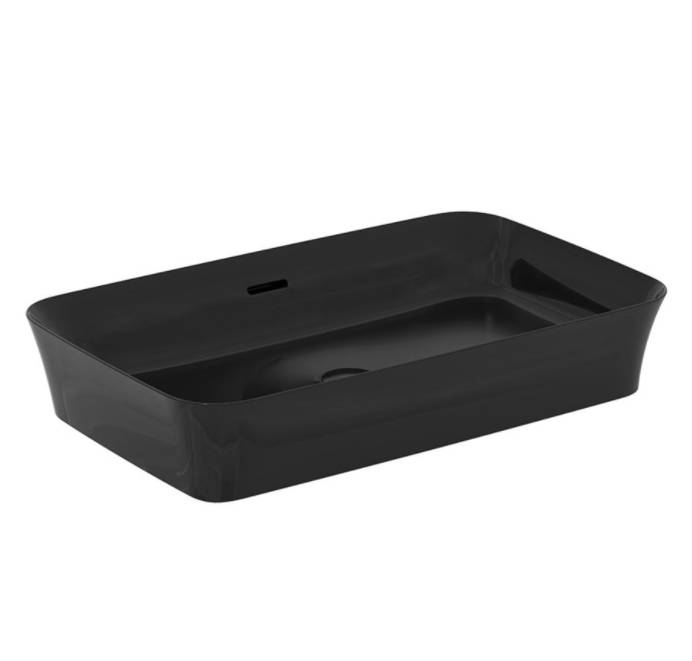

Ideal Standard Ipalyss 65 cm Rectangular Vessel Washbasin With Overflow
Verified by manufacturer 2 months ago
EPD
Certificate type
65 cm rectangular vessel washbasin with overflow.
Application
For use in domestic and commercial bathrooms.
Description
Ipalyss 65 cm rectangular vessel washbasin with overflow, washbasin mounted on countertop secured with fixing set provided, joint sealed with waterproof sealant.
Features and benefits:
- Domestic and commercial use.
- Diamatec technology.
- Ultra-thin modern design.
- Integrated overflow options.
- Includes freeflow waste and colour-matched ceramic cover (except 01 White).
General information
Color | White Black Brown Red Blue Manufacturer guidanceSeveral colours are available:
|
Finish | Polished |
Material | Ceramic Manufacturer guidanceDiamatec |
Shape | Rectangle |
Length | 400 mm |
Width | 650 mm |
Height | 145 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Countertop washbasins
Standard | To BS EN 14688. |
Form | Vanity top (vessel). |
Materials | |
Body | Diamatec. |
Finish and colour | White (01).Silk White (V1).Black Glossy (V2).Black Matt (V3).Kashmir (V4).Slate Grey (V5).Pomegranate (V6).Nude (V7).Mink (V8).Concrete (V9).Powder (X8).Sage (X9). |
Size | 650 x 400 x 145 mm.Guidance for specification option: W x D x H. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Sustainability data
Material | Ceramic Manufacturer guidanceDiamatec |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
EPD
EPD - Ceramic Fine Fireclay
Literature
Atelier Collections Brochure
