IKO Permapark - Mastic Asphalt System for Waterproofing & Surfacing Car Parks & HGV Decks - Car Park Waterproofing System

Verified by manufacturer 3 months ago

IKO UK Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • BES 6001

    BES 6001

    Certificate type

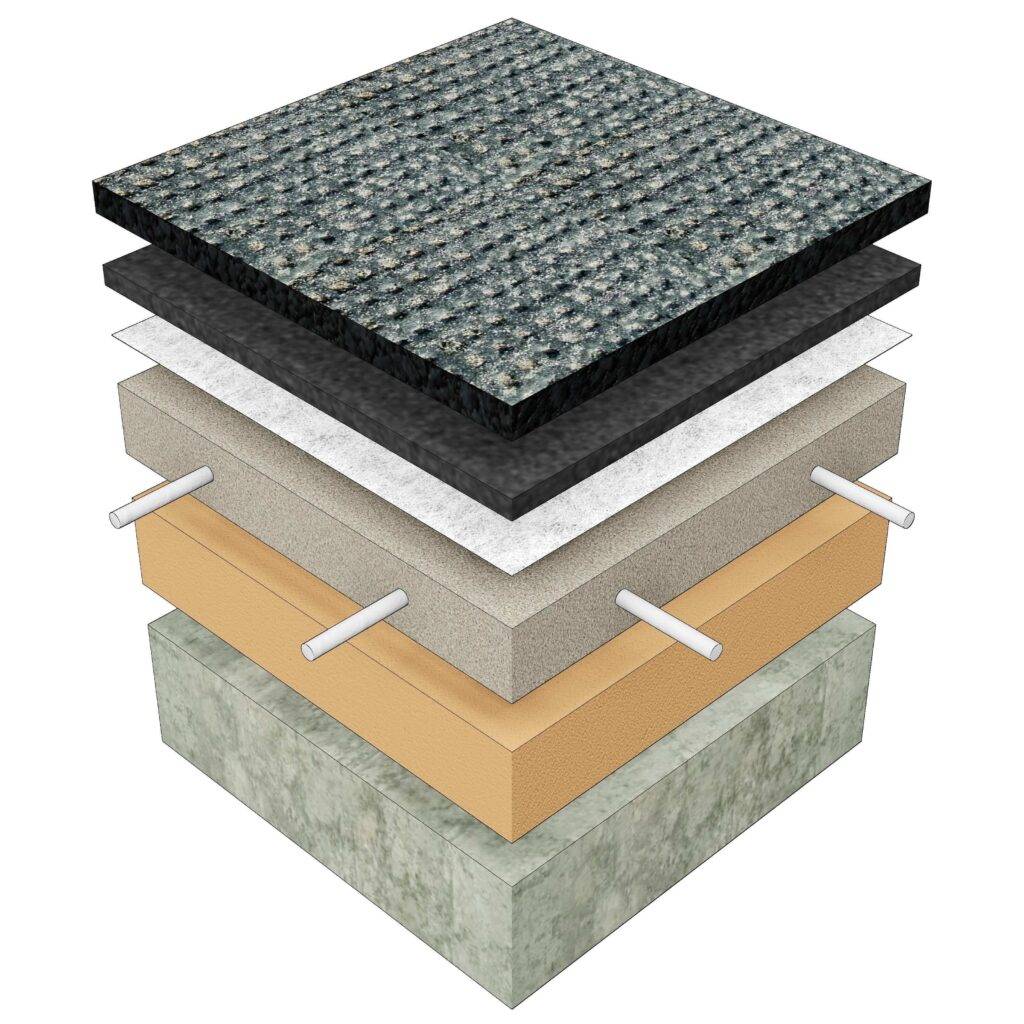

Mastic asphalt waterproofing and surfacing system for car parks and elevated vehicle decks.

Jump to:
+44 (0)1257 255 771 Website

Application

Suitable for a wide range of applications from pedestrian walkways, car parks, HGV service decks, and access ramps.

Description

Manufactured at our IKO HMMA Grangemill site in Matlock, Derbyshire, IKO Permapark systems are specially formulated mastic asphalt waterproofing and surfacing systems for car parks and elevated vehicle decks. They use advanced polymer technology to give the ideal combination of long-term durability, increased fatigue resistance, improved temperature stability, and ease of installation. Due to their robustness, IKO Permapark systems can withstand continuous vehicle traffic and offer high standard skid resistance. IKO Permapark is suitable for a wide range of applications from pedestrian walkways, car parks, HGV service decks, and access ramps.


Features and benefits

  • Completely seamless waterproofing.
  • Enhanced low temperature flexibility (resistance to cracking).
  • High temperature stability (resistance to deformation).
  • Delivered ready for use in bulk transporters, extending factory quality control to site (block material for site re-melt is available for detail work).
  • Easily recyclable and environmentally non-polluting – Carbon Zero initiative.
  • Covered by comprehensive range of long-term guarantees.
  • We are proud members of the Mastic Asphalt Council (MAC).
  • Backed with a 20 year guarantee.

General information

Color

Black

Material

Asphalt

Polymer

Length

Bespoke

Width

Bespoke

Height

35 mm

40 mm

50 mm

60 mm

Warranty description

25 year

Uniclass

Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

CAWS

J21/404 Mastic asphalt (paving)

J21/26 Mastic asphalt

J21/402 Mastic asphalt (roofing)

Product range

Mastic Asphalt Systems

Specification data - Mastic asphalt (MA) surface courses

Standard

To BS12970 and BSEN 13108-6.

Third party certification

BBA Certified.

Colour

Black.

Type

Block (4190000).

Hot Charge (5190000).

IKO Permapark Paving thickness

25 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 30% - 6 mm.

30 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 35% - 10 mm.

40 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 45% - 10 mm.

Vapour resistivity

Not less than 100,000 MN/g.

Water resistance

Completely impervious to water.

Reaction to fire

BFL-S1.

Movement

Capable of accommodating normal movements encountered in well-designed building structures.

Manufacturer guidance

Structural movement joints within the roof will require the incorporation of a proprietary expansion joint which is compatible with a mastic asphalt waterproofing and surfacing system.

Expansion

15 x 10-5/°C.

Chemical resistance

Good chemical resistance to hydraulic fluids and aqueous solutions of acids and alkalis.

Guidance for specification option:

It is unaffected by contact with an alkaline substrate and has good short term resistance to minor spillages of oil, petrol and grease contamination.

Colour fastness

IKO Permapark tones down slightly due to surface oxidation, giving a slightly lighter appearance in service.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Asphalt

Polymer

Third party certifications

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate - IKO Permapark

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

IKO PLC ISO 14001 Certificate

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

IKO PLC ISO 45001 OHS Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

IKO PLC ISO 9001 Certificate

BES 6001

BES 6001

IKO PLC BES 6001 Site Certificate - Grangemill

Literature

Brochure - IKO PLC (UK) ESG Report

Brochure - IKO PLC (UK) ESG Report

Technical Data Sheet (TDS) - IKO enertherm XPS Upstand Board

Technical Data Sheet (TDS) - IKO enertherm XPS Upstand Board

Technical Data Sheet (TDS) - IKO Glass Fibre Tissue

Technical Data Sheet (TDS) - IKO Glass Fibre Tissue

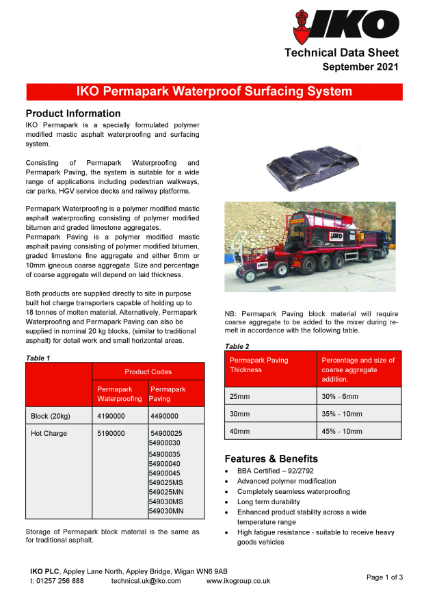

Technical Data Sheet (TDS) - IKO Permapark Waterproof Surfacing System
