IKO Permapark Waterproof Surfacing System

Verified by manufacturer 1 month ago

IKO Ireland

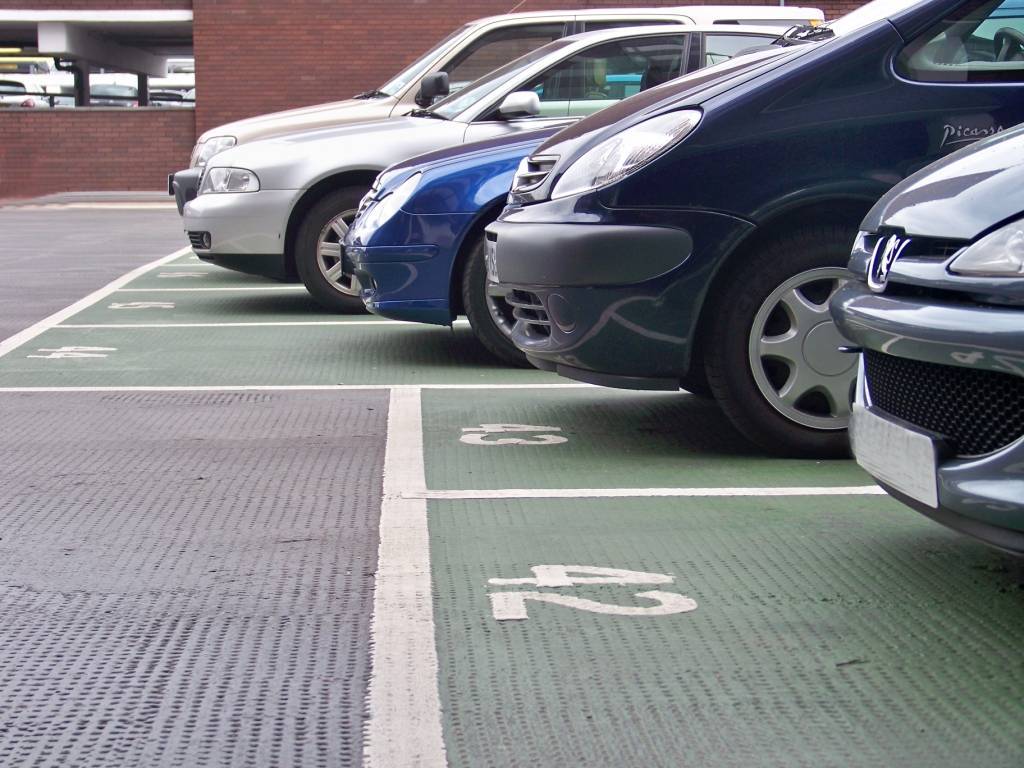

Mastic asphalt waterproofing and surfacing system for car parks and elevated vehicle decks.

Jump to:
+353 1 88 55 090 Website

Application

Suitable for a wide range of applications from pedestrian walkways, car parks, HGV service decks and access ramps.

Description

A specially formulated mastic asphalt waterproofing and surfacing system for elevated vehicle decks, using advanced polymer technology to give the ideal combination of long-term durability, increased fatigue resistance, improved temperature stability and ease of installation.


Permapark Waterproofing is a polymer modified mastic asphalt waterproofing consisting of polymer modified bitumen and graded limestone aggregates. Permapark Paving is a polymer modified mastic asphalt paving consisting of polymer modified bitumen, graded limestone fine aggregate and either 6 mm or 10 mm igneous coarse aggregate. Size and percentage of coarse aggregate will depend on laid thickness.


Features and benefits:

  • BBA Certified – 92/2792.
  • Advanced polymer modification.
  • Completely seamless waterproofing.
  • Long term durability.
  • Enhanced product stability across a wide temperature range.
  • High fatigue resistance - suitable to receive heavy goods vehicles.
  • Traditional application.
  • Manufactured in the UK under BS ISO 9001 Quality Assurance Scheme.
  • IKO Permapark is unaffected by frost and de-icing salts.


Components:

  • IKO Permapark Waterproofing, 10 or 20 mm thick.
  • IKO Permapark Paving, 25, 30 or 40 mm thick.


General information

Color

Black

Material

Asphalt

Polymer

Length

Bespoke

Width

Bespoke

Height

35 mm

40 mm

50 mm

60 mm

Warranty description

25 year

Uniclass

Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

CAWS

J21/404 Mastic asphalt (paving)

J21/26 Mastic asphalt

J21/402 Mastic asphalt (roofing)

Specification data - Mastic asphalt (MA) surface courses

Standard

To BS12970 and BSEN 13108-6.

Colour

Black.

Type

Block (4190000).

Hot Charge (5190000).

IKO Permapark Paving thickness

25 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 30% - 6 mm.

30 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 35% - 10 mm.

40 mm.

Guidance for specification option:

Percentage and size of coarse aggregate addition: 45% - 10 mm.

Vapour resistivity

Not less than 100,000 MN/g.

Water resistance

Completely impervious to water.

Reaction to fire

BFL-S1.

Movement

Capable of accommodating normal movements encountered in well-designed building structures.

Manufacturer guidance

Structural movement joints within the roof will require the incorporation of a proprietary expansion joint which is compatible with a mastic asphalt waterproofing and surfacing system.

Expansion

15 x 10-5/°C.

Chemical resistance

Good chemical resistance to hydraulic fluids and aqueous solutions of acids and alkalis.

Guidance for specification option:

It is unaffected by contact with an alkaline substrate and has good short term resistance to minor spillages of oil, petrol and grease contamination.

Colour fastness

IKO Permapark tones down slightly due to surface oxidation, giving a slightly lighter appearance in service.

Outlets

IKO Carpark Outlets.

Third-party certification

BBA Certified.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Asphalt

Polymer
