ILHT/4-355 CC

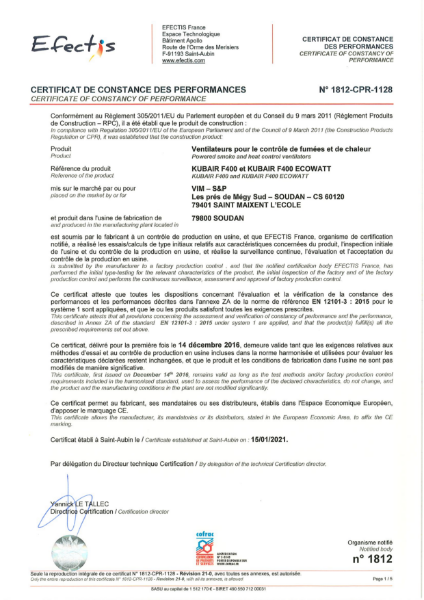

QA Certificate
Certificate type

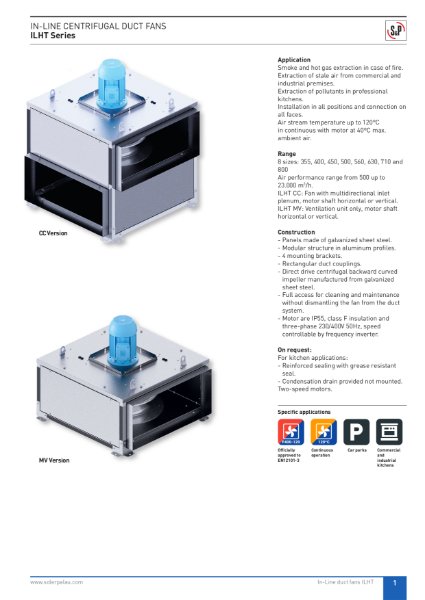

In-line centrifugal duct fans
Smoke and hot gas extraction in case of fire. Extraction of stale air from commercial and industrial premises. Extraction of pollutants in professional kitchens. Installation in all positions and connection on all faces.
In-line centrifugal duct fans for smoke and hot gas extraction in case of fire, extraction of stale air and pollutants.
Features and benefits:
ILHT CC:

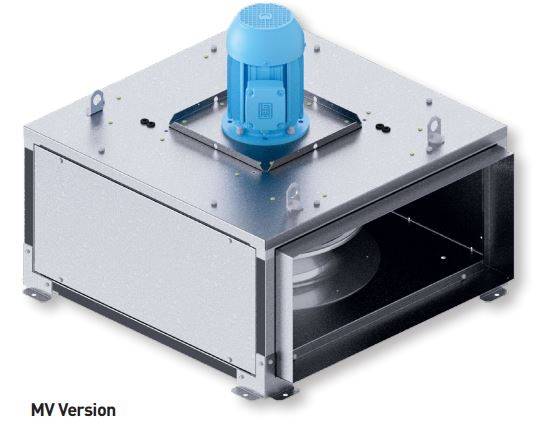

Fan with multidirectional inlet plenum, motor shaft horizontal or vertical.
ILHT MV:
Ventilation unit only, motor shaft horizontal or vertical.
Consult technical literature for information on performance values including airflow, speed and sound pressure level.
Construction:
Color | Silver |
Material | Aluminium Steel |
Shape | Square |
Warranty description | Two year |
Uniclass |
Standards | |
Performance | To BS EN ISO 5801. |
Dimensions | 627 x 954 mm.Guidance for specification option: 355 CC |
Duty | |
Air volume | Up to 6 m³/s. |
Fan speed | 1410 rpm. |
Air temperature | -20°C to 120°C |
Material | Galvanized sheet steel.Aluminium. |
Accessories | ACOPEL F400 N.Guidance for specification option: Circular flexible connector. Certified F400-120. CPFL-S / CPFL-E.Guidance for specification option: Presence detector. ICAH.Guidance for specification option: Backdraught shutter. Certified F400-120. ICAV.Guidance for specification option: Backdraught shutter. Certified F400-120 IJKH.Guidance for specification option: Airflow control damper. Certified F400-120. ILAR.Guidance for specification option: Flexible rectangular flange duct connector. ILBC.Guidance for specification option: Inlet circular duct connection flange (MV version). ILBR.Guidance for specification option: Rectangular coupling flanges. ILPL.Guidance for specification option: Doble inlet plenum (MV version). ILRC.Guidance for specification option: Motor cover. ILSH MV - ILSH CC.Guidance for specification option: Mounting support with motor in horizontal position. ILTI MV - ILTI CC.Guidance for specification option: Pitched roof cover for outdoor mounted installations with motor in horizontal position. ILTM.Guidance for specification option: Motor cover ILVV - ILVH.Guidance for specification option: Discharge protection guard ISA-ILHT.Guidance for specification option: Anti-vibrations support. (Set of 4 rubber supports). ON/OFF electrical isolation switch.SCHT-AD.Guidance for specification option: C02 sensor, temperature and relative humidity two with display. SCO2-A.Guidance for specification option: C02 and temperature sensor SCO2-AD.Guidance for specification option: C02 and temperature sensor sensor, with display. TDP-D.Guidance for specification option: Presure sensor TDP-PI.Guidance for specification option: Presure sensor TDP-S.Guidance for specification option: Presure sensor VFKB IP65.Guidance for specification option: Adjustable frequency drives for three phase motors from 0.37 to 4 kW 230 or 400 V. VFTM IP21.Guidance for specification option: Adjustable frequency drive for three phase motors. VFTM320 IP66.PREP/COOK Switch (IP66). |
Weight | 59 kg. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
- | 1 |
