Verified by manufacturer 18 days ago
Gloss Finish

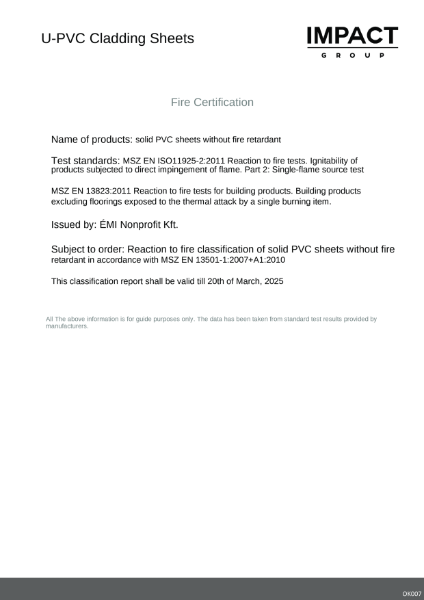

BS EN 13501-1
Certificate type

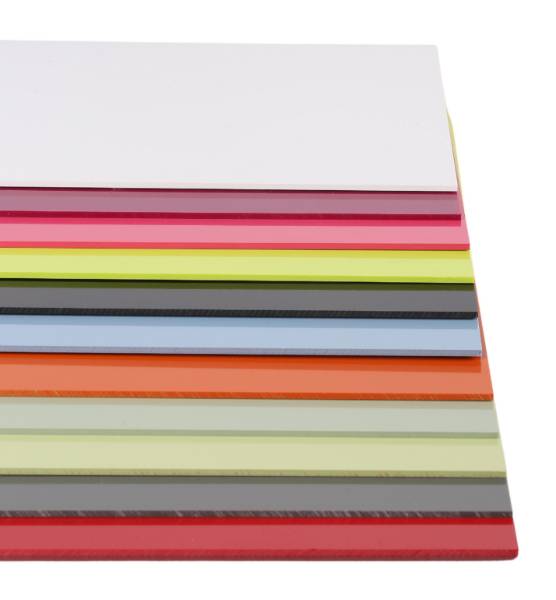

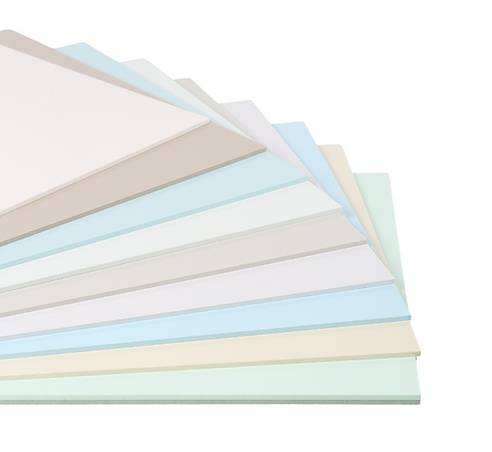

Extruded semi-rigid PVC sheet offering combined benefits of uPVC fire rated material with high-resolution digitally printed images and a UV cured clear hard coating.

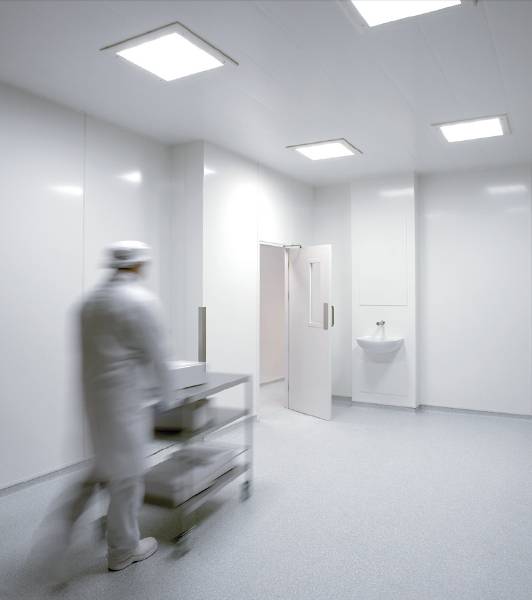

Suitable for hygienic applications such as:
Suitable substrates:
(PVA sealer not generally required).
All these surfaces will require PVA sealer coat by others unless specified otherwise.
NB: Pink lightweight plasters are generally not suitable.
Painted surfaces will require a 'key' to avoid delaminating of paint from substrate.

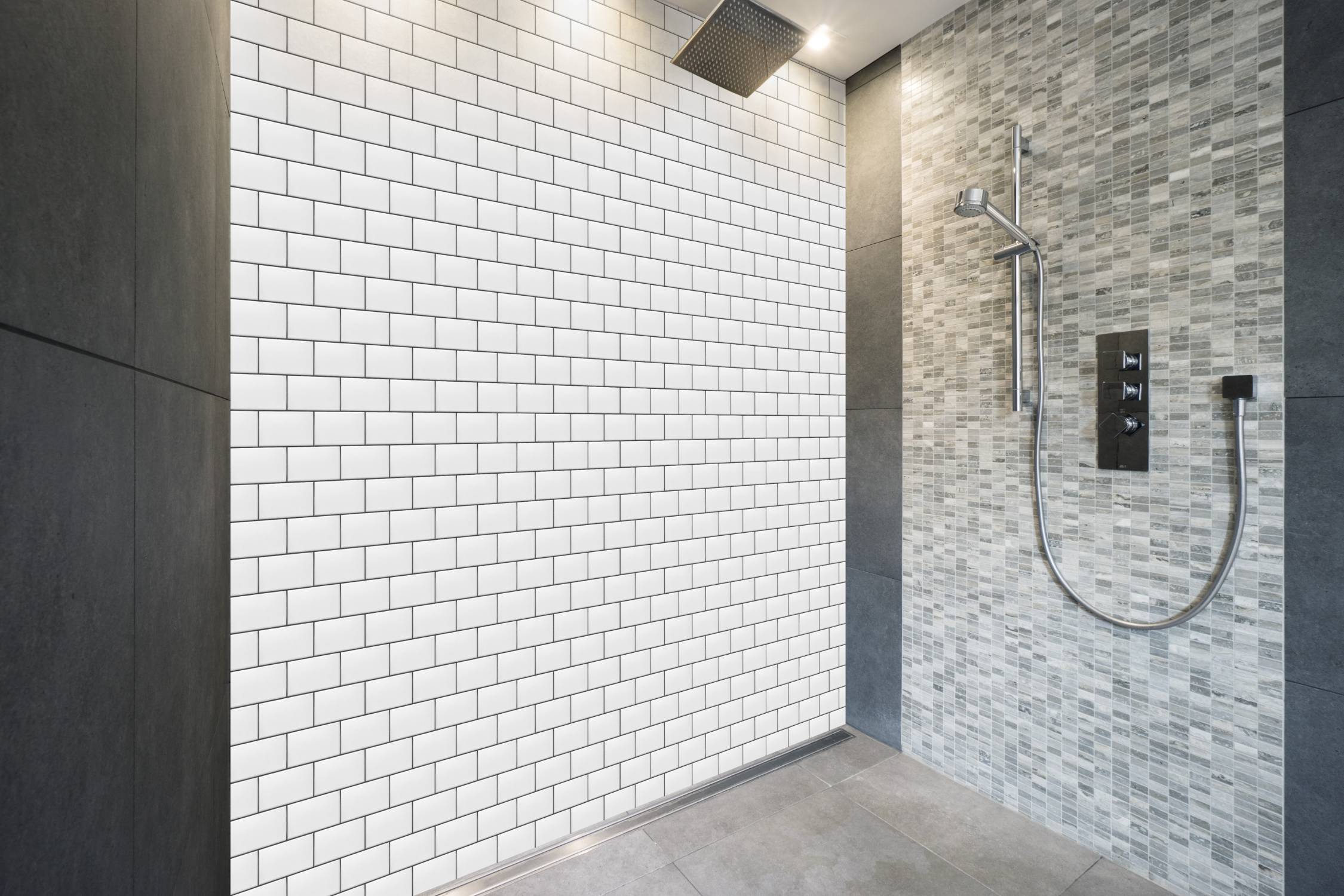

ImpactPRO iDigital 2.5 mm Hygienic Cladding Solid PVC Sheet. 2.5 mm for uneven walls with imperfections, for example covering over tiles which have been removed or uneven brick/blockwork.

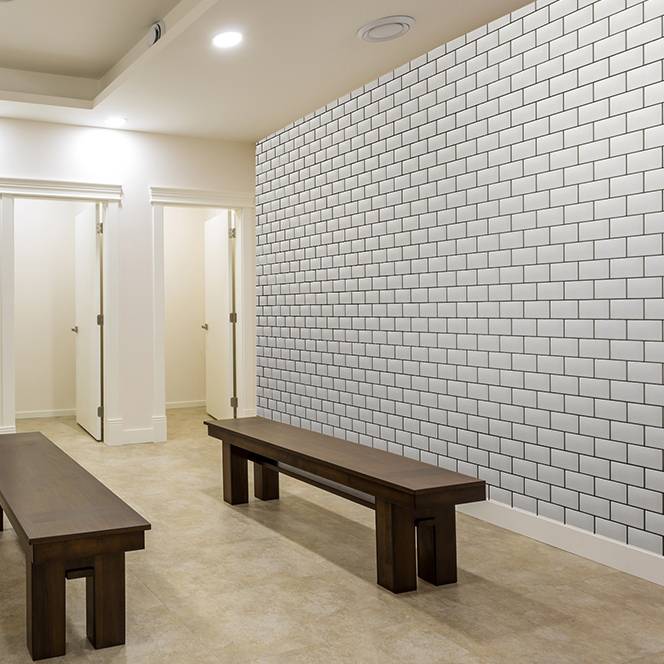

This distinct range of decorative hygienic wall cladding combines the benefits of uPVC fire rated material with high-resolution digitally printed images and a UV cured clear hard coating.
Features and benefits:
Color | Other |
Finish | Gloss Matt |
Material | PVC |
Shape | Rectangle |
Length | 2440 mm 2800 mm 3050 mm |
Width | 1220 mm |
Height | 2.5 mm |
Warranty description | 20 year |
Uniclass | |
CAWS | K13/145 Proprietary plastics cladding K13/145 Proprietary plastics cladding |

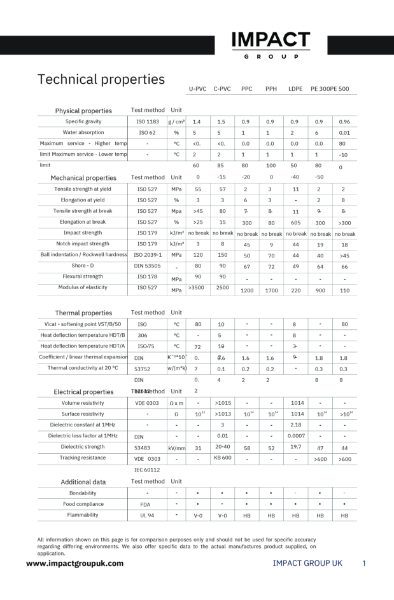

Material | Solid PVC sheet. |
Thickness | 2.5 mm. |
Sheet size | 2440 x 1220 mm.2800 x 1220 mm.3050 x 1220 mm. |
Finish | Gloss. |

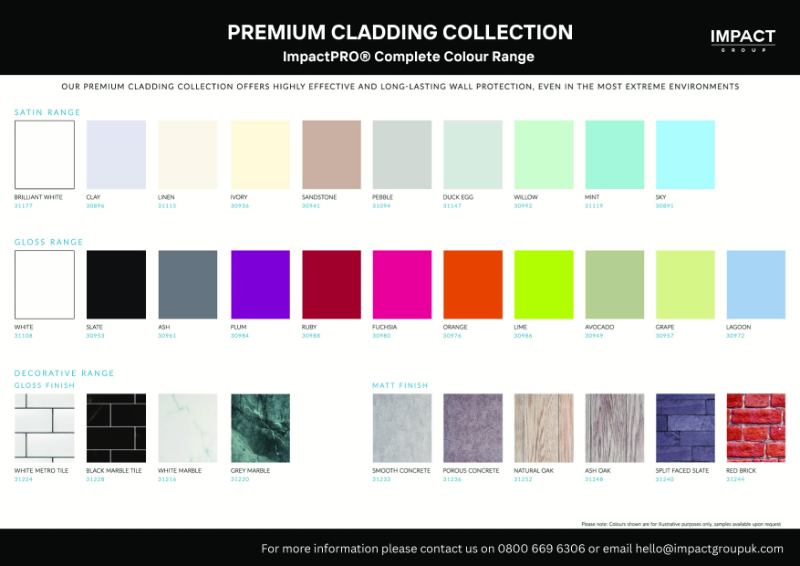

Colour | White metro tile.Black marble tile.White marble.Grey marble. |
Edges | Manufacturer guidanceMatching profile trims available. Consult manufacturer and insert requirements. |

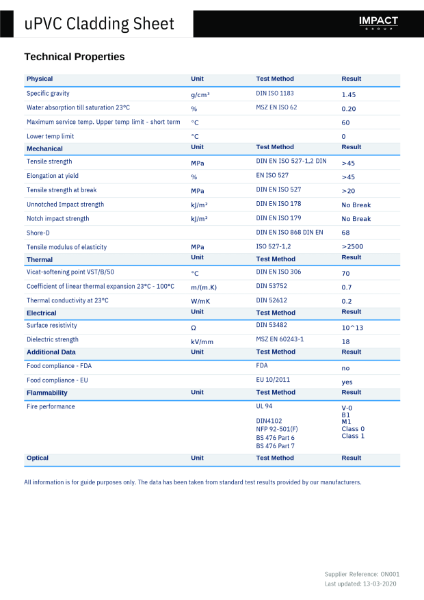

Fire performance | To BS 476-Part 6, V-0. |
Specific gravity | To DIN ISO 1183, 1.45 g/cm³. |
Water absorption | To EN ISO 62, 0.20%. Manufacturer guidanceWater absorption till saturation 23°C. |
Service temperature range | 0–60℃. |
Tensile strength | To DIN EN ISO 527-1, >45 MPa. |
Elongation | To EN ISO 527, >45%. |
Shore Hardness - D | To DIN EN ISO 868, 68. |
Modulus of elasticity | To ISO 527-1,2, >2500 MPa. |
Softening temperature | To DIN EN ISO 306, 70°C. Manufacturer guidanceVicat-softening point VST/B/50. |
Coefficient of thermal expansion | To DIN 53752, 0.7 m/(m.K). Manufacturer guidanceCoefficient of linear thermal expansion 23°C–100°C. |
Thermal conductivity (maximum) | To DIN 52612, 0.2 W/mK. Manufacturer guidanceAt 23°C. |
Vapour resistivity | To DIN 53482, 10^13 Ω. |
Strength | To MSZ EN 60243-1, 18 kV/mm. Manufacturer guidanceDielectric strength. |
Contains Red List materials | No |
Country of material origin | Hungary |
Country of product manufacture | United Kingdom |
Material | PVC |
Manufacturing plant location | |
Recyclability | 100% Guidance for specification option: The recyclability is 100% given for Trovidur® EC-Clad, as long as the protective film is removed and the material is free from contamination like adhesive residues. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 20 year |
