In-Line Access Hatch

Verified by manufacturer 6 months ago

Twinfix Limited

In-line access hatch panel with 6 mm polycarbonate glazing.

Jump to:
+44 (0)1925 811311 Website

Application

Designed for fitting into Twinfix multi-link and bar and sheet systems – consult manufacturer for details.

Description

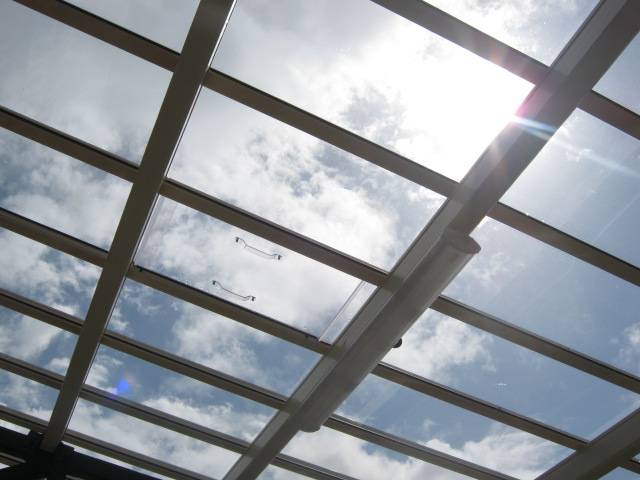

In-line access hatch panel with 6 mm solid polycarbonate glazing. The product comprises three panels in total: two fixed panels (one at the top, one at the bottom, and one removable central panel).


Features and benefits:

  • Can be quickly and easily removed from below without the need for special equipment, enabling full 360° access (through canopy glazing to gutters, and other parts of the roof).
  • Creates a safer system of work for maintenance staff, with no need for scaffolding to be erected close to platform edges.
  • In-line design, which gives a sleek and unobtrusive finish to any roof.
  • Non-fragile.
  • Fast installation.
  • Suitable for use on heritage sites when used with Georgian glazing.
  • Long-lasting, low-maintenance, durable glazing is included, which won’t crack or break due to building or engine movement.
  • Green product, with glazing which may be recycled after use.
  • Maximum unsupported overhang: 150 mm.
  • Maximum unsupported span: 3200 mm (down the slope), 600 mm (panel width), and up to 1000 mm (removable hatch length).

General information

Finish

Powder-coated

Material

Polycarbonate

Aluminium

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

L20/630 Hatches

Specification data - Access panels

Fire resistance

Class 1Y to BS 476 Part 7: 1997, 'Surface spread of flame'.

Reaction to fire classification

Class 1Y to BS 476 Part 7: 1997, 'Surface spread of flame'.

Frame

Extruded aluminium bars to BS 1474.

Panel

-

Material

6 mm solid polycarbonate glazing.

Frame

Guidance for specification option:

Insert requirement, consult Twinfix.

Type

6 mm Georgian wired.

6 mm solid.

Colour

Clear.

Obscure.

Accessories

Not required.

Mechanical end plates.

Ridge flashing.

Width

600 mm.

FragilityRating

Panels tested in accordance with ACR[M]001:2019, and Classified 'Class B non-fragile assembly'.

Fixings

Stainless steel self-tapping screws & bolts.

Pitch

5°.

Guidance for specification option:

(Minimum).

Loading

0.9 kN/m².

Guidance for specification option:

Wind.

0.5 kN/m².

Guidance for specification option:

Snow.

UV protective layer

Both sides of sheet.

Sound reduction index

29 dB.

Light transmission

Clear 85%.

Material

6 mm polycarbonate.

FrameMaterial

Extruded aluminium bars to BS 1474.

Sustainability data

Country of material origin

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
