Incite Concealed Adjustable with Remote HP/Combi or Remote GP

Verified by manufacturer 10 months ago

INC.A1.BV.21 - Concealed adjustable with remote HP/Combi

Elisa™ Variant:

Concealed adjustable shower with remote HP/Combi or remote GP.

Jump to:
+44 (0)1959 560003 Website

Application

  • INC.A1.BV.21: Suitable for high pressure water systems.
  • INC.A2.BV.21: Suitable for low pressure water systems/gravity pumped.

Description

With proven digital technology, this is a premium dual outlet system that guarantees accuracy, safety and personal convenience every time.


Wi-Fi enabled, its smart benefits include voice activation and one touch mobile app control for either the handset or wall fixed drencher head. A water saving eco-mode can be set for the shower at installation and the app dashboard shows details of water usage to help monitor family showering time and costs. For both shower outlets, the robust, high quality shower kit, further enhances a luxurious showering experience.


Features and benefits:

  • Wifi, mobile app, google home and Amazon Alexa enable the user to control their shower remotely.
  • Multiple showers can be controlled from one app.
  • Safe and satisfactory thermostatically controlled showering with adjustable maximum temperature and push button one start control.
  • LED display showing that the chosen temperature has been reached.
  • Boost button for a powerful showering performance.

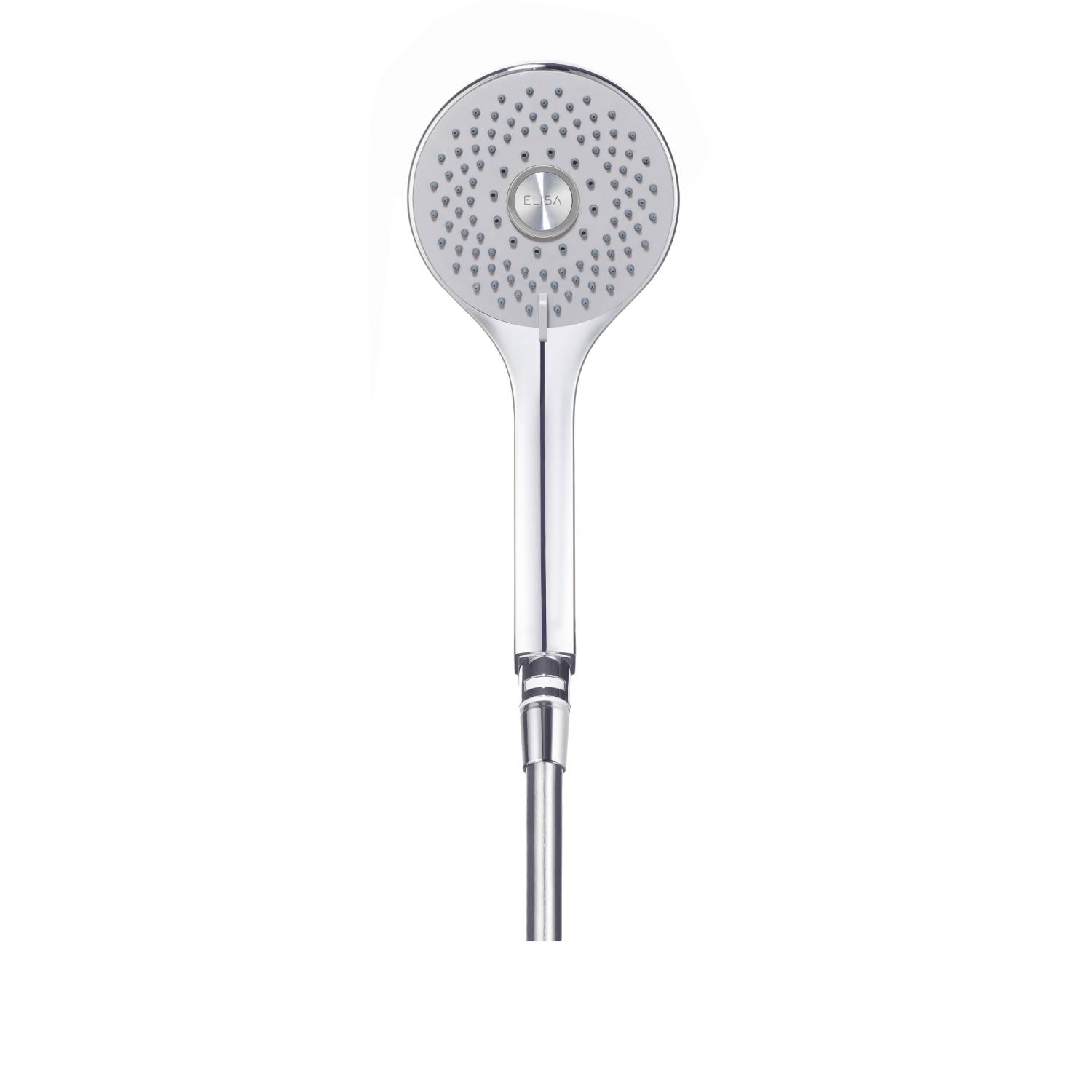

  • 130 mm Vita handset including three spray patterns and pinch grip slider.

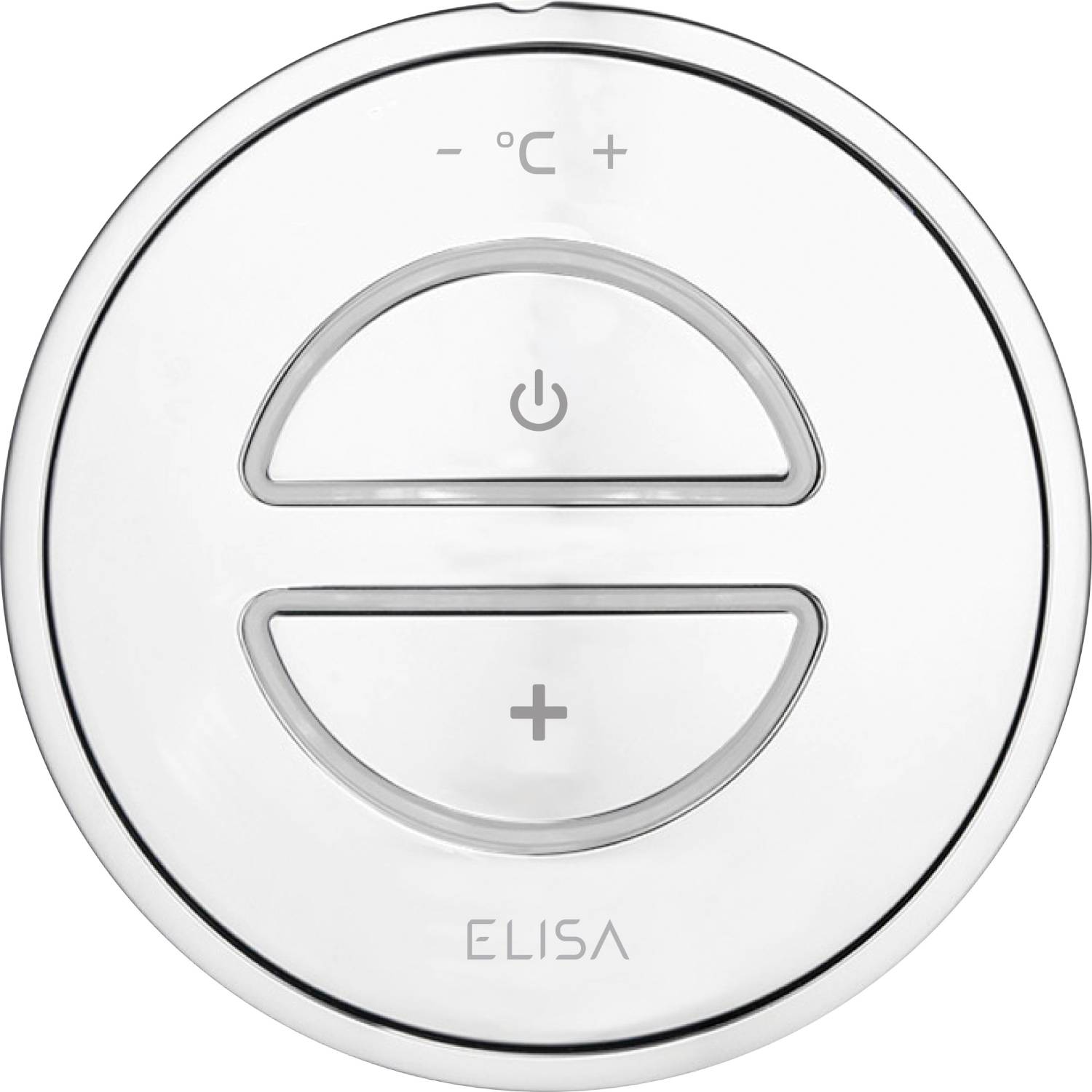

  • Includes wired remote control.

General information

Color

Silver

Guidance for specification option:

Chrome.

Finish

Gloss

Material

Metal

Plastic

Shape

Other

Length

1500 mm

Guidance for specification option:

Hose length.

Width

130 mm

Guidance for specification option:

Handset.

Warranty description

Five year

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/41 Shower heads

N13/375 Shower units

N13/40 Shower units

Specification data - Shower fittings package

Form

Concealed wall-mounted shower mixer valve, flexible hose, spray handset and sliding rail kit.

Materials

-

Body

Metal and plastic.

Finish and colour

Gloss chrome.

Flow rate (maximum)

8—16 L/min.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Minimum: 5°C.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Remote control

Remote HP/Combi - 70 x 25 x 70 mm.

HoseLength

1500 mm.

Hose

Plastic.

Shower head

130 mm.

Manufacturer guidance

Handset, shower head.

Length

700 mm.

Controller

93 x 42 x 93 mm.

Manufacturer guidance

Controller / valve unit dimensions.

Width x depth x height.

Weight

3.444 kg.

Bar

1—7 bar.

Manufacturer guidance

Min-max.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Thermostatic Valve

Digital valve assembly.

Divert

No.

Electrical requirements

240 V.

Power Levels

Two.

Cable entry

Rear.

Water supply

Rear.

Spray Patterns

Three.

Manufacturer guidance

Handset Spray Patterns.

Sustainability data

Contains Red List materials

No

Country of product manufacture

China
