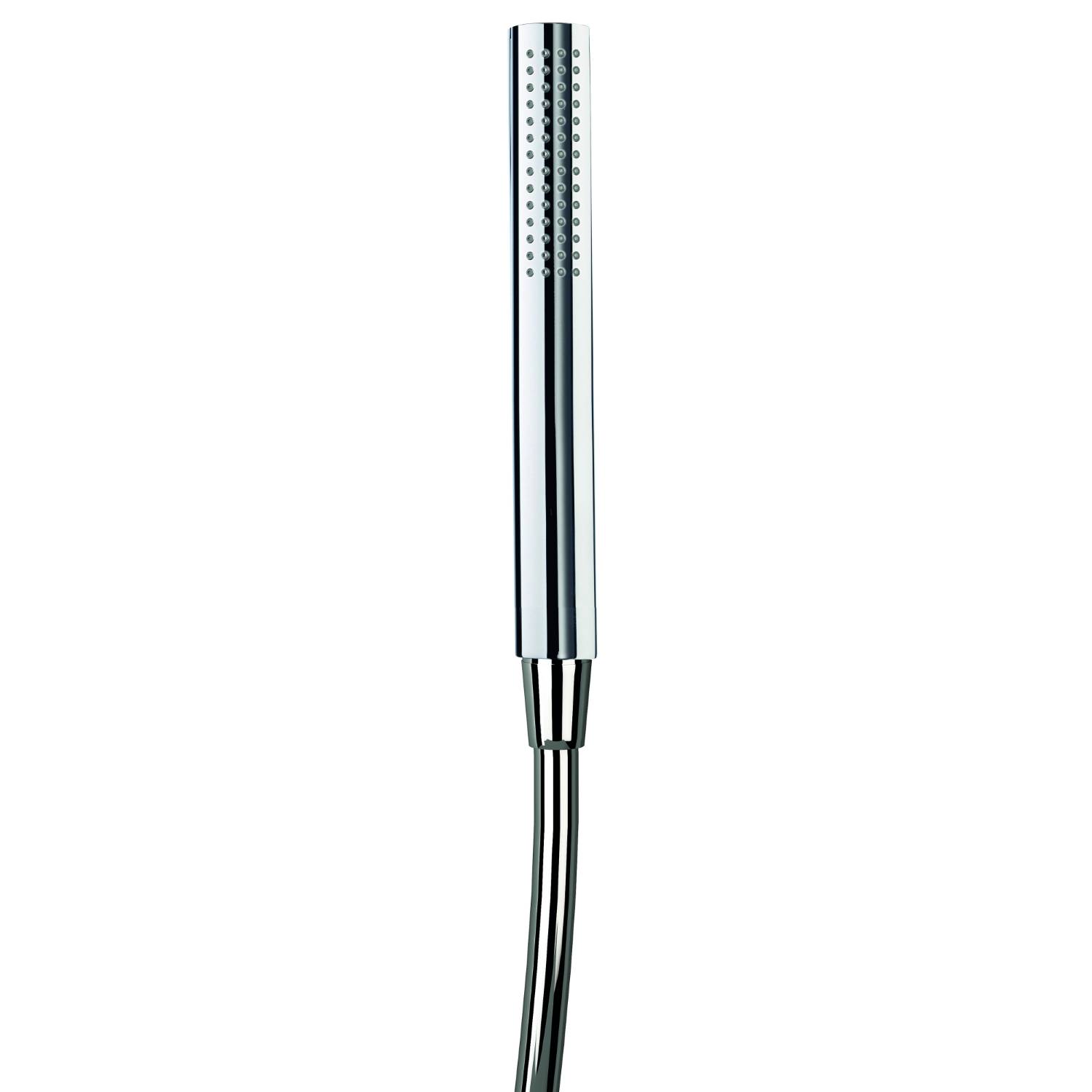

INC.A1.BV.HSBTX.21 - Divert Concealed Hand Shower with Bath and Remote HP/Combi
Divert concealed hand shower with bath and remote HP/Combi or remote GP.
With proven digital technology, this is a premium dual outlet system that guarantees accuracy, safety and personal convenience every time.
Wi-Fi enabled, its smart benefits include voice activation and one touch mobile app control for either the handset or wall fixed drencher head. A water saving eco-mode can be set for the shower at installation and the app dashboard shows details of water usage to help monitor family showering time and costs. For both shower and bath fill, the robust, high-quality shower and bath mixer tap, further enhances a luxurious showering or bathing experience.
Features and benefits:
Color | Silver Guidance for specification option: Chrome. |
Finish | Gloss |
Material | Metal Plastic |
Shape | Other |
Length | 1500 mm Guidance for specification option: Hose length. |
Warranty description | Five year |
Uniclass | |
CAWS | N13/41 Shower heads N13/375 Shower units N13/40 Shower units |
Form | Concealed hand shower with bath and flexible hose. |
Materials | |
Body | Metal and plastic. |
Finish and colour | Gloss chrome. |
Flow rate (maximum) | 8—16 L/min. |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum: 5°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Remote control | Remote HP/Combi - 70 x 25 x 70 mm. |
HoseLength | 1500 mm. |
Hose | Plastic. |
Bath filler | 25 x 70 mm. Guidance for specification option: Depth x diameter. |
Controller | 93 x 42 x 93 mm. Manufacturer guidanceController / valve unit dimensions. Width x depth x height. |
Weight | 5.594 kg. |
Bar | 1—7 bar. Manufacturer guidanceMin-max. |
InletConnectionSize | 15 mm push fit. |
OutletConnectionSize | 15 mm push fit. |
Thermostatic Valve | Digital valve assembly. |
Divert | Yes. |
Electrical requirements | 240 V. |
Power Levels | One. |
Cable entry | Rear. |
Water supply | Rear. |
Spray Patterns | One. Manufacturer guidanceHandset Spray Patterns. |
Contains Red List materials | No |
Country of product manufacture | China |
