Industrial Drains
Verified by manufacturer 28 days ago
726.402.110 - Fixed height
726.402.110 - Fixed height
Drains for commercial and industrial applications.
Application
For concrete, tiled, epoxy or vinyl floors in:
- Industrial areas.
- Commercial kitchens.
- Supermarkets, restaurants, airports, etc.
Description

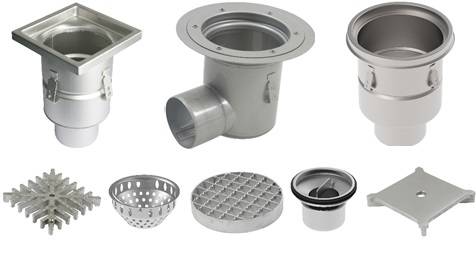

Square or circular floor drains for use with concrete, tiled, epoxy or vinyl floors. Comes with removable water trap, filter basket and sand bucket.
Features and benefits:
- Square or circular reinforced frame.
- Vertical or horizontal outlet.
- Flow capacities from 3.3-7.8 L/s.
- The adjustable versions are suitable for floors with a liquid waterproofing membrane, sheet waterproofing membrane or no waterproofing membrane.
- Filter unit for solid waste collection.
- 20 mm frame height, impervious filled.
- Trap and filter basket removable for cleaning and maintenance.
- Manufactured from stainless steel grade 1.4301 (AISI 304) and 1.4404 (AISI 316L).
- Load class according to BS EN 1253.
General information
Color | Silver |
Material | Steel Stainless steel |
Shape | Square Guidance for specification option:
Circle Guidance for specification option:
|
Length | 200 mm 300 mm Manufacturer guidanceRound/ Square. |
Width | 200 mm 300 mm Manufacturer guidanceRound/ Square. |
Uniclass | |
CAWS | R11/315 Floor drains R11/5 Floor drains |
Specification data - Floor gullies
Body | |

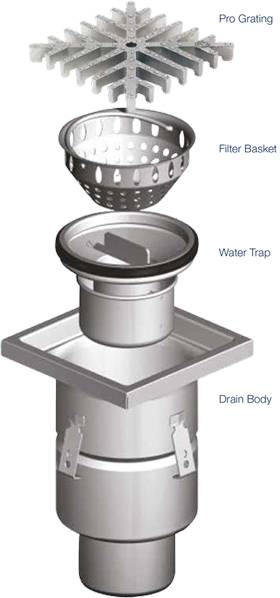

Configuration | Guidance for specification option: The fixed-height drains comprise a drain, grating, filter basket and water trap. The adjustable drains comprise a grating, upper part, filter basket, water trap, and lower part. |
Material | Stainless steel grade 1.4301 (AISI 304).Guidance for specification option: Standard. Stainless steel grade 1.4404 (AISI 316L).Guidance for specification option: To specify insert suffix S to the part number, e.g. 110.300.050 S. Consult manufacturer for details. |
Cover or grating | |
Cover or grating type | 790.168.000.10.Guidance for specification option: Square slot grating; size: 170 x 170 mm, material: stainless steel: Load 5000 k.g. 790.168.000.22.Guidance for specification option: Square mesh grating; size: 168 x 168 mm, material: stainless steel: Load 1350 k.g. 790.168.000.25.Guidance for specification option: Square ladder grating; size: size: 168 x 168 mm, material: stainless steel: Load 5000 k.g. 790.168.000.28.Guidance for specification option: Square ladder grating; 8 mm thick - fully welded; size: 168 x 168 mm, material: stainless steel: Load 12 000 k.g. 790.168.000.60.Guidance for specification option: Square HygienicPro® grating; size: 170 x 170 mm, material: stainless steel grade 1.4308 (304C); Load 7000 k.g. |
Outlet | Horizontal one-part fixed. |
Floor type | For concrete, resin and tiled floors. |
OutletDiameter | 110 mm. |
Drain | Industrial drain - LOW. |
Frame | Square 200 x 200 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Denmark |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
